Dorman 904-824 Vacuum Pump
OE Quality 60-Day Returns
Dorman

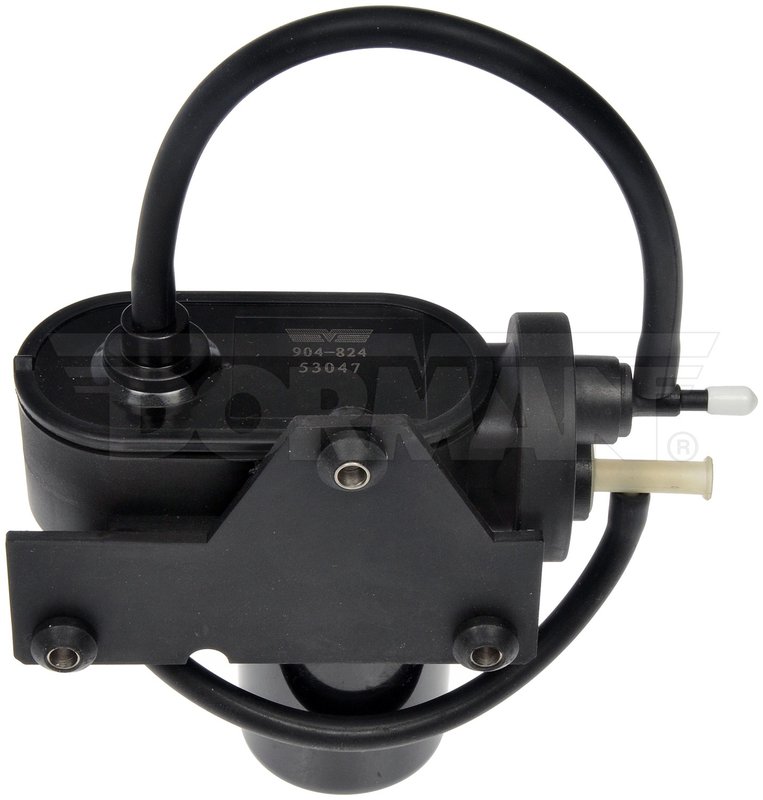

Dorman 904-824 Vacuum Pump

Brand Dorman 904-824
Connector Gender Male
Connector Shape Eliptical
Gasket Or Seal Included No
Housing Material Plastic
Inside Diameter 0.15 in
Mounting Hardware Included No
Package Contents 1 Vacuum Pump
Pulley Included No
Relief Valve Yes
Terminal Quantity 2
Terminal Type Pin
Vacuum Port Diameter 0.163 in
Vacuum Pump Connector Barbed
Vacuum Pump Drive System Electric Motor Drive
Vacuum Pump Inlet 3/16 in
Vacuum Pump Outlet 1/4 in
Fits Chevrolet and GMC · 44 vehicles

OE fit and function. Direct replacement vacuum pump for reliable operation.

Durable materials. Plastic housing is built for dependable service.

Electric motor drive. Provides vacuum for vehicle functions that depend on it.

Cross-references Cardone Reman 64-1504, Standard Ignition VCP113 and 15106862 for the same application. See all 5.

$173.58Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $173.58
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Vacuum Pump options

Dorman 904-824 Vacuum Pump for GM Vans

Dorman 904-824 is a replacement electric vacuum pump built to match the original equipment pump’s fit and function. It is made with durable plastic housing and a relief valve for dependable operation of vacuum-operated vehicle systems. Compatible With 2006-2016 Chevrolet Express 2500, 2006-2016 Chevrolet Express 3500, 2006-2016 GMC Savana 2500, and 2006-2016 GMC Savana 3500 with electrically driven applications.

Key Features

  • OE-style replacement vacuum pump for vacuum system service
  • Electric motor drive for electrically driven applications
  • Plastic housing for lightweight, durable construction
  • Relief valve included for system protection
  • Male elliptical connector with 2 terminals and pin-type connection
  • Barbed vacuum pump connector with 3/16 in inlet and 1/4 in outlet
  • Fits Chevrolet Express and GMC Savana vans across 2006-2016 model years

Detailed Description

This Dorman vacuum pump is engineered as a direct replacement for the original equipment unit, with the same fit and function expected in GM van vacuum systems. Part number 904-824 is built for electrically driven operation and uses a barbed connector layout with a single vacuum port to support vacuum-operated vehicle functions. The design includes a relief valve and a durable plastic housing to help maintain consistent performance in service. This part cross-references Cardone Reman 64-1504 for the same application.

What This Vacuum Pump Helps Address

  • Loss of vacuum supply to vehicle-operated systems
  • Vacuum pump noise or inconsistent pump operation
  • Faults related to an inoperative electric vacuum pump
  • Reduced performance in vacuum-dependent vehicle functions
  • Replacement needs on high-mileage Chevrolet Express and GMC Savana vans

Installation Notes and Tips

Verify connector style, inlet and outlet sizing, and electrical terminal layout before installation. This pump does not include mounting hardware, a gasket, or a seal, so confirm the vehicle’s service requirements before beginning the repair. Match the application to electrically driven GM van configurations only, and compare the original unit to Dorman 904-824 before installation.

Quality Assurance

Dorman manufactures this replacement pump to match original equipment fit and function using durable materials for reliable service. It is intended for direct replacement use in supported Chevrolet Express and GMC Savana applications.

Related reading

This part fits 44 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2016ChevroletExpress 25006.6LV8N/AElectrically Driven
2016ChevroletExpress 35006.6LV8N/AElectrically Driven
2016GMCSavana 25006.6LV8N/AElectrically Driven
2016GMCSavana 35006.6LV8N/AElectrically Driven
2015ChevroletExpress 25006.6LV8N/AElectrically Driven
2015ChevroletExpress 35006.6LV8N/AElectrically Driven
2015GMCSavana 25006.6LV8N/AElectrically Driven
2015GMCSavana 35006.6LV8N/AElectrically Driven
2014ChevroletExpress 25006.6LV8N/AElectrically Driven
2014ChevroletExpress 35006.6LV8N/AElectrically Driven
2014GMCSavana 25006.6LV8N/AElectrically Driven
2014GMCSavana 35006.6LV8N/AElectrically Driven
2013ChevroletExpress 25006.6LV8N/AElectrically Driven
2013ChevroletExpress 35006.6LV8N/AElectrically Driven
2013GMCSavana 25006.6LV8N/AElectrically Driven
2013GMCSavana 35006.6LV8N/AElectrically Driven
2012ChevroletExpress 25006.6LV8N/AElectrically Driven
2012ChevroletExpress 35006.6LV8N/AElectrically Driven
2012GMCSavana 25006.6LV8N/AElectrically Driven
2012GMCSavana 35006.6LV8N/AElectrically Driven
2011ChevroletExpress 25006.6LV8N/AElectrically Driven
2011ChevroletExpress 35006.6LV8N/AElectrically Driven
2011GMCSavana 25006.6LV8N/AElectrically Driven
2011GMCSavana 35006.6LV8N/AElectrically Driven
2010ChevroletExpress 25006.6LV8N/AElectrically Driven
2010ChevroletExpress 35006.6LV8N/AElectrically Driven
2010GMCSavana 25006.6LV8N/AElectrically Driven
2010GMCSavana 35006.6LV8N/AElectrically Driven
2009ChevroletExpress 25006.6LV8N/AElectrically Driven
2009ChevroletExpress 35006.6LV8N/AElectrically Driven
2009GMCSavana 25006.6LV8N/AElectrically Driven
2009GMCSavana 35006.6LV8N/AElectrically Driven
2008ChevroletExpress 25006.6LV8N/AElectrically Driven
2008ChevroletExpress 35006.6LV8N/AElectrically Driven
2008GMCSavana 25006.6LV8N/AElectrically Driven
2008GMCSavana 35006.6LV8N/AElectrically Driven
2007ChevroletExpress 25006.6LV8N/AElectrically Driven
2007ChevroletExpress 35006.6LV8N/AElectrically Driven
2007GMCSavana 25006.6LV8N/AElectrically Driven
2007GMCSavana 35006.6LV8N/AElectrically Driven
2006ChevroletExpress 25006.6LV8N/AElectrically Driven
2006ChevroletExpress 35006.6LV8N/AElectrically Driven
2006GMCSavana 25006.6LV8N/AElectrically Driven
2006GMCSavana 35006.6LV8N/AElectrically Driven
Directly replaces or cross-references 5 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Cardone Reman — 64-1504Standard Ignition — VCP113151068628946690910VDV24
