Dorman 906-151 Wiper Motor Pulse Board Module

Overview of Dorman Wiper Motor Pulse Board Module 906-151

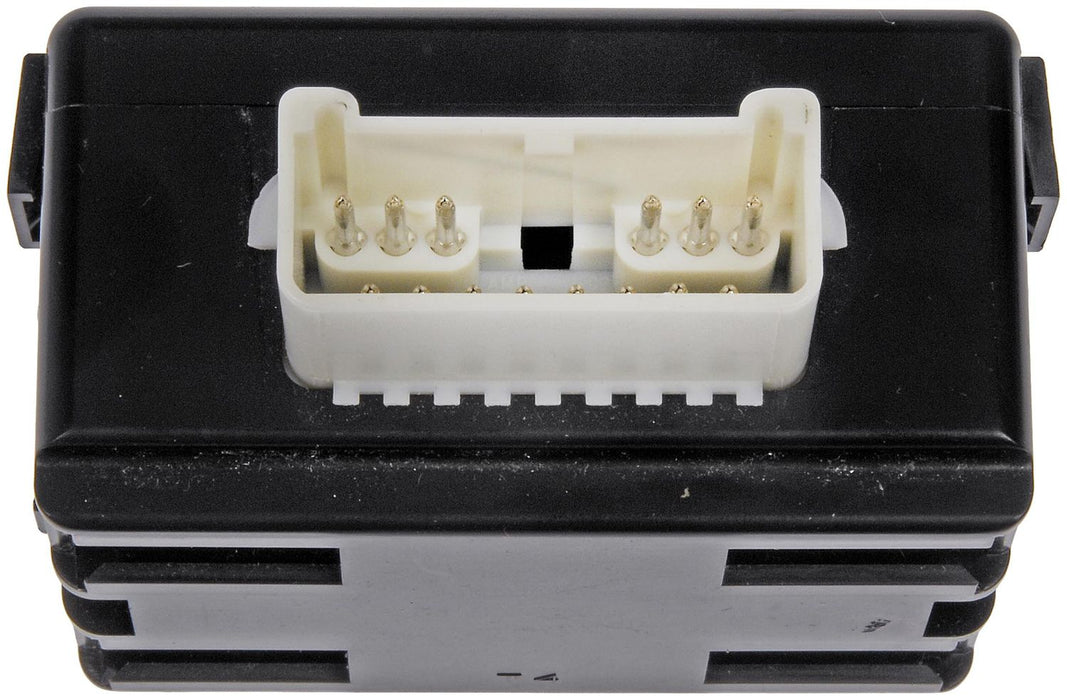

The Dorman 906-151 Wiper Motor Pulse Board Module is designed to restore proper wiper function for select Ford vehicles. This black plastic module includes a protective cover and is engineered specifically for front wiper pulse control in Ford E-Series models.

• Color/Finish: Black
• Material: Durable plastic construction
• Includes protective cover for enhanced durability
• Package contains front wiper pulse board module
• Compatible with multiple Ford E-Series vans and trucks

Detailed Product Description

This Dorman wiper motor pulse board module (part number 906-151) is a critical component for the front windshield wiper system on Ford E-150, E-150 Club Wagon, E-150 Econoline, E-150 Econoline Club Wagon, E-250, E-250 Econoline, E-350 Club Wagon, E-350 Econoline Club Wagon, and E-350 Super Duty models. Constructed from durable black plastic, the module includes a cover to protect the internal circuitry from moisture and debris, ensuring reliable operation. The pulse board module controls the intermittent wiper function by regulating the electrical pulses sent to the wiper motor, enabling consistent and precise wiper movement.

Common Issues Addressed by This Module

• Intermittent wiper function failure or irregular wiper speeds
• Wipers not responding to control switch inputs
• Wiper motor running continuously without pause
• Erratic or inconsistent wiper blade movement
• Electrical faults causing wiper system malfunction

Installation Notes and Tips

• Ensure vehicle ignition is off before beginning installation
• Disconnect the battery to prevent electrical shorts
• Access the wiper motor assembly to remove the faulty pulse board module
• Carefully install the Dorman 906-151 module, ensuring the cover is properly seated
• Test wiper operation before reassembling all components

Quality Assurance and Warranty

Dorman manufactures this wiper motor pulse board module to meet or exceed OEM specifications for fit, form, and function. The part undergoes quality control testing to ensure reliable performance in Ford E-Series vehicles. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in materials and workmanship for this part number 906-151.
