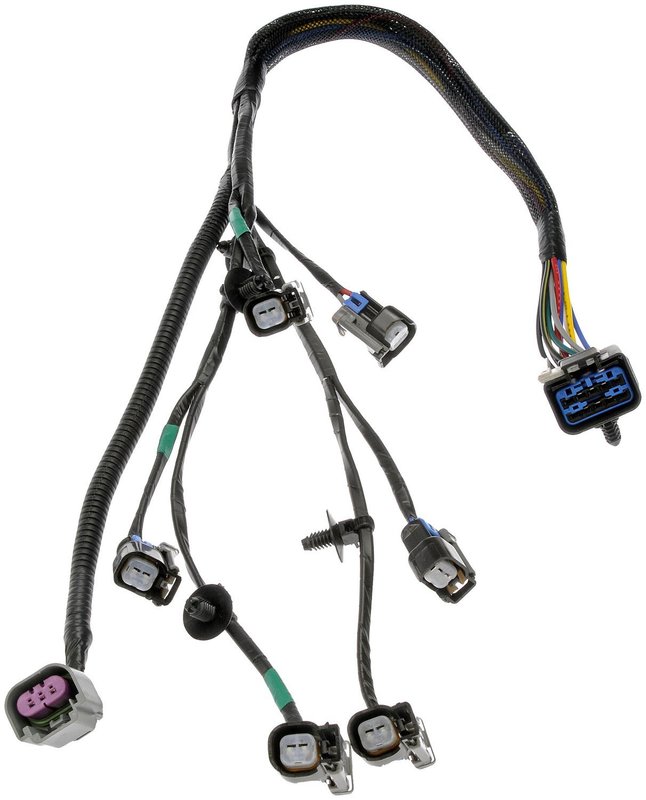

Dorman 911-089 Fuel Management Wiring Harness
Dorman 911-089 Fuel Rail Wiring Harness
Dorman 911-089 is a fuel management wiring harness built to match the fit and function of the original harness on specified vehicles. It is engineered for reliable performance and durability in fuel rail wiring applications, with copper terminals and a 17-gauge wire design.
Key Features
- Direct replacement fuel management wiring harness for specified applications
- Matches original fit and function for OE-style serviceability
- 33.1-inch length for application-specific routing
- 17-gauge wire construction for fuel rail circuit use
- 10-wire harness layout with female terminal end 1
- Copper terminal material for dependable electrical contact
Application Details
This Dorman fuel rail wiring harness, part number 911-089, is made for Chrysler and Dodge minivan applications that use the original-style fuel management wiring layout. It fits 2001-2003 Chrysler Town & Country, 2001-2003 Chrysler Voyager, 2001-2003 Dodge Caravan, 2001-2003 Dodge Grand Caravan, and 2001-2002 Chrysler Grand Voyager. This part cross-references Chrysler 4868408AC for the same application.
What It Helps Fix
- Damaged or brittle fuel rail wiring
- Intermittent electrical connection at the fuel management circuit
- Corrosion at the terminal ends
- Harness routing issues caused by a worn original assembly
- Fuel system electrical faults related to the original wiring harness
Installation Notes and Tips
Verify connector style, wire routing, and harness length against the original part before installation. Inspect nearby fuel system connectors and terminals for heat damage, corrosion, or broken locking features so the replacement harness can seat correctly. Confirm vehicle application by year, make, and model before ordering.
Quality Assurance
Dorman designs this fuel management wiring harness to match original harness fit and function on the listed applications. The copper terminals and application-specific construction support consistent electrical performance in fuel rail wiring service.
| Brand | Dorman |
|---|---|
| Part Number | 911-089 |
| End 1 Terminal Gender | Female |
| Length | 33.1 |
| Package Contents | Fuel Rail Wiring |
| Terminal Material | Copper |
| Wire Gauge Measurement | 17 |
| Wire Quantity | 10 |
This part fits 20 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2003 | Chrysler | Town & Country | 3.8L | V6 | N/A | |
| 2003 | Chrysler | Town & Country | 3.3L | V6 | N/A | |
| 2003 | Chrysler | Voyager | 3.3L | V6 | N/A | |
| 2003 | Dodge | Caravan | 3.3L | V6 | N/A | |
| 2003 | Dodge | Grand Caravan | 3.8L | V6 | N/A | |
| 2003 | Dodge | Grand Caravan | 3.3L | V6 | N/A | |
| 2002 | Chrysler | Grand Voyager | 3.8L | V6 | N/A | |
| 2002 | Chrysler | Town & Country | 3.8L | V6 | N/A | |
| 2002 | Chrysler | Town & Country | 3.3L | V6 | N/A | |
| 2002 | Chrysler | Voyager | 3.3L | V6 | N/A | |
| 2002 | Dodge | Caravan | 3.3L | V6 | N/A | |
| 2002 | Dodge | Grand Caravan | 3.8L | V6 | N/A | |
| 2002 | Dodge | Grand Caravan | 3.3L | V6 | N/A | |
| 2001 | Chrysler | Grand Voyager | 3.8L | V6 | N/A | |
| 2001 | Chrysler | Town & Country | 3.8L | V6 | N/A | |
| 2001 | Chrysler | Town & Country | 3.3L | V6 | N/A | |
| 2001 | Chrysler | Voyager | 3.3L | V6 | N/A | |
| 2001 | Dodge | Caravan | 3.3L | V6 | N/A | |
| 2001 | Dodge | Grand Caravan | 3.8L | V6 | N/A | |
| 2001 | Dodge | Grand Caravan | 3.3L | V6 | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
