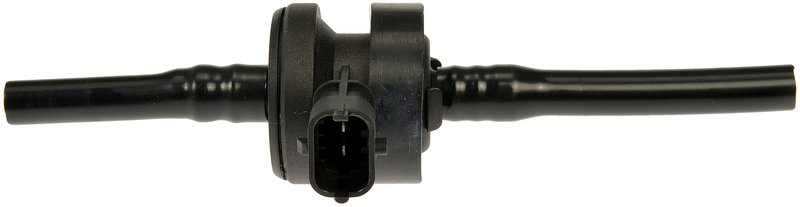

Dorman 913-430 Vapor Canister Purge Valve

Overview of Dorman Vapor Canister Purge Valve 913-430

The Dorman Vapor Canister Purge Valve 913-430 is designed for emission control systems in select Ford and Lincoln vehicles. This component plays a critical role in managing fuel vapor flow, helping maintain proper engine performance and reduce emissions in models like the Ford Escape, Fiesta, Focus, and Lincoln MKC.

• Connector hose inside diameter: 8 mm
• Two vacuum ports with 10 mm diameter each
• Plastic housing for durability and corrosion resistance
• Blade terminal type with two male terminals
• One female rectangular connector
• Includes 1 purge valve, 2 straight connectors, and 2 right angle connectors
• Length of 170 mm for precise fitment

Detailed Product Description

The Dorman 913-430 vapor canister purge valve is engineered to regulate the flow of fuel vapors from the charcoal canister to the intake manifold. Its plastic housing ensures resistance to heat and chemical exposure common in engine compartments. The valve features a single female rectangular connector with two male blade terminals, providing secure electrical connections. With two vacuum ports measuring 10 mm outside diameter and an 8 mm inlet inside diameter, this valve supports efficient vapor flow control. The package includes multiple connector options—two straight and two right angle connectors—to accommodate various installation needs. Measuring 170 mm in length, the valve is designed for a precise fit in compatible Ford and Lincoln models.

Compatible Vehicles and Applications

This vapor canister purge valve is compatible with the following vehicles:

• Ford Escape
• Ford Fiesta
• Ford Focus
• Lincoln MKC

It is specifically designed to meet the emission control requirements of these models, ensuring proper vapor management and compliance with environmental standards.

Common Issues Addressed by This Purge Valve

• Check engine light triggered by faulty purge valve operation
• Rough idling or engine hesitation due to vapor flow disruption
• Increased emissions from uncontrolled fuel vapor release
• Failed emissions tests related to evaporative system leaks
• Fuel odor caused by vapor canister purge valve malfunction

Installation Notes and Tips

• Ensure the vehicle is cool and ignition is off before installation
• Use the included straight and right angle connectors for optimal hose routing
• Verify connector orientation: female rectangular connector with male blade terminals
• Check vacuum port connections for secure fit to prevent leaks
• No mounting hardware is included; reuse existing brackets or hardware as needed

Quality Assurance and Warranty

Dorman manufactures this vapor canister purge valve to meet or exceed OEM specifications for fit, form, and function. The plastic housing and terminal design provide durability under typical operating conditions. While specific warranty details may vary, Dorman products generally come with a limited warranty covering defects in materials and workmanship to ensure reliability and customer confidence.
