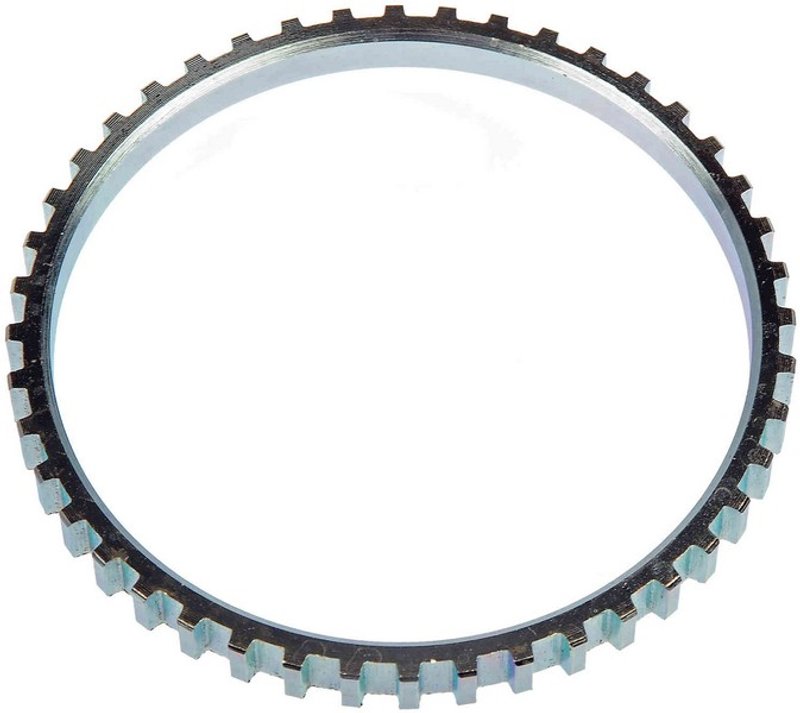

Dorman 917-532 ABS Wheel Speed Sensor Tone Ring

ABS Tone Ring for Ford Escape and Mazda Tribute

Dorman 917-532 is an ABS wheel speed sensor tone ring that directly replaces the original equipment ring on select Ford Escape, Mazda Tribute, and Mercury Mariner applications. It is built from steel and matches the OE-style tooth count and dimensions for a direct-fit repair on the front or rear axle, depending on vehicle configuration.

Key Features

• Steel construction for brake system service applications
• 44-tooth design to match the original sensor signal pattern
• Inside diameter: 3.07 in.; outside diameter: 3.46 in.
• Width: 0.3 in. for OE-style fitment
• Direct replacement for select Ford Escape, Mazda Tribute, and Mercury Mariner models
• Part number 917-532 for easy identification

Product Details

This ABS wheel speed sensor tone ring is used to restore the signal pattern read by the wheel speed sensor, which is critical for ABS operation. Dorman 917-532 is a direct replacement for the original tone ring on select 2001-2012 Ford Escape, 2001-2007 Mercury Mariner, and 2001-2006 Mazda Tribute vehicles, with fitment varying by position. This part cross-references TechSmart R96003 for the same application.

Common Issues It Can Help Address

• ABS warning light caused by a damaged or missing tone ring
• Erratic wheel speed sensor readings
• ABS activation concerns related to a distorted tooth pattern
• Corrosion or wear on the original wheel speed sensor ring
• Brake system fault codes tied to wheel speed signal loss

Installation Notes and Tips

Verify the vehicle year, make, model, and wheel position before ordering. This tone ring is used on front left, front right, rear left, and rear right applications depending on the vehicle listed in the fitment data. Inspect the wheel speed sensor and surrounding components during service to confirm the root cause of the ABS concern. For 2001-2012 Ford Escape, 2008-2011 Mazda Tribute, and 2005-2011 Mercury Mariner applications, confirm the exact axle position before installation.

Quality Assurance

Dorman manufactures this replacement tone ring as a direct OE-style service part for select brake and ABS repairs. The steel construction and application-specific dimensions support a precise replacement for the original ring on the listed vehicles.

Compatible Vehicles

• Fits 2001-2012 Ford Escape, front left.
• Fits 2001-2012 Ford Escape, front right.
• Fits 2001-2007 Ford Escape, rear left.
• Fits 2001-2007 Ford Escape, rear right.
• Fits 2001-2006 Mazda Tribute, front left.
• Fits 2001-2006 Mazda Tribute, front right.
• Fits 2001-2004 Mazda Tribute, rear left.
• Fits 2001-2004 Mazda Tribute, rear right.
• Fits 2005-2011 Mercury Mariner, front left.
• Fits 2005-2011 Mercury Mariner, front right.
• Fits 2005-2007 Mercury Mariner, rear left.
• Fits 2005-2007 Mercury Mariner, rear right.
• Fits 2008-2011 Mazda Tribute, front left.
• Fits 2008-2011 Mazda Tribute, front right.
