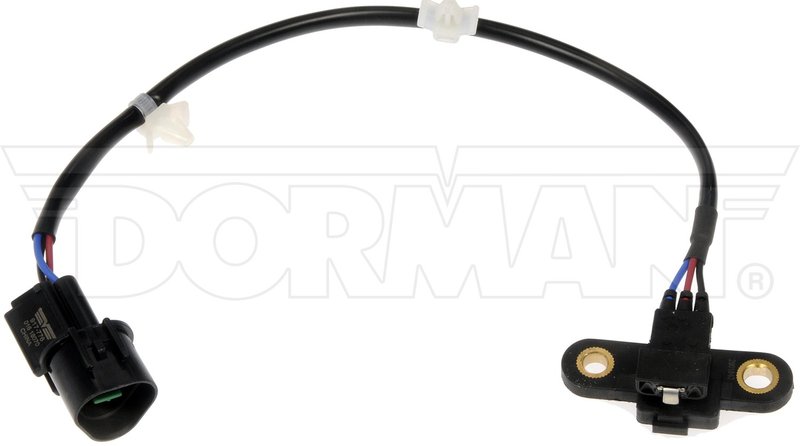

Dorman 917-776 Engine Crankshaft Position Sensor

Reliable Engine Crankshaft Position Sensor for Chrysler, Dodge, and Mitsubishi

The Dorman 917-776 Engine Crankshaft Position Sensor is designed to provide accurate and consistent engine timing data for select Chrysler, Dodge, and Mitsubishi vehicles. This sensor ensures proper engine performance by monitoring crankshaft position and speed.

• Wiring harness length: 13 inches for flexible installation
• Blade terminal type with 3 male terminals for secure electrical connection
• Single female triangular connector for precise fitment
• Two mounting holes included with mounting bracket for stable sensor placement
• Durable plastic sensor body with a diameter of 0.71 inches
• Wiring harness and mounting bracket included for complete installation

Detailed Description of the Dorman 917-776 Sensor

This engine crankshaft position sensor from Dorman is engineered to meet the specific requirements of Chrysler, Dodge, and Mitsubishi models such as the Eclipse, Sebring, and Stratus. The sensor features a 13-inch wiring harness that allows for convenient routing within the engine bay. Its blade terminal type with three male terminals ensures a reliable electrical connection, while the single female triangular connector matches the original equipment specifications. The sensor body is constructed from durable plastic with a compact 0.71-inch diameter, designed to withstand engine environment conditions. Included mounting hardware simplifies installation and secures the sensor firmly in place.

Common Applications and Issues Addressed

• Restores accurate crankshaft position signal for proper engine timing
• Resolves engine misfires caused by faulty sensor readings
• Eliminates stalling or rough idling related to sensor failure
• Prevents check engine light triggers associated with crankshaft sensor faults
• Improves overall engine performance and fuel efficiency

Installation Notes and Tips

When installing the Dorman 917-776 sensor, ensure the mounting bracket is securely fastened using the two provided mounting holes. Verify the wiring harness length of 13 inches is sufficient for your vehicle’s engine bay layout. Connect the blade terminals firmly to avoid electrical issues, and confirm the triangular female connector is properly seated. It is recommended to disconnect the battery before installation to prevent electrical shorts. After installation, clear any diagnostic trouble codes and perform a test drive to confirm proper sensor operation.

Quality Assurance and Warranty Information

Dorman manufactures this crankshaft position sensor to meet or exceed OEM standards for fit, form, and function. The sensor is made from quality materials including a durable plastic body and reliable electrical connectors. This part includes a warranty that covers defects in material and workmanship, providing confidence in its long-term performance for Chrysler, Dodge, and Mitsubishi vehicles.
