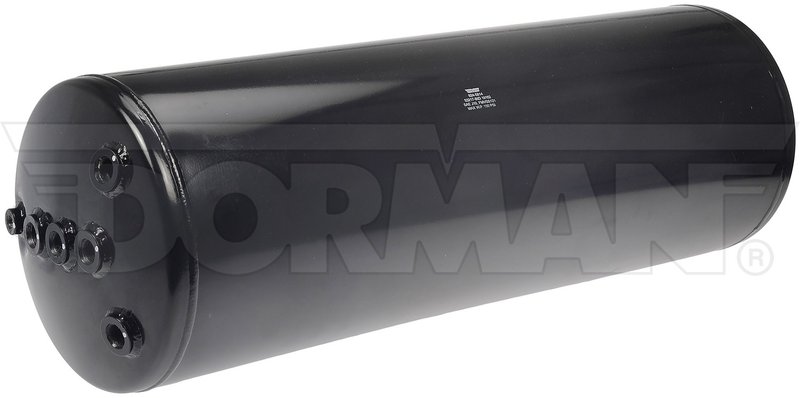

Dorman 924-5814 Air Brake Reservoir

Reliable Air Brake Reservoir for Heavy-Duty Vehicles

The Dorman 924-5814 air brake reservoir is engineered to provide consistent air storage for commercial trucks and heavy-duty vehicles. Constructed from durable carbon steel, this black air tank is designed to withstand demanding operating conditions while maintaining optimal air pressure.

• Material: Carbon steel for strength and durability
• Diameter: 11.25 inches, Length: 34 inches
• Maximum working pressure: 150 psi
• Volume capacity: 53 liters
• Port quantity: 6 with M22 and 1/4 inch thread sizes
• Mounting type: Strap on (mounting hardware not included)
• Material thickness: 0.13 inches for enhanced structural integrity

Durable Construction and Precise Specifications

This air brake reservoir features a single tank chamber designed to store compressed air efficiently for air brake systems commonly found on commercial trucks such as Freightliner, Kenworth, and Peterbilt models. The 6 ports include five M22 threaded connections with a 1.5 mm pitch and one 1/4 inch NPT port, allowing for versatile air line configurations. The strap-on mounting type ensures secure installation on compatible chassis frames, although mounting hardware is not included. The carbon steel construction with a 0.13-inch thickness provides resistance to corrosion and mechanical stress, supporting a maximum working pressure of 150 psi to meet rigorous braking demands.

Applications and Problem Solving

• Replaces worn or damaged air brake reservoirs on heavy-duty trucks
• Restores proper air storage capacity to maintain brake system performance
• Addresses air leaks caused by corrosion or physical damage to the tank
• Supports air brake systems requiring multiple port connections for air distribution
• Suitable for vehicles needing a 53-liter capacity air tank with specific port threading

Installation Notes and Tips

Ensure compatibility with your vehicle’s air brake system by verifying port thread sizes and mounting type. The Dorman 924-5814 requires strap-on mounting; confirm that your chassis frame can accommodate this style. Since mounting hardware is not included, source appropriate brackets and fasteners separately. Properly torque all port fittings to prevent air leaks and maintain system integrity. Inspect existing air lines and valves for wear during installation to ensure optimal brake system function.

Quality Assurance and Warranty

Dorman manufactures this air brake reservoir to meet industry standards for durability and performance. The carbon steel construction and precise threading specifications support reliable operation under heavy-duty conditions. While specific warranty details are not provided, Dorman products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or contact the manufacturer for exact warranty terms.
