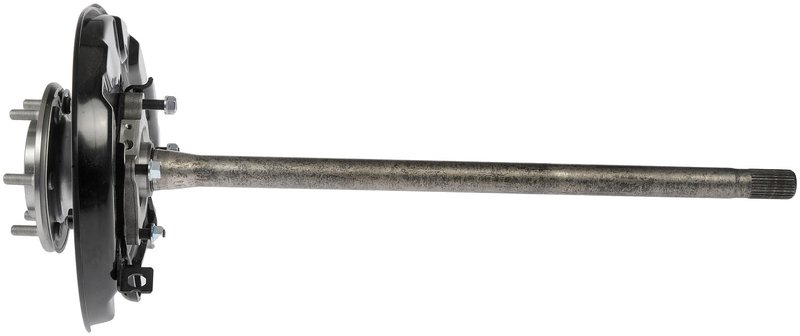

Dorman 926-141 Drive Axle Shaft Assembly - Rear Left

Durable Drive Axle Shaft Assembly for Lexus and Toyota Vehicles

The Dorman 926-141 drive axle shaft assembly is engineered to provide reliable driveline performance for select Lexus and Toyota models. Designed specifically for the 4Runner, FJ Cruiser, and GX470, this axle shaft assembly ensures proper fitment and durability for your vehicle's semi-float differential system.

• Compatible with Lexus 4Runner, Toyota FJ Cruiser, and Lexus GX470
• Wheel bolt pattern size: 6 lug x 139.7 mm
• Includes wheel studs with 12 mm thread diameter and 1.5 thread pitch
• Rust resistant carbon steel construction for extended service life
• Includes axle housing seal, o-ring, brake dust shield, and brake backing plate
• Hub bearing included for integrated assembly
• Inboard and outboard spline quantity: 30 splines each
• Axle shaft diameter: 33.6 mm with a compressed length of 795 mm

Technical Details and Construction

The Dorman 926-141 drive axle shaft assembly is constructed from carbon steel with a rust resistant coating to withstand harsh road conditions and corrosion. It features a semi-float differential case design, which is common in the specified Lexus and Toyota models. The assembly includes both inboard and outboard splines, each with 30 splines, ensuring a secure connection to the differential and wheel hub. The axle shaft diameter measures 33.6 mm, and the overall compressed length is 795 mm, matching OEM specifications for proper fit and function.

This assembly comes complete with essential components such as wheel studs, a hub bearing, axle shaft seal, axle housing seal, o-ring, brake dust shield, and brake backing plate. However, brake hardware is not included. The wheel studs have a thread diameter of 12 mm and a thread pitch of 1.5, compatible with the wheel bolt pattern of 6 lug x 139.7 mm.

Applications and Problem Resolution

This drive axle shaft assembly is designed for use in the following vehicles:

• Lexus 4Runner
• Toyota FJ Cruiser
• Lexus GX470

It addresses common driveline and axle shaft issues such as:

• Worn or damaged axle shafts causing vibration or noise
• Corrosion or rust compromising axle integrity
• Failed wheel studs affecting wheel security
• Leaking axle seals leading to lubricant loss
• Damaged hub bearings causing rough wheel rotation

Installation Notes and Tips

Installation of the Dorman 926-141 drive axle shaft assembly requires proper tools and mechanical knowledge. Ensure the vehicle is securely lifted and supported before removal of the old axle shaft. Verify the wheel bolt pattern and spline counts match the replacement part. Replace any worn or damaged brake hardware separately, as it is not included. Properly torque wheel studs to manufacturer specifications to maintain wheel security. Inspect axle seals and bearings during installation to prevent future leaks or failures.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 926-141 drive axle shaft assembly undergoes rigorous quality control to ensure durability and performance. This part includes a limited warranty covering defects in material and workmanship. Refer to Dorman's warranty policy for specific terms and conditions.
