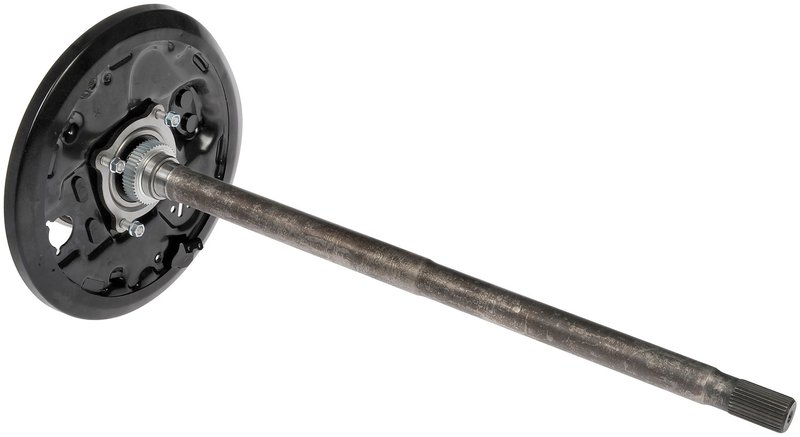

Dorman 926-147 Drive Axle Shaft Assembly - Rear Left

Durable Drive Axle Shaft Assembly for Toyota Tundra

The Dorman 926-147 Drive Axle Shaft Assembly is engineered to meet the specific needs of Toyota Tundra vehicles. Designed with precision and built from carbon steel, this axle shaft assembly offers reliable performance and long-lasting durability for your driveline system.

• Compatible with Toyota Tundra models
• Wheel bolt pattern size: 6 x 139.7 mm
• Includes ABS tone ring for accurate wheel speed sensing
• Rust resistant coating for enhanced corrosion protection
• Wheel studs included with 12 mm thread diameter and 1.5 thread pitch
• Semifloating differential case design for balanced load distribution
• Includes brake dust shield, brake backing plate, axle shaft seal, and hub bearing
• Inboard and outboard spline quantity: 32 splines each
• Shaft diameter: 37.8 mm with a compressed length of 846.5 mm

Technical Details and Construction

This Dorman drive axle shaft assembly (part number 926-147) is constructed from high-quality carbon steel, ensuring strength and resistance to wear. The semifloating differential case design supports the axle shaft under load while allowing for smooth rotation. Both inboard and outboard splines feature 32 teeth, providing a secure fit and efficient torque transfer. The included ABS tone ring integrates seamlessly with your vehicle’s anti-lock braking system for precise wheel speed monitoring.

The assembly also comes with essential components such as the brake dust shield, brake backing plate, axle shaft seal, and hub bearing, which contribute to the overall functionality and protection of the driveline. The rust resistant coating extends the service life by protecting against corrosion, especially in harsh driving conditions.

Applications and Problem Solving

• Replacement for worn or damaged drive axle shafts on Toyota Tundra
• Resolves issues related to axle shaft vibration or noise
• Addresses ABS sensor malfunctions due to faulty tone rings
• Prevents premature wear caused by rust or corrosion
• Restores proper wheel alignment and driveline performance

Installation Notes and Tips

Ensure compatibility with your specific Toyota Tundra model before installation. The axle shaft assembly is not adjustable and should be installed following manufacturer torque specifications. Verify that the wheel bolt pattern size of 6 x 139.7 mm matches your vehicle’s hub. Proper installation of the axle shaft seal and hub bearing is critical to prevent leaks and maintain driveline integrity.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards, providing dependable performance for your Toyota Tundra. This drive axle shaft assembly undergoes rigorous quality control to ensure durability and fitment accuracy. Please refer to Dorman’s warranty policy for specific coverage details related to part number 926-147.
