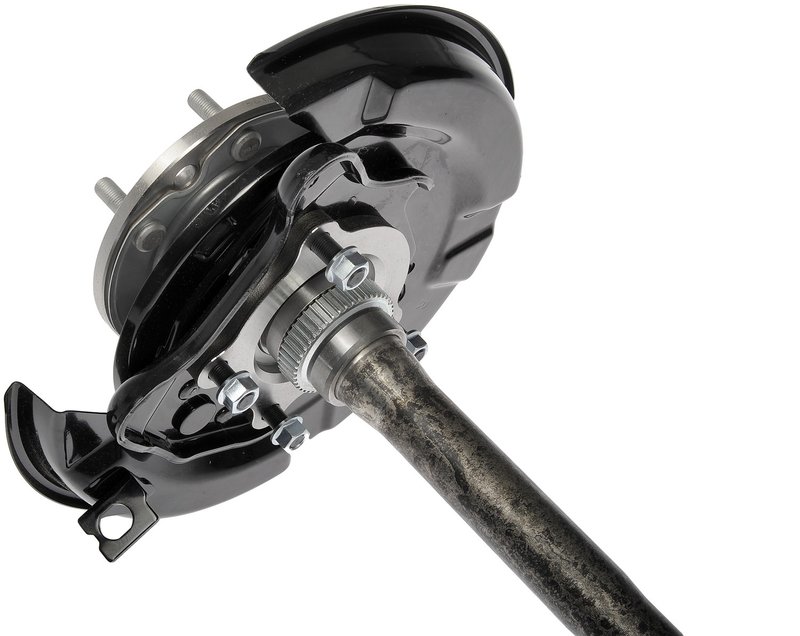

Dorman 926-176 Drive Axle Shaft Assembly - Rear Right
Dorman 926-176 Rear Right Axle Shaft Assembly
Restore rear driveline function on compatible Toyota Sequoia models with this loaded axle shaft assembly from Dorman. Part number 926-176 combines the axle shaft and critical bearing components in one OE FIX design for a faster, cleaner replacement on the rear right side.
Key Features
- Fits 2005-2007 Toyota Sequoia, rear right
- Loaded axle assembly with hub bearing included
- ABS tone ring included for wheel speed sensor operation
- Brake dust shield and brake backing plate included
- Axle shaft seal included, plus axle housing seal and O-ring in package contents
- Rust-resistant coating helps protect the assembly
- 6 lug x 139.7 mm wheel bolt pattern
- 30 inboard splines and 30 outboard splines
- Carbon steel construction with 845 mm length
- Wheel studs included with 12 mm x 1.5 thread size
Detailed Description
Dorman 926-176 is a drive axle shaft assembly for the rear right position on 2005-2007 Toyota Sequoia models. It is built as a loaded assembly with the hub bearing already integrated, reducing the need for a shop press during replacement. The semi-float design, ABS tone ring, dust shield, backing plate, and axle shaft seal are included to support a complete service on the rear axle. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
What This Part Helps Address
- Wheel bearing noise from a worn rear hub assembly
- Excessive play or roughness at the rear wheel
- ABS warning concerns related to a damaged tone ring
- Corrosion on the axle assembly or related mounting surfaces
- Time-consuming axle service that normally requires pressing components apart
Installation Notes and Tips
Verify rear right fitment before ordering for 2005-2007 Toyota Sequoia applications. Inspect the axle housing seal and O-ring surfaces during installation, and confirm spline count, wheel bolt pattern, and ABS tone ring alignment match the original setup. Because this assembly includes the bearing and related components already installed, it can simplify service compared with rebuilding the axle separately.
Quality Assurance
Dorman OE FIX parts are engineered to address common service challenges by combining the axle and bearing components into one assembly. Part number 926-176 is built to OE-style specifications for the listed Toyota Sequoia fitment and uses a rust-resistant coating for added protection.
| Brand | Dorman |
|---|---|
| Part Number | 926-176 |
| ABS Tone Ring Included | Yes |
| Adjustable | No |
| Axle Shaft Seal Included | Yes |
| Brake Backing Plate Included | Yes |
| Brake Dust Shield Included | Yes |
| Brake Hardware Included | No |
| Compressed Length | 845 mm |
| Differential Case Design Type | Semi-Float |
| Hub Bearing Included | Yes |
| Inboard Spline Quantity | 30 |
| Length | 845 mm |
| Material | Carbon Steel |
| Outboard Spline Quantity | 30 |
| Package Contents | 1 Axle and Bearing Assembly; 1 Axle Housing Seal; 1 Axle Housing O-ring |
| Rust Resistant Coating | Yes |
| Shaft Diameter | 33.8 |
| Wheel Bolt Pattern Size | 6 Lug x 139.7 mm |
| Wheel Stud Thread Diameter | 12 |
| Wheel Stud Thread Pitch | 1.5 |
| Wheel Studs Included | Yes |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Toyota | Sequoia | Rear Right | |
| 2006 | Toyota | Sequoia | Rear Right | |
| 2005 | Toyota | Sequoia | Rear Right |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
