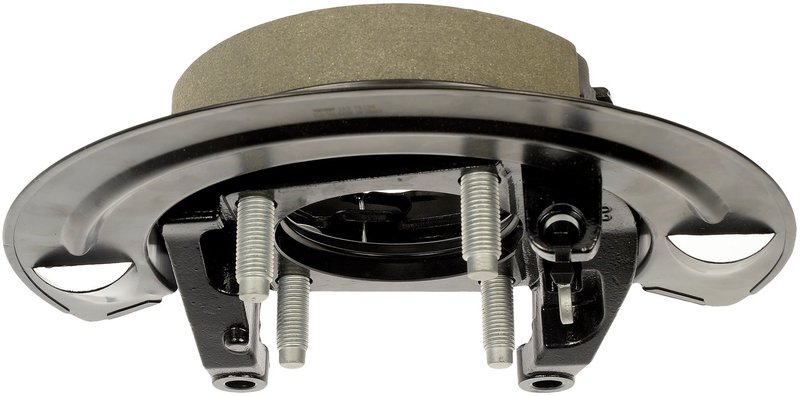

Dorman 926-269 Parking Brake Assembly - Rear

Reliable Parking Brake Assembly for Dodge Ram Trucks

The Dorman 926-269 parking brake assembly is designed to provide dependable parking brake performance for Dodge Ram 1500, Ram 2500, and Ram 3500 models. This fully loaded backing plate assembly comes with all essential components to ensure proper function and fitment.

• Complete loaded backing plate assembly in black finish
• Includes brake shoes, springs, dust shield, and mounting hardware
• Backing plate stud thread size: M16 with studs included
• Caliper bracket mounting hole ID measures 14.5 mm
• Equipped with parking brake shoe actuator and adjuster

Comprehensive Assembly with Key Components

This Dorman parking brake assembly (part number 926-269) features a fully loaded backing plate that includes brake shoes, springs, and a dust shield to protect against debris. The assembly is designed with M16 backing plate stud threads and includes the studs themselves for a secure fit. The caliper bracket mounting hole ID of 14.5 mm ensures compatibility with the specified Dodge Ram models. Additionally, the parking brake shoe actuator and adjuster are included to maintain proper brake shoe tension and performance over time.

Compatible Dodge Ram Models and Applications

This parking brake assembly is compatible with Dodge Ram 1500, Ram 2500, and Ram 3500 trucks, making it suitable for various heavy-duty and light-duty applications. It is ideal for restoring parking brake functionality in these vehicles, especially when the original assembly shows signs of wear or damage.

• Restores parking brake function on Dodge Ram 1500, 2500, and 3500
• Addresses issues with worn or damaged brake shoes and springs
• Replaces assemblies with faulty parking brake shoe actuators or adjusters
• Helps resolve parking brake drag or insufficient holding power
• Prevents corrosion and debris buildup with included dust shield

Installation Notes and Tips

When installing the Dorman 926-269 parking brake assembly, ensure the backing plate studs align correctly with the mounting points on your Dodge Ram model. Verify that the M16 stud threads are compatible with your vehicle’s hardware. Proper adjustment of the parking brake shoe actuator and adjuster is critical for optimal brake performance. It is recommended to inspect related brake components during installation for wear or damage.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The 926-269 parking brake assembly undergoes quality checks to ensure fitment and function for Dodge Ram 1500, 2500, and 3500 trucks. Please refer to Dorman’s warranty policy for specific coverage details.
