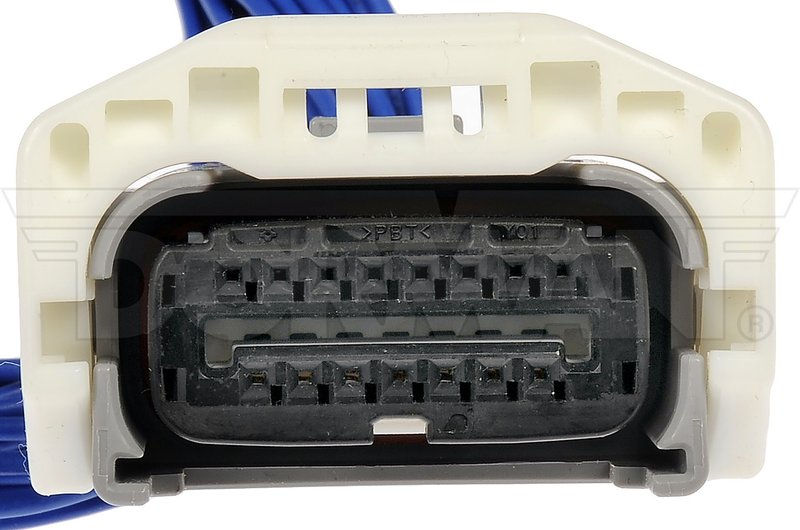

Dorman 926-383 Automatic Transmission Wiring Harness Connector

Reliable Automatic Transmission Wiring Harness Connector

The Dorman 926-383 Automatic Transmission Wiring Harness Connector is designed to provide a secure and efficient electrical connection for your vehicle's transmission system. Compatible with select Lexus and Toyota models, this wiring harness connector ensures proper signal transmission and durability.

• Overall length of 10 inches for optimal fitment
• Includes 1 wire harness with 15 wires
• Male and female blade pin terminals for secure connections
• Plastic terminal material designed for electrical insulation
• 20 gauge blue wires for consistent electrical flow

Product Details and Specifications

This wiring harness connector features a 10-inch overall length, making it suitable for routing within the transmission system of compatible vehicles. The harness includes 15 wires, each 20 gauge in thickness, with blue insulation for easy identification. The terminals are blade pin type, combining male and female connectors made from durable plastic to ensure reliable electrical contact and insulation. This part is engineered to meet the electrical demands of automatic transmission systems in Lexus and Toyota vehicles.

Compatible Vehicles and Applications

The Dorman 926-383 wiring harness connector is compatible with the following Lexus and Toyota models:

• Lexus 4Runner, GX470, LX470
• Toyota FJ Cruiser, Land Cruiser, Sequoia, Tacoma, Tundra

This connector is used primarily in the automatic transmission wiring system to maintain proper electrical connections and signal integrity.

Common Issues Addressed by This Wiring Harness Connector

• Intermittent or failed transmission electrical signals
• Damaged or corroded transmission wiring connectors
• Faulty or loose blade pin terminal connections
• Wiring harness wear due to heat or vibration
• Electrical shorts or open circuits in transmission wiring

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation
• Verify wire colors and terminal types match the vehicle’s wiring diagram
• Use proper tools to avoid damaging blade pin terminals
• Secure wiring harness to prevent movement and abrasion
• Test electrical continuity after installation to confirm proper connection

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 926-383 wiring harness connector undergoes quality inspections to ensure durability and reliable performance. Please refer to Dorman’s warranty policy for specific coverage details.
