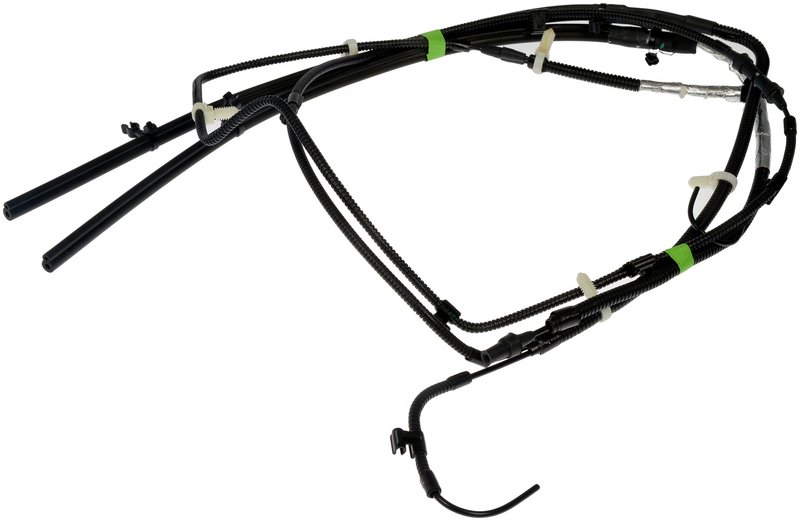

Dorman 926-466 4WD Hub Locking Actuator Vacuum Hose
4WD Hub Locking Actuator Vacuum Hose
Dorman 926-466 is a 4WD hub locking actuator vacuum hose built to match the fit and function of the original hose on specified vehicles. It supports proper front wheel hub engagement and disengagement in 4WD systems for Ford F-150 and Lincoln Mark LT applications.
Key Features
- Direct-fit replacement for the original 4WD hub locking actuator vacuum hose
- Designed for 2004-2008 Ford F-150 and 2006-2008 Lincoln Mark LT
- Rubber hose construction for vacuum routing in the hub locking system
- 90-inch hose length for vehicle-specific routing
- Single vacuum connector with 0.37 in outside diameter
- Hose inside diameters listed at 0.115 in and 0.157 in
- Port 1 outside diameter: 0.378 in
Detailed Description
This Dorman 926-466 vacuum hose is engineered for the 4WD hub locking actuator circuit, where consistent vacuum delivery is needed to engage and disengage the front wheel hub. It is a direct replacement for the original hose on select Ford F-150 and Lincoln Mark LT trucks, helping restore the factory routing and connection points used by the 4x4 hub system. The hose is made from rubber and measures 90 inches in length, with connector and port dimensions listed to support OE-style fitment.
This part cross-references Standard Ignition HVH001 for the same application.
What It Helps Fix
- Broken or cracked 4WD hub vacuum hose
- Loss of vacuum to the front hub locking actuator
- Delayed or inconsistent 4x4 hub engagement
- Front hub disengagement problems after shifting out of 4WD
- Vacuum leaks in the hub locking circuit
Installation Notes and Tips
Verify hose routing against the original line before installation. Check connector diameter, hose inside diameter, and overall length to confirm proper routing on the vehicle. Inspect related vacuum lines and hub components for wear, leaks, or damage before returning the 4WD system to service. Fits 2004-2008 Ford F-150, N/A. Fits 2006-2008 Lincoln Mark LT, N/A.
Quality Assurance
Dorman designs this replacement hose to match the fit and function of the original part on specified applications. Part number 926-466 is built for direct replacement use in the 4WD hub locking actuator vacuum system.
| Brand | Dorman |
|---|---|
| Part Number | 926-466 |
| Cantidad de conectores al vacío | 1 ensamble de manguera del calentador |
| Contenidos del paquete | 1 manguera de vacío del actuador de bloqueo del cubo de la tracc |
| Diámetro del conector para vacío | 0.37 in |
| Diámetro interior de la manguera | 0.115 in |
| Diámetro interior de la manguera | 0.157 in |
| Hose Inside Diameter | 0.115 in |
| Hose Inside Diameter | 0.157 in |
| Hose Material | Caucho |
| Hose Material | Élastomère |
| Hose Material | Rubber |
| Hose Outside Diameter | 0.25 in |
| Hose Outside Diameter | 0.37 in |
| Inlet Inside Diameter | 0.16 in |
| Inlet Inside Diameter | 0.16 in. |
| Length | 90 in |
| Length | 90 in. |
| Mounting Bracket Included | No |
| Mounting Bracket Included | Non |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Package Contents | 1 4wd hub locking actuator vacuum hose |
| Port 1 Outside Diameter | 0.378 in |
| Port 1 Outside Diameter | 0.378 in. |
| Port Quantity | 1 |
| Port Quantity | 1 ensamble de manguera del calentador |
| Vacuum Connector Diameter | 0.37 in |
| Vacuum Connector Quantity | 1 |
This part fits 8 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Ford | F-150 | N/A | |
| 2008 | Lincoln | Mark LT | N/A | |
| 2007 | Ford | F-150 | N/A | |
| 2007 | Lincoln | Mark LT | N/A | |
| 2006 | Ford | F-150 | N/A | |
| 2006 | Lincoln | Mark LT | N/A | |
| 2005 | Ford | F-150 | N/A | |
| 2004 | Ford | F-150 | N/A |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
