Dorman 926-830 Engine Wiring Harness

Engine Wiring Harness Overview

This Dorman engine wiring harness, part number 926-830, matches the fit and function of the original harness for specified applications. It routes electrical power and control signals to and from the vehicle systems tied to the multiple displacement solenoid.

Key Features

• Standard replacement harness for direct service use.
• 6-wire, 20-gauge construction for controlled electrical routing.

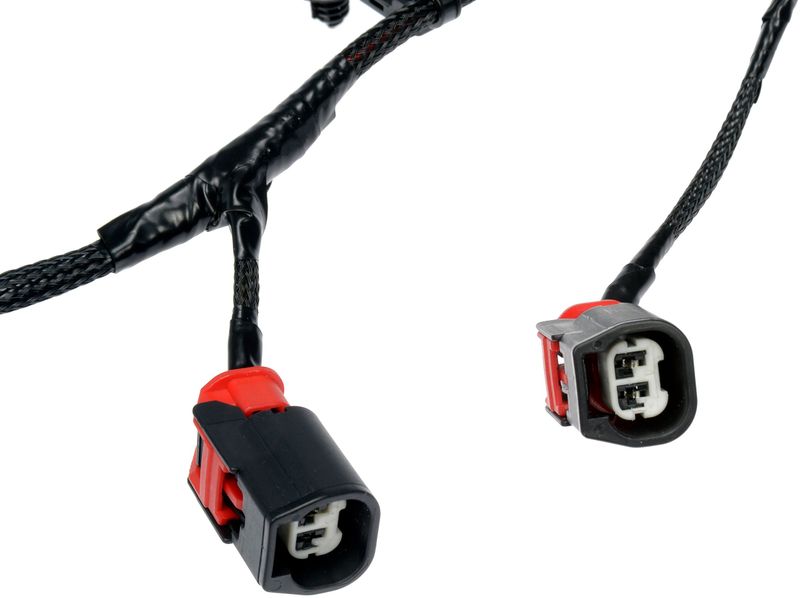

• 6 female connectors with black and gray connector housings.
• Blade and spade terminal types for the specified application.
• 32-inch harness length for application-specific routing.

Detailed Description

Built as a standard replacement, this engine wiring harness is engineered to restore the original electrical path for the multiple displacement solenoid circuit. It is a fitment-based solution for Chrysler 300, Dodge Challenger, Dodge Durango, Dodge Charger, Dodge Ram 1500, Jeep Commander, Jeep Grand Cherokee, Ram 1500, and Ram 1500 Classic applications listed in the fitment data. If you are replacing a damaged or unreliable harness on a Chrysler 300 or Jeep Grand Cherokee, part number 926-830 provides the correct harness architecture for the specified vehicles.

This part cross-references Mopar 5148163AA and 5148163AB for the same application.

What It Helps Solve

• Broken or damaged wiring in the multiple displacement solenoid circuit.
• Intermittent electrical connection at the harness interface.
• Corrosion or wear at the original connectors and terminals.
• Signal loss between the harness and connected engine components.

Installation Notes

Verify connector style, terminal type, wire count, and harness length against the original part before installation. Confirm the vehicle application by year, make, model, and engine system notes in the fitment data. Part number 926-830 is listed as a standard replacement harness for the specified applications.

Quality Assurance

Dorman supplies replacement electrical components engineered to match original fit and function for the listed applications.
