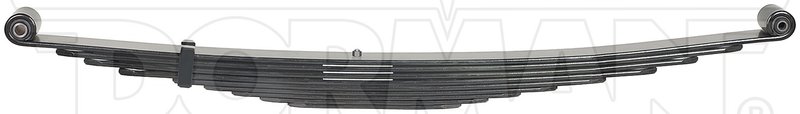

Dorman 929-234 Leaf Spring - Rear

Durable Leaf Spring Assembly for Ford E-Series Vans

The Dorman 929-234 leaf spring assembly is engineered to restore the suspension performance of your Ford E-150, E-250, or E-350 Econoline and Club Wagon models. Constructed from high-quality steel and finished in black, this standard grade leaf spring provides reliable support and ride stability for your vehicle.

• Made from durable steel material for long-lasting strength
• Standard suspension grade type suitable for everyday driving
• Includes 9 leaves with a 3-inch width for balanced load distribution
• Comes with bushings included for easier installation
• Up turned eye attachments on both ends for secure mounting
• No axle modification required for direct replacement
• Compatible with multiple Ford E-Series models including E-150, E-250, and E-350

Detailed Description of Dorman Leaf Spring Assembly 929-234

This leaf spring assembly features a pack thickness of 3.38 inches and a leaf spring arch length of 1.8 inches, designed to maintain proper suspension geometry and vehicle height. The assembly measures 23.88 inches along one axis and 31 inches along the other, ensuring a precise fit for the specified Ford E-Series vans. The absence of a helper spring simplifies the suspension setup while maintaining adequate support. Both ends of the spring have up turned eye attachments, which are compatible with factory mounting points, and the included bushings help reduce noise and wear during operation.

Common Applications and Suspension Issues Addressed

• Restores sagging or worn leaf springs on Ford E-150, E-250, and E-350 Econoline vans
• Improves vehicle stability and load carrying capacity
• Eliminates uneven ride height and excessive body roll
• Replaces damaged or cracked leaf springs to maintain safe suspension performance
• Addresses suspension noise caused by worn bushings or leaf components

Installation Notes and Tips

The Dorman 929-234 leaf spring assembly is designed for direct replacement without the need for axle modifications. While bushings are included, mounting hardware is not, so ensure you have the necessary bolts and fasteners before installation. Proper alignment of the up turned eye attachments is critical for optimal suspension function. It is recommended to have the installation performed by a qualified technician or follow the vehicle manufacturer’s service manual for torque specifications and safety precautions.

Quality Assurance and Warranty Information

Dorman manufactures this leaf spring assembly to meet or exceed OEM standards for material and construction. The steel build and suspension grade design provide consistent performance under normal operating conditions. This product includes a limited warranty against defects in material and workmanship, offering confidence in its durability and fitment for Ford E-150, E-250, and E-350 Econoline and Club Wagon models.
