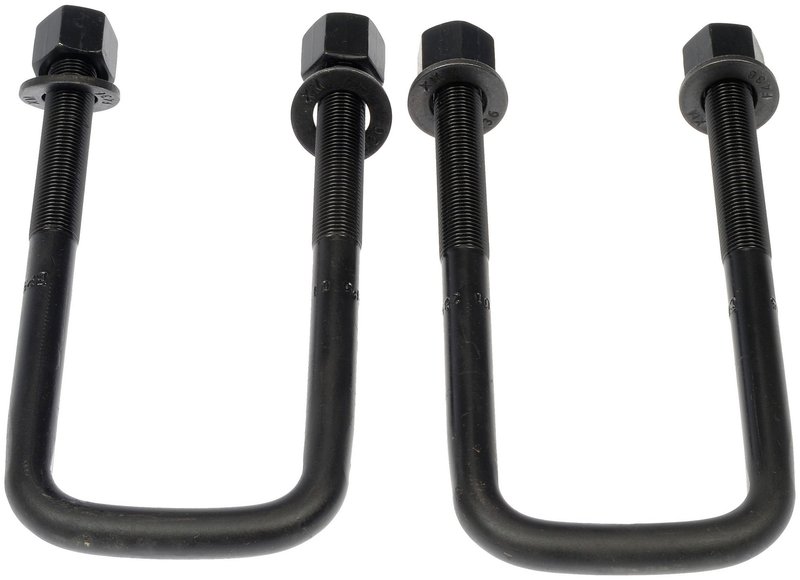

Dorman 929-741 Leaf Spring Axle U-Bolt Kit - Front or Rear

Dorman 929-741 Leaf Spring U-Bolt Kit

Dorman 929-741 is a steel leaf spring axle U-bolt kit built for secure rear suspension attachment on select Dodge trucks and vans. It uses a fine 9/16 in thread, Grade 5 bolt construction, and a semi-gloss black finish for a direct-fit replacement on listed applications.

Key Features

• Steel construction for suspension mounting strength
• Fine 9/16 in thread diameter with 3.5 in thread length
• Inside length: 8.75 in; inside width: 2.563 in
• Grade 5 bolt specification
• Semi-gloss black finish
• Specific fit replacement for listed Dodge rear and front semi-round bend applications
• Nut hardware included

Product Details

This leaf spring axle U-bolt kit secures the leaf spring or leaf spring pack to the underside of the axle, helping maintain proper clamping force at the suspension mount. Dorman 929-741 is a standard replacement part for vehicles that require a semi-round bend U-bolt profile, including Dodge Ram 1500, Dodge Ram 2500, Dodge Ram 3500, Dakota, D100, W100, W150, W200, W250, W300, W350, Ramcharger, and Ram van applications listed in the fitment data. This part cross-references Monroe Shocks & Struts (e.g., 361-426, 3496267) for the same application.

What It Helps Fix

• Loose or weakened leaf spring-to-axle clamping
• Corrosion-damaged or fatigued U-bolts
• Suspension noise from worn mounting hardware
• Rear ride-height instability caused by compromised spring retention
• Service replacement needs on Dodge Ram and Dakota leaf spring assemblies

Installation Notes

Verify leaf spring dimensions, axle tube size, inside length, inside width, and thread specifications before installation. This kit is specific fit, so confirm the vehicle year, model, and position against the listed applications before ordering. Use the correct torque procedure for leaf spring U-bolt hardware and recheck fasteners after initial suspension settling.

Quality Assurance

Dorman manufactures this part as a standard replacement suspension component for the listed applications. Part number 929-741 is engineered to match the required fitment details for compatible Dodge rear and front semi-round bend setups.
