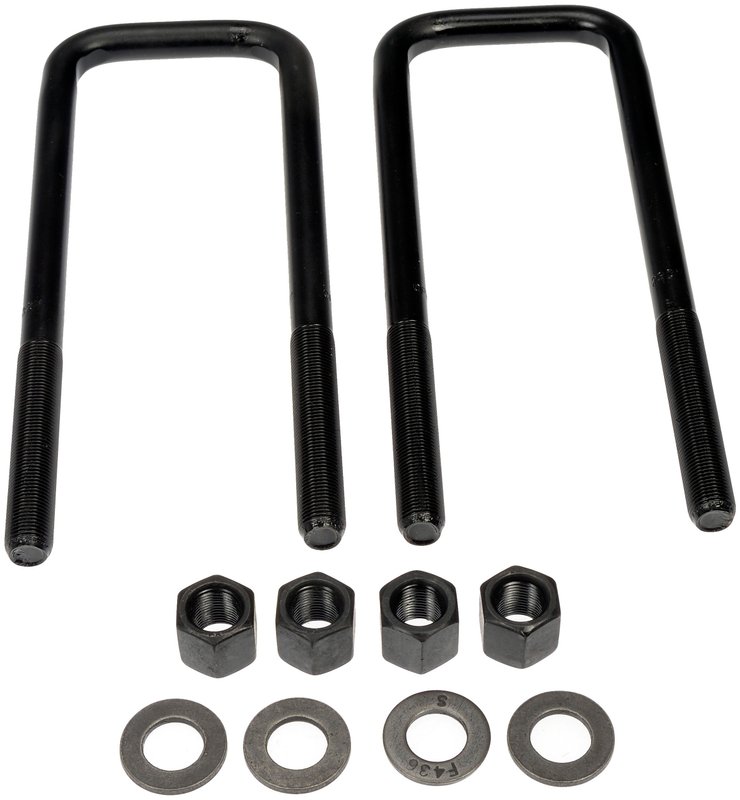

Dorman 929-745 Leaf Spring Axle U-Bolt Kit - Rear

Dorman 929-745 Leaf Spring Axle U-Bolt Kit

Dorman 929-745 is a standard replacement leaf spring axle U-bolt kit for securing the leaf spring or leaf spring bundle to the underside of the axle. Built from steel with a semi-gloss black finish, it is a specific-fit suspension hardware solution for rear applications on select Ford Econoline vans and club wagons.

Key Features

• Steel construction for suspension mounting strength
• Semi-gloss black finish
• 5/8 in fine-thread U-bolt design
• Grade 8 bolt specification
• Inside length: 9.375 in
• Inside width: 3.063 in
• Nuts included
• Specific-fit replacement for select rear leaf spring applications

Application Details

Compatible With rear suspension service on 1975-1991 Ford E-250 Econoline, rear; 1975-1991 Ford E-250 Econoline Club Wagon, rear; 1975-1991 Ford E-350 Econoline, rear; and 1977-1991 Ford E-350 Econoline Club Wagon, rear. This part number, 929-745, is also cross-referenced to 361-430 for the same application.

What This Part Helps Address

• Loose or worn leaf spring axle attachment hardware
• Corrosion-damaged U-bolts on rear suspension assemblies
• Improper clamping of the leaf spring pack to the axle
• Service replacement needs on Ford E-250 Econoline and E-350 Econoline rear suspension
• Fitment issues when the original square-bend U-bolt dimensions no longer match

Installation Notes and Tips

Verify leaf spring dimensions, axle configuration, and square-bend application details before ordering. Match the inside length, inside width, thread diameter, and thread length to the original hardware for proper fit. Use the correct torque procedure for the axle and spring assembly, and inspect related suspension components during service.

Quality Assurance

Dorman standard replacement suspension hardware is built to match the listed application requirements and dimensional specifications for direct-fit service on the vehicles shown.
