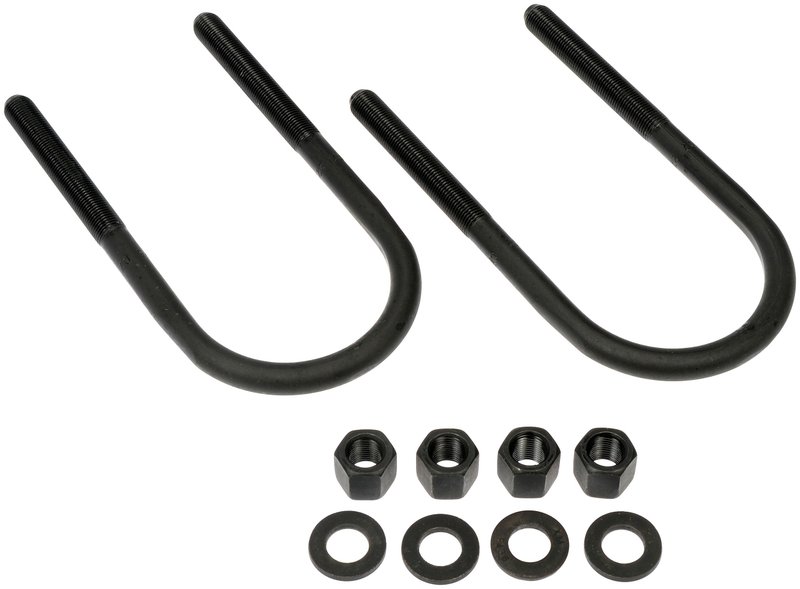

Dorman 929-763 Leaf Spring Axle U-Bolt Kit - Rear

Dorman 929-763 Leaf Spring Axle U-Bolt Kit

Dorman 929-763 is a standard replacement leaf spring axle U-bolt kit for rear suspension service. It secures the leaf spring or leaf spring bundle to the underside of the axle on select Ford, Mazda, and Mercury applications, including Ranger, Explorer, B2300, B3000, B4000, B2500, Mountaineer, Navajo, and Bronco II models.

Key Features

• Steel construction with a semi-gloss black finish
• Grade 5 bolt specification
• 1/2 in fine-thread diameter
• 3.5 in thread length
• Inside length: 9.875 in
• Inside width: 2.875 in
• Specific fit for selected rear suspension applications
• Nuts included

Product Details

This leaf spring axle U-bolt kit is built to clamp the leaf spring assembly securely to the axle housing, helping maintain proper rear suspension location and clamping force. Dorman 929-763 is a direct-fit, standard replacement part for vehicles that require a round-bend rear U-bolt configuration. It is listed for 1983-2011 Ford Ranger rear, 1991-2001 Ford Explorer rear, 1986-1990 Ford Bronco II rear, 1997-2001 Mercury Mountaineer rear, 1991-1994 Mazda Navajo rear, and select Mazda B-Series rear applications including B2300, B2500, B3000, and B4000. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. Part number 929-763 is a practical choice when replacing worn or damaged rear leaf spring U-bolts on compatible Ford Ranger and Mazda B-Series trucks.

Common Problems This Part Can Address

• Loose or weakened leaf spring-to-axle clamping
• Corrosion or damage on existing rear U-bolts
• Suspension noise from worn mounting hardware
• Rear axle movement caused by compromised fasteners
• Service replacement for round-bend leaf spring U-bolt applications

Installation Notes and Tips

Verify leaf spring dimensions, axle tube shape, and round-bend application details before installation. Confirm inside length, inside width, thread diameter, and thread length against the original hardware to ensure proper fit. Because this is a specific-fit rear suspension component, match the vehicle year, make, model, and suspension configuration before ordering. Part number 929-763 should be installed according to the vehicle service procedure and torqued to specification after the suspension is assembled.

Quality Assurance

Dorman manufactures this kit as a standard replacement suspension hardware solution for the listed applications. The steel construction, Grade 5 bolt rating, and fine-thread design support consistent fitment on the specified rear leaf spring axle mounting points.
