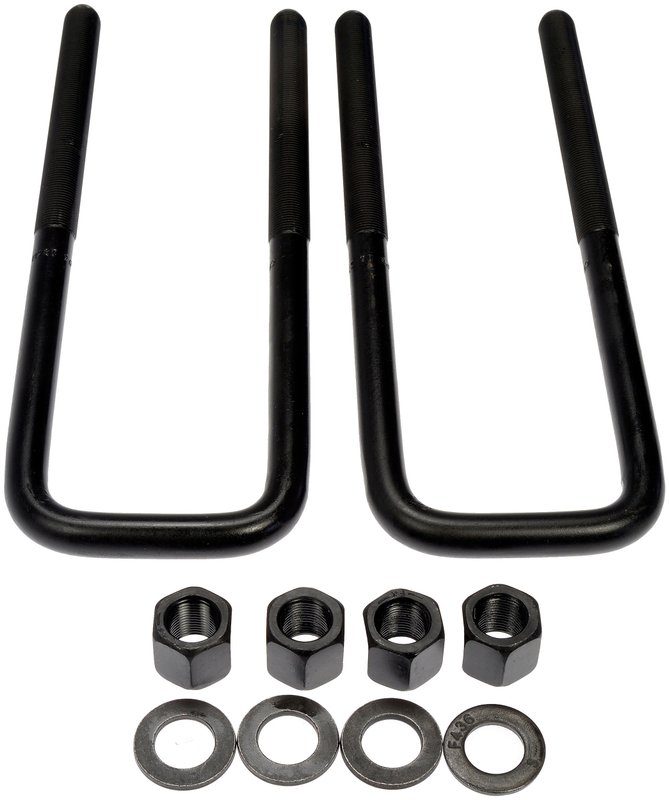

Dorman 929-820 Leaf Spring Axle U-Bolt Kit - Rear

Dorman 929-820 Leaf Spring Axle U-Bolt Kit

Dorman 929-820 is a leaf spring axle U-bolt kit for rear suspension applications that secure the leaf spring or leaf spring pack to the underside of the axle. It is built from steel with a semi-gloss black finish and uses Grade 8 hardware with fine threads for a specific-fit replacement.

Key Features

• Steel construction with semi-gloss black finish
• Grade 8 bolt specification for demanding suspension service
• Fine-thread 3/4 in. diameter U-bolt design
• Inside length: 12.25 in.; inside width: 3.25 in.
• Specific-fit replacement for selected rear leaf spring axle applications
• Nuts included

Application Details

This Dorman 929-820 kit is built for rear suspension use on 2011-2018 Chevrolet Silverado 2500 HD, rear, Square Bend; 2011-2018 Chevrolet Silverado 3500 HD, rear, Square Bend; 2011-2018 GMC Sierra 2500 HD, rear, Square Bend; and 2011-2018 GMC Sierra 3500 HD, rear, Square Bend. It cross-references Monroe Shocks & Struts 172286 and 182286 for the same application. For buyers searching for a rear leaf spring U-bolt kit for Chevrolet Silverado 2500 HD, Chevrolet Silverado 3500 HD, GMC Sierra 2500 HD, or GMC Sierra 3500 HD, part number 929-820 provides the listed fitment and dimensions needed for selection.

What It Is Used For

• Loose or worn U-bolts at the rear leaf spring mount
• Corrosion-damaged suspension fasteners
• Incorrect U-bolt dimensions during leaf spring service
• Axle-to-spring clamping issues after suspension repair
• Replacement of square-bend rear leaf spring axle hardware

Installation Notes

Verify leaf spring dimensions, inside length, inside width, thread diameter, and thread length before ordering. Confirm the rear square-bend application on the vehicle and match the axle and spring configuration to the listed fitment. Use the correct torque procedure for Grade 8 suspension fasteners and inspect related leaf spring hardware during installation.

Quality Assurance

Dorman suspension hardware is built as a standard replacement part for the specified application. Part number 929-820 is engineered to match the listed fitment and dimensional requirements for rear leaf spring axle service.
