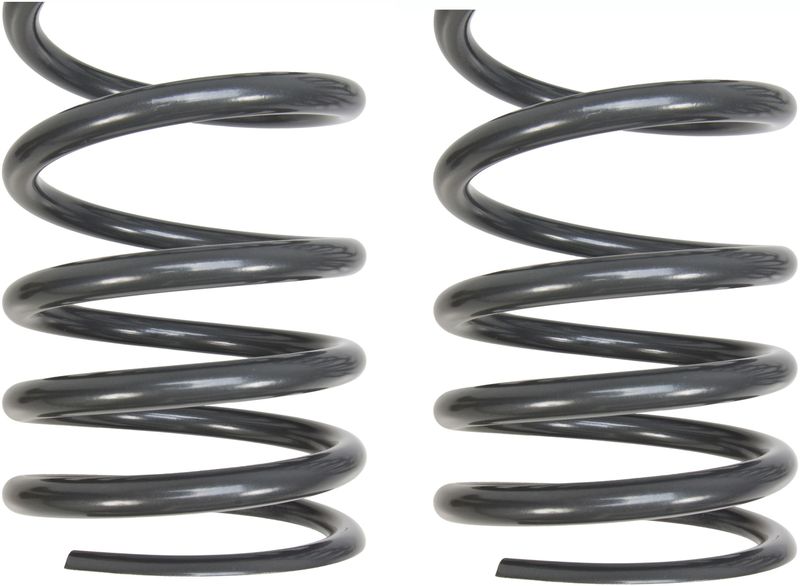

Dorman 929-965 Coil Spring - Rear
| Brand | Dorman 929-965 |
|---|---|
| Position | Rear |
| Material | 5160h alloy |
| Material | Aleación 5160h |
| 10020 | 9.6 |
| Installed Height | 467.36 |
| Maximum Outside Diameter | 7.2 |
| Spring Rate | 225 |
| Spring Rate | 320 |
| Length | 467.36 |
| Color | Gray |
| Color | Gris |
| End 1 Type | Poc |
| End 2 Type | Sg |
| Finish | Powder coated |
| Finish | Revestimiento en polvo |
| End 1 Outside Diameter | 7.2 |
| End 2 Outside Diameter | 7.15 |
| Seat Included | No |
| Seat Included | Non |
| Free Height | 17.5 |
| Wire Diameter | 0.718 |
| Maximum Inside Diameter | 5.7 |
| Load Rate | 1335 |
| Suspension Grade Type | Reemplazo estándar |
| Suspension Grade Type | Standard replacement |
| Width | 182.88 |
| Height | 467.36 |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Spring Type | Coil spring |
| Spring Type | Resorte espiral |
| Fits | Toyota · 4 vehicles |
OE-style replacement. Precision-engineered and rigorously tested for specific suspension applications.
5160H alloy construction. Built with a powder-coated finish for added surface protection.
Variable spring rate. Standard replacement design with OE lift specification of +2 in.
Cross-references 482310C500 for the same application. See all 1.
Overview
Dorman 929-965 is a standard replacement coil spring engineered for specific Toyota Tundra applications. It is built from 5160H alloy and finished with a powder coat for added corrosion resistance.
This spring is specified for rear fitment on 2022-2025 Toyota Tundra models with a 30% over original rating note. The design uses a variable spring rate and OE lift of +2 in to match the application requirements.
Key Features
- 5160H alloy construction for consistent spring performance
- Powder-coated finish for added surface protection
- Variable spring rate design
- Standard replacement suspension grade
- OE lift specification of +2 in
- End types: POC and SG
Detailed Description
Dorman 929-965 is a coil spring replacement for the rear suspension on 2022-2025 Toyota Tundra models. The spring is precision-engineered and tested as an OE-style replacement for the original equipment application, with material and rate specifications selected to match the vehicle’s suspension requirements. Part number 929-965 is also cross-referenced to 482310C500 for the same application.
With a 5160H alloy body, powder-coated finish, and variable spring rate, this coil spring is built for controlled load support and consistent ride characteristics. The listed OE lift and rear application make it a direct fitment-focused option for Toyota Tundra suspension service.
What It Helps Solve
- Sagging rear ride height
- Worn or fatigued original coil springs
- Uneven rear suspension support
- Loss of factory ride control under load
- Need for an OE-style rear spring replacement
Installation Notes
Fits 2022-2025 Toyota Tundra, rear. Verify spring orientation, end types, and suspension condition before installation. Confirm the application matches the OE lift and load-rate requirements for the vehicle. Part number 929-965 should be matched to the listed fitment and notes before service.
Quality Assurance
Dorman states this coil spring is precision-engineered and rigorously tested to provide reliable replacement for the original equipment on specific vehicles. Part number 929-965 is built as a standard replacement suspension component for application-specific service.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2025 | Toyota | Tundra | RWD | Rear | 30% Over Original Rating |
| 2024 | Toyota | Tundra | RWD | Rear | 30% Over Original Rating |
| 2023 | Toyota | Tundra | RWD | Rear | 30% Over Original Rating |
| 2022 | Toyota | Tundra | RWD | Rear | 30% Over Original Rating |
