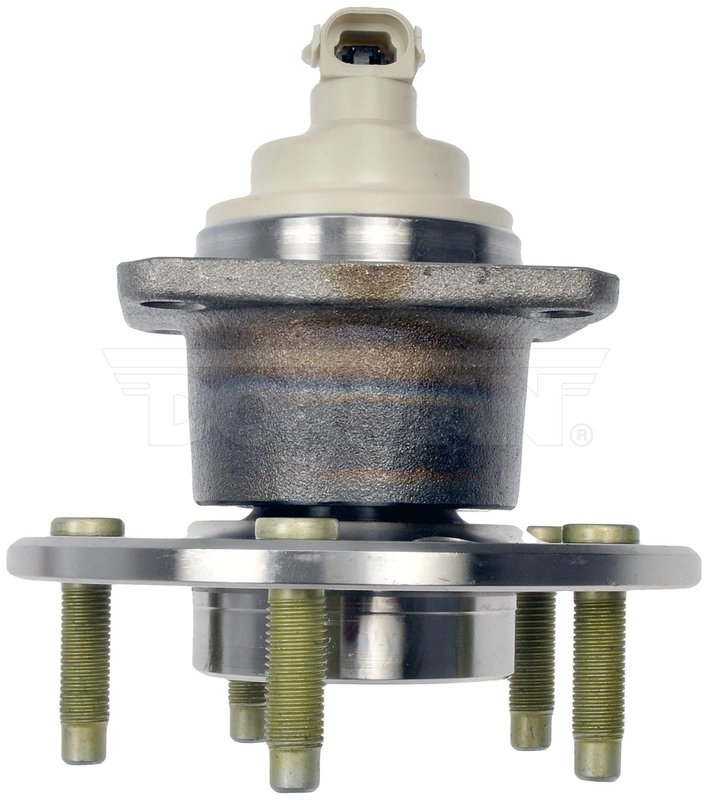

Dorman 930-629 Wheel Bearing and Hub Assembly - Rear
Dorman 930-629 Rear Wheel Bearing Hub Assembly
Dorman 930-629 is a rear wheel bearing and hub assembly for select Buick, Chevrolet, Oldsmobile, and Pontiac vehicles. It combines the hub and critical bearing replacement components in one repair assembly for specific applications, including rear-wheel service on the Chevrolet Impala, Pontiac Grand Prix, and Buick LaCrosse.
Key Features
- Rear wheel bearing and hub assembly for select GM applications
- Includes the hub and critical bearing replacement components for a complete repair
- ABS sensor type with 1 male connector and 2 male terminals
- 5 wheel studs with studs included
- 4-bolt flange design with rectangular flange shape
- 4.5 in bolt circle diameter
- Flange included
- Interchanges with OE and aftermarket references including 19313406, WE61179, and MOOG 512357
Detailed Description
This Dorman wheel bearing and hub assembly, part number 930-629, is built for rear axle service on a wide range of GM cars and vans. It is specified for applications such as the 2000-2008 Chevrolet Impala rear, 2004-2008 Pontiac Grand Prix rear, 2005-2009 Buick LaCrosse rear, and 2005-2009 Buick Allure rear. The assembly includes the hub and bearing replacement components needed for a direct repair on the listed vehicles, with ABS sensor provisions and the correct flange, pilot, and stud dimensions for the application.
Additional fitment coverage includes the 2000-2007 Chevrolet Monte Carlo rear, 2005 Buick Terraza rear, 2005 Chevrolet Uplander rear, 1999-2005 Pontiac Montana rear, 1992-2004 Oldsmobile Silhouette rear, 1992-1998 Pontiac Trans Sport rear, 1994-1996 Buick Century rear, 1992-1996 Chevrolet Lumina APV rear, 1994-1996 Oldsmobile Cutlass Ciera rear, and 1994 Oldsmobile Cutlass Cruiser rear. Search terms such as rear wheel bearing hub assembly for Chevrolet Impala, Pontiac Grand Prix rear hub bearing, and Buick LaCrosse rear wheel bearing assembly apply to this part number 930-629.
What It Helps Repair
- Wheel bearing noise from the rear hub area
- Excessive wheel play or looseness at the rear axle
- ABS warning light concerns related to the hub sensor interface
- Uneven rear wheel rotation caused by worn bearing components
- Hub mounting issues on the listed GM rear applications
Installation Notes and Tips
Verify rear fitment by year, make, model, and ABS configuration before installation. Confirm the flange bolt hole pattern, 4.5 in bolt circle diameter, and stud length requirement of 39 mm for the listed applications. Inspect the mating surfaces, axle area, and ABS connector condition during service to help ensure proper hub seating and sensor connection.
Quality Assurance
Dorman replacement parts are engineered for specific vehicle applications and built to match the required hub and bearing service points for the listed fitments. Part number 930-629 cross-references OE and aftermarket references 19313406 and WE61179, and also cross-references MOOG hub assembly 512357 for the same application.
| Brand | Dorman |
|---|---|
| Part Number | 930-629 |
| Spline Quantity | 0 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | 12 |
| Wheel Pilot Diameter | 2.82 |
| Brake Pilot Diameter | 2.78 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 2.75 |
| Flange Shape | Rectangular |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Connector Gender | Male |
| Terminal Gender | Male |
| Flange Bolt Hole Diameter | 0.46 |
| Flange Offset | 2.55 |
| Connector Terminal Quantity | 2 |
| Bolt Circle Diameter | 4.5 in |
| Package Contents | 1 hub bearing assembly |
This part fits 73 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2009 | Buick | Allure | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2009 | Buick | LaCrosse | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2008 | Buick | Allure | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2008 | Buick | LaCrosse | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2008 | Chevrolet | Impala | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2008 | Pontiac | Grand Prix | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2007 | Buick | Allure | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2007 | Buick | LaCrosse | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2007 | Chevrolet | Impala | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2007 | Chevrolet | Monte Carlo | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2007 | Pontiac | Grand Prix | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2006 | Buick | Allure | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2006 | Buick | LaCrosse | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2006 | Chevrolet | Impala | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2006 | Chevrolet | Monte Carlo | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2006 | Pontiac | Grand Prix | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2005 | Buick | Allure | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2005 | Buick | LaCrosse | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2005 | Buick | Terraza | FWD | Rear | Stud Length from Face of Flange to End of Stud 39 mm |
| 2005 | Chevrolet | Impala | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2005 | Chevrolet | Monte Carlo | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2005 | Chevrolet | Uplander | FWD | Rear | Stud Length from Face of Flange to End of Stud 39 mm |
| 2005 | Pontiac | Grand Prix | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2005 | Pontiac | Montana | FWD | Rear | Stud Length from Face of Flange to End of Stud 39 mm |
| 2004 | Chevrolet | Impala | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2004 | Chevrolet | Monte Carlo | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2004 | Oldsmobile | Silhouette | FWD | Rear | Stud Length from Face of Flange to End of Stud 39 mm |
| 2004 | Pontiac | Grand Prix | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2004 | Pontiac | Montana | FWD | Rear | Stud Length from Face of Flange to End of Stud 39 mm |
| 2003 | Chevrolet | Impala | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2003 | Chevrolet | Monte Carlo | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2003 | Oldsmobile | Silhouette | FWD | Rear | Stud Length from Face of Flange to End of Stud 39 mm |
| 2003 | Pontiac | Montana | FWD | Rear | Stud Length from Face of Flange to End of Stud 39 mm |
| 2002 | Chevrolet | Impala | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2002 | Chevrolet | Monte Carlo | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2002 | Oldsmobile | Silhouette | FWD | Rear | Stud Length from Face of Flange to End of Stud 39 mm |
| 2002 | Pontiac | Montana | FWD | Rear | Stud Length from Face of Flange to End of Stud 39 mm |
| 2001 | Chevrolet | Impala | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2001 | Chevrolet | Monte Carlo | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2001 | Oldsmobile | Silhouette | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2001 | Pontiac | Montana | FWD | Rear | Stud Length from Face of Flange to End of Stud 39 mm |
| 2000 | Chevrolet | Impala | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2000 | Chevrolet | Monte Carlo | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2000 | Oldsmobile | Silhouette | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 2000 | Pontiac | Montana | FWD | Rear | Stud Length from Face of Flange to End of Stud 39 mm |
| 1999 | Oldsmobile | Silhouette | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 1999 | Pontiac | Montana | FWD | Rear | Stud Length from Face of Flange to End of Stud 39 mm |
| 1998 | Oldsmobile | Silhouette | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 1998 | Pontiac | Trans Sport | FWD | Rear | Stud Length from Face of Flange to End of Stud 39 mm |
| 1997 | Oldsmobile | Silhouette | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 1997 | Pontiac | Trans Sport | FWD | Rear | Stud Length from Face of Flange to End of Stud 39 mm |
| 1996 | Buick | Century | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 1996 | Chevrolet | Lumina APV | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 1996 | Oldsmobile | Cutlass Ciera | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 1996 | Oldsmobile | Silhouette | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 1996 | Pontiac | Trans Sport | FWD | Rear | Stud Length from Face of Flange to End of Stud 39 mm |
| 1995 | Buick | Century | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 1995 | Chevrolet | Lumina APV | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 1995 | Oldsmobile | Cutlass Ciera | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 1995 | Oldsmobile | Silhouette | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 1995 | Pontiac | Trans Sport | FWD | Rear | Stud Length from Face of Flange to End of Stud 39 mm |
| 1994 | Buick | Century | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 1994 | Chevrolet | Lumina APV | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 1994 | Oldsmobile | Cutlass Ciera | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 1994 | Oldsmobile | Cutlass Cruiser | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 1994 | Oldsmobile | Silhouette | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 1994 | Pontiac | Trans Sport | FWD | Rear | Stud Length from Face of Flange to End of Stud 39 mm |
| 1993 | Chevrolet | Lumina APV | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 1993 | Oldsmobile | Silhouette | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 1993 | Pontiac | Trans Sport | FWD | Rear | Stud Length from Face of Flange to End of Stud 39 mm |
| 1992 | Chevrolet | Lumina APV | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 1992 | Oldsmobile | Silhouette | Rear | Stud Length from Face of Flange to End of Stud 39 mm | |
| 1992 | Pontiac | Trans Sport | FWD | Rear | Stud Length from Face of Flange to End of Stud 39 mm |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
