Dorman 930-634 Wheel Bearing and Hub Assembly - Front

Dorman 930-634 Front Wheel Bearing Hub Assembly

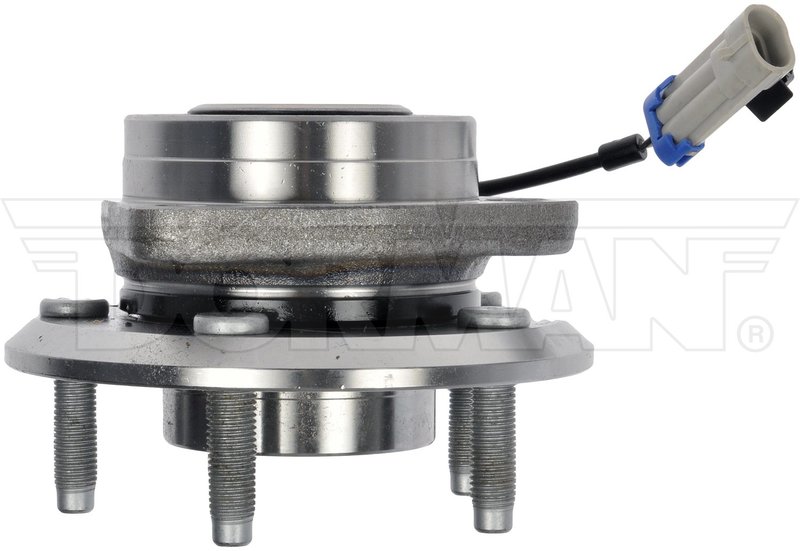

Dorman 930-634 is a front wheel bearing and hub assembly for specific Chevrolet, Pontiac, Saturn, and Suzuki applications. It combines the hub and critical bearing replacement components into one repair part for vehicles such as the Chevrolet Equinox, Pontiac Torrent, Saturn Vue, Chevrolet Captiva Sport, and Suzuki XL-7.

Key Features

• Front wheel bearing and hub assembly for select applications
• Includes the hub and critical bearing replacement components
• ABS sensor type design with one male connector and two male terminals
• 30-spline hub design with 5 wheel studs included
• Triangular flange with 3 bolt holes and 115 mm bolt circle diameter
• Wheel pilot diameter: 70 mm; hub pilot diameter: 70.4 mm
• Brake pilot diameter: 70.5 mm and flange offset: 42.3 mm
• Cross-references MOOG Hub Assemblies 513276 for the same application

Product Details

This Dorman wheel bearing and hub assembly is built for front-end service on 2007-2009 Chevrolet Equinox, 2007-2009 Pontiac Torrent, 2008-2010 Saturn Vue, 2007-2009 Suzuki XL-7, and 2008-2015 Chevrolet Captiva Sport applications. Part number 930-634 is specified with ABS sensor integration, a 30-spline hub, and a 5-lug wheel mounting pattern to match the original service requirements on these vehicles.

Use Dorman 930-634 when replacing a worn or noisy front hub assembly on the Chevrolet Equinox, Pontiac Torrent, or Saturn Vue. The assembly format helps restore proper wheel support and sensor-equipped hub function on the listed vehicles while matching key dimensions such as flange diameter, pilot diameters, and bolt circle specification.

Common Repair Reasons

• Front wheel bearing noise or roughness
• Excessive hub play or looseness
• ABS warning light related to hub sensor issues
• Wheel vibration or uneven hub operation
• Damaged wheel studs or mounting flange wear

Installation Notes

Verify vehicle year, make, model, and front position before installation. Confirm ABS connector style, spline count, bolt circle diameter, and pilot dimensions against the original part. Transfer any vehicle-specific components only when required by the application, and torque fasteners to the manufacturer’s service specifications.

Quality Assurance

Dorman supplies replacement hub assemblies engineered for direct-fit service on specific vehicle applications. Part number 930-634 is built to match the listed fitment and dimensional requirements for front hub replacement on supported Chevrolet, Pontiac, Saturn, and Suzuki models.
