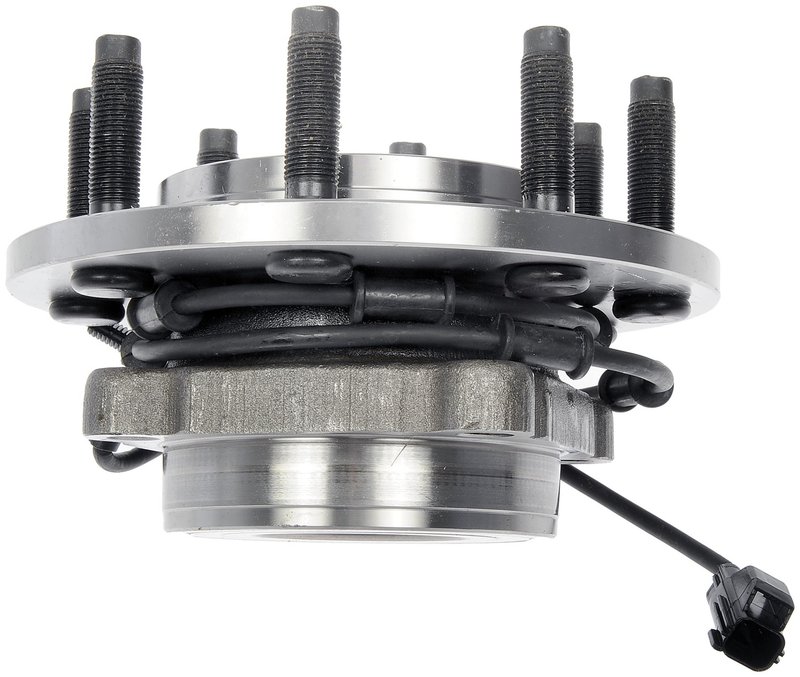

Dorman 930-636 Wheel Bearing and Hub Assembly - Front
| Brand | Dorman 930-636 |
|---|---|
| Position | Front |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Bolt Circle Diameter | 5.51 in |
| Brake Pilot Diameter | 4.81 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Terminal Quantity | 2 |
| Flange Bolt Hole Diameter | 0.48 |
| Flange Bolt Hole Quantity | 4 |
| Flange Bolts Included | No |
| Flange Diameter | 6.6 |
| Flange Included | Yes |
| Flange Offset | 2.15 |
| Flange Shape | Square |
| Hub Pilot Diameter | 3.93 |
| Package Contents | Hub Bearing Assembly |
| Spline Quantity | 33 |
| Terminal Gender | Male |
| Wheel Pilot Diameter | 4.75 |
| Wheel Stud Quantity | 8 |
| Wheel Stud Size | 9/16-18 |
| Wheel Studs Included | Yes |
| Fits | Dodge · 6 vehicles |
Complete repair kit. Hub and critical bearing components are included for a full replacement.
ABS sensor type. Integrated anti-lock braking system sensing helps maintain wheel speed signal function.
Square flange design. Built with an included flange and wheel studs for straightforward assembly.
Cross-references MOOG Hub Assemblies 515061, 5103507AA and WE60976 for the same application. See all 3.
Dorman 930-636 Wheel Bearing and Hub Assembly
Dorman 930-636 is a replacement wheel bearing and hub assembly for specific front applications on the Dodge Ram 2500 and Dodge Ram 3500. It combines the hub and critical bearing replacement components into one assembly for a complete repair on the listed vehicles.
Key Features
- Replacement wheel bearing and hub assembly for front use
- Fits 2003-2005 Dodge Ram 2500, front
- Fits 2003-2005 Dodge Ram 3500, front
- ABS sensor type: sensor
- 33-spline hub design with 8 wheel studs included
- Square flange design with 4 flange bolt holes
- Wheel pilot diameter: 4.75 in
- Brake pilot diameter: 4.81 in
- Hub pilot diameter: 3.93 in
- Wheel stud size: 9/16-18
Detailed Description
This Dorman hub assembly is built for direct replacement on the front axle of 2003-2005 Dodge Ram 2500 and 2003-2005 Dodge Ram 3500 models. It includes the hub and bearing replacement components needed for service on the specified applications, along with ABS sensor provisions for vehicles equipped with anti-lock braking systems. The part number 930-636 is also referenced for OE-style replacement needs on these Ram truck applications.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Wheel bearing noise from a worn front hub assembly
- Front wheel play or looseness at the hub
- ABS warning light concerns related to hub-mounted sensor function
- Uneven wheel rotation caused by bearing wear
- Service needs on Dodge Ram 2500 and Dodge Ram 3500 front hubs
Installation Notes and Tips
Verify vehicle year, model, and front axle application before installation. Confirm spline count, flange dimensions, wheel stud size, and ABS connector style match the original part. Inspect the mating surfaces, axle components, and brake hardware during service to help ensure proper fit and operation. Part number 930-636 should be matched to the listed front fitment only.
Quality Assurance
Dorman replacement components are engineered for specific vehicle applications and built to address the original hub and bearing service requirements on the listed Ram trucks. Confirm all fitment details against the vehicle before installation.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2005 | Dodge | Ram 2500 | 4WD | Front | — |
| 2005 | Dodge | Ram 3500 | 4WD | Front | — |
| 2004 | Dodge | Ram 2500 | 4WD | Front | — |
| 2004 | Dodge | Ram 3500 | 4WD | Front | — |
| 2003 | Dodge | Ram 2500 | 4WD | Front | — |
| 2003 | Dodge | Ram 3500 | 4WD | Front | — |
