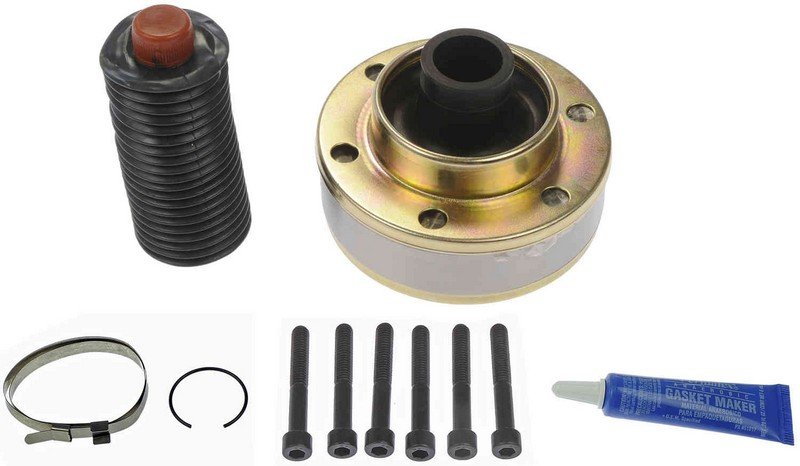

Dorman 932-203 Drive Shaft CV Joint - Rear Driveshaft - CV at Rear Axle

Overview of Dorman Drive Shaft CV Joint 932-203

The Dorman 932-203 Drive Shaft CV Joint is engineered for reliable driveline performance in Ford Mustang vehicles. Designed as a standard replacement part, this CV joint ensures smooth power transfer and durability under typical driving conditions.

• 30 spline quantity for precise fitment
• Includes grease for optimal lubrication
• Natural-colored boot for protection against contaminants
• 6 mounting holes with M10 x 1.5 bolt thread sizes
• Steel construction for strength and longevity
• Comes with gasket maker, boot clamp, and snap ring
• Bolt circle diameter of 3.738 inches
• Housing outside diameter of 4.46 inches and thickness of 1.358 inches
• Spline diameter of 1.145 inches and spline length of 1.042 inches

Detailed Product Description

This Dorman Drive Shaft CV Joint (part number 932-203) is specifically designed for Ford Mustang models, providing a direct replacement for worn or damaged CV joints. The 30 spline count and precise spline dimensions ensure a secure connection to the drive shaft, maintaining drivetrain integrity. The included grease supports smooth joint operation and reduces wear over time. The natural-colored boot protects the joint from dirt, moisture, and debris, extending the service life of the component. Constructed from durable steel, this CV joint withstands the stresses of daily driving and road conditions. The 6 mounting holes with M10 x 1.5 bolt threads allow for secure installation, while the included gasket maker, boot clamp, and snap ring facilitate proper sealing and fitment.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV joints on Ford Mustang drive shafts
• Eliminates clicking or popping noises during turns caused by joint wear
• Prevents grease leakage and contamination with included boot and clamps
• Restores smooth power transfer to wheels for improved drivability
• Addresses vibration issues related to faulty or worn CV joints

Installation Notes and Tips

When installing the Dorman 932-203 Drive Shaft CV Joint, ensure the spline count and dimensions match the vehicle’s specifications. Use the included grease to lubricate the joint thoroughly before assembly. Properly secure the boot with the provided clamp to prevent contamination. Verify bolt torque specifications for the M10 x 1.5 mounting bolts to maintain safe and reliable operation. It is recommended to inspect related driveline components during installation for any additional wear or damage.

Quality Assurance and Warranty

Dorman manufactures this drive shaft CV joint to meet standard replacement quality requirements, using steel materials for durability. The product is backed by Dorman’s quality control processes to ensure fitment and function for Ford Mustang applications. Warranty details are provided by Dorman and typically cover defects in material and workmanship under normal use.
