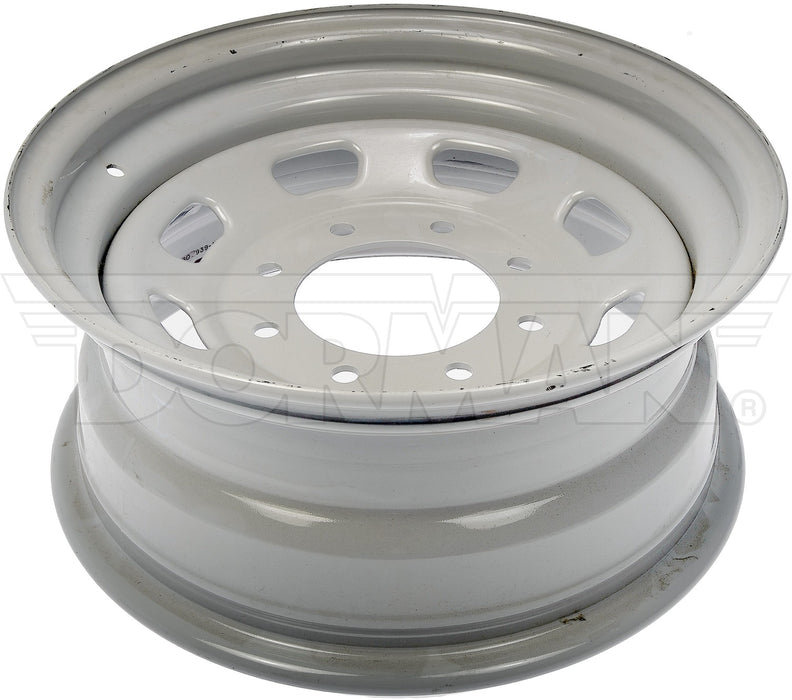

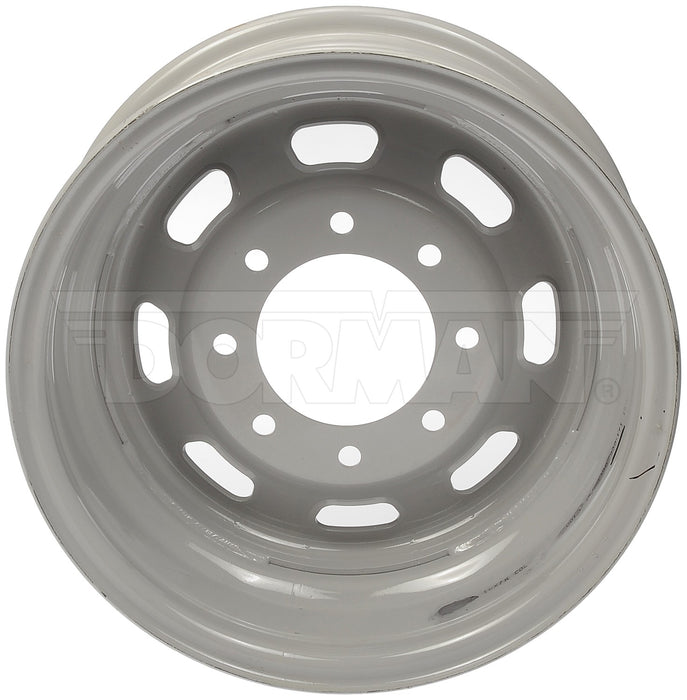

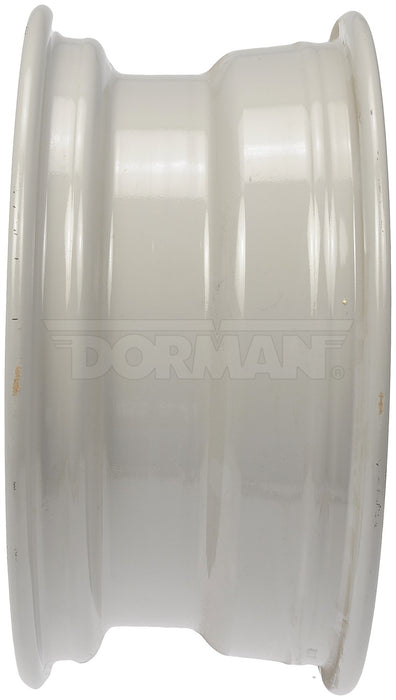

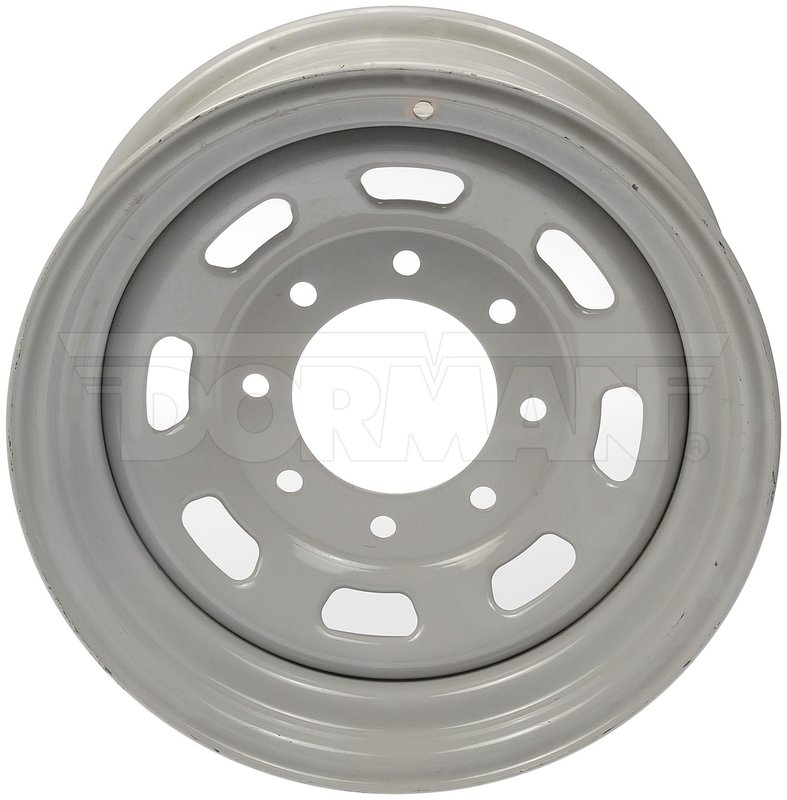

Dorman 939-172 Wheel
| Brand | Dorman 939-172 |
|---|---|
| Backspacing | 106 |
| Bolt Pattern | 8 x 170 |
| Bolt Pattern Diameter | 170 mm |
| Bore Diameter | 125.2 mm |
| Center Cap Included | No |
| Color | Silver |
| Diameter | 16 |
| Dimensions | 16 x 7 |
| Friction Material Thickness | Silver |
| Grade Type | Standard |
| Load Rating (lbs) | 2746 |
| Lug Hole Diameter | 16 |
| Lug Hole Quantity | 8 |
| Material | Steel |
| Offset (mm) | 4 mm |
| Package Contents | 1 Steel Wheel |
| Split Type | No |
| TPMS Compatible | Yes |
| Valve Stem Diameter | 11.5 |
| Width | 7 |
| Fits | Ford · 18 vehicles |
Direct replacement. Designed to replace the original wheel with a straightforward fit.
Steel construction. Durable material with a silver finish for a clean, factory-style look.
Safety tested. Thoroughly tested to meet safety standards for reliable performance.
Cross-references F81Z1015AA for the same application. See all 1.
Dorman 939-172 Steel Wheel for Ford Super Duty
Dorman 939-172 is a direct replacement steel wheel for select Ford heavy-duty truck applications. Built in a 16 x 7 size with an 8 x 170 bolt pattern, it is designed for vehicles that use 16-inch steel wheels with 8 cut-outs, including Ford Excursion and Ford F-250 Super Duty applications.
Key Features
- 16-inch diameter, 7-inch width steel wheel
- Silver finish with standard-grade construction
- 8 x 170 mm bolt pattern with 125.2 mm bore diameter
- 4 mm offset and 106 mm backspacing
- TPMS compatible for vehicles equipped with tire pressure monitoring systems
- Load rating of 2,746 lbs
- Direct replacement for OE-style fitment on select Ford trucks and SUV applications
Detailed Description
This Dorman wheel is engineered as a direct replacement for the original wheel on specific Ford applications, including the 1999-2004 Ford F-250 Super Duty, 1999-2004 Ford F-350 Super Duty with Single Rear Wheel (SRW), and 2000-2005 Ford Excursion. The steel construction and silver finish provide a practical OE-style appearance while maintaining the dimensions required for proper fitment. If you are replacing a damaged wheel or restoring a Ford Super Duty truck, Dorman 939-172 offers the correct size and bolt pattern for the listed vehicles.
This part cross-references Ford OE part number F81Z1015AA for the same application.
What This Wheel Helps Address
- Replacement for a bent, cracked, or corroded factory wheel
- Restoration after curb damage or road impact
- Wheel replacement for 1999-2004 Ford F-250 Super Duty and F-350 Super Duty SRW models
- Wheel replacement for 2000-2005 Ford Excursion models with 16-inch steel wheels and 8 cut-outs
- OE-style fitment correction when the original wheel is no longer serviceable
Installation Notes and Tips
Verify the vehicle’s wheel specifications before installation, including 16-inch steel wheel requirements, 8 x 170 bolt pattern, and bore diameter. This wheel is TPMS compatible. Confirm clearance, offset, and load requirements against the vehicle’s original equipment specifications before mounting tires.
Quality Assurance
Dorman states this replacement wheel is thoroughly tested to meet safety standards for reliable performance. The part is built to direct-replacement specifications for the listed Ford applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Ford | Excursion | N/A | 16 In. Steel Wheels; 8 Cut-outs |
| 2004 | Ford | Excursion | N/A | 16 In. Steel Wheels; 8 Cut-outs |
| 2004 | Ford | F-250 Super Duty | N/A | 16 In. Steel Wheels; 8 Cut-outs |
| 2004 | Ford | F-350 Super Duty | N/A | w/Single Rear Wheel (SRW); 16 In. Steel Wheels; 8 Cut-outs |
| 2003 | Ford | Excursion | N/A | 16 In. Steel Wheels; 8 Cut-outs |
| 2003 | Ford | F-250 Super Duty | N/A | 16 In. Steel Wheels; 8 Cut-outs |
| 2003 | Ford | F-350 Super Duty | N/A | w/Single Rear Wheel (SRW); 16 In. Steel Wheels; 8 Cut-outs |
| 2002 | Ford | Excursion | N/A | 16 In. Steel Wheels; 8 Cut-outs |
| 2002 | Ford | F-250 Super Duty | N/A | 16 In. Steel Wheels; 8 Cut-outs |
| 2002 | Ford | F-350 Super Duty | N/A | w/Single Rear Wheel (SRW); 16 In. Steel Wheels; 8 Cut-outs |
| 2001 | Ford | Excursion | N/A | 16 In. Steel Wheels; 8 Cut-outs |
| 2001 | Ford | F-250 Super Duty | N/A | 16 In. Steel Wheels; 8 Cut-outs |
| 2001 | Ford | F-350 Super Duty | N/A | w/Single Rear Wheel (SRW); 16 In. Steel Wheels; 8 Cut-outs |
| 2000 | Ford | Excursion | N/A | 16 In. Steel Wheels; 8 Cut-outs |
| 2000 | Ford | F-250 Super Duty | N/A | 16 In. Steel Wheels; 8 Cut-outs |
| 2000 | Ford | F-350 Super Duty | N/A | w/Single Rear Wheel (SRW); 16 In. Steel Wheels; 8 Cut-outs |
| 1999 | Ford | F-250 Super Duty | N/A | 16 In. Steel Wheels; 8 Cut-outs |
| 1999 | Ford | F-350 Super Duty | N/A | w/Single Rear Wheel (SRW); 16 In. Steel Wheels; 8 Cut-outs |
