Dorman 949-704 Suspension Shock Absorber - Front
OE Quality 60-Day Returns
Dorman

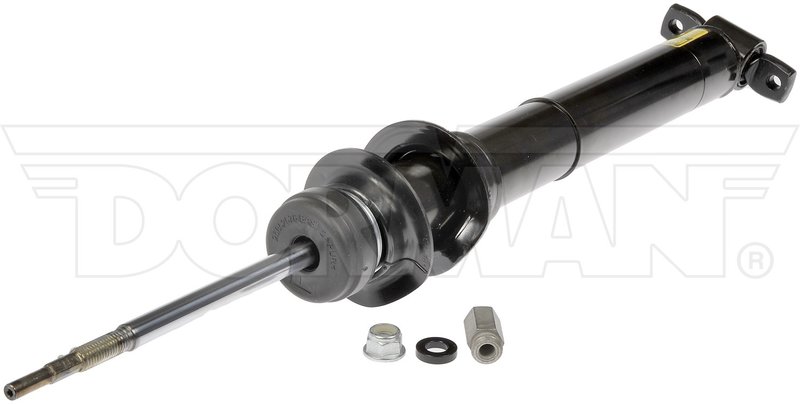

Dorman 949-704 Suspension Shock Absorber - Front

Brand Dorman 949-704
Position Front
Compressed Length 27.5
Travel Length 8
Coil Over Springs Included No
Dust Shield No
Extended Length 27.5
Shock Stroke 8
Adjustable Yes
Shock Absorber Rod End Measuring Point 4.2
Shock Absorber Body End Measuring Point 0.32
Lower Mount Type Thru-hole
Upper Mount Type Screw on
Boot Included No
Gas Charged Yes
Body Diameter 1.95
Package Contents 1 shock absorber
Fits Cadillac · 7 vehicles

OE-style replacement. Uses advanced magnetic ride control technology for factory-like damping response.

Gas-charged design. Helps maintain consistent suspension performance under changing road conditions.

Direct-fit mounting. Upper screw-on and lower thru-hole mounts match the listed application.

Cross-references 19302773 for the same application. See all 1.

$655.56Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Suspension Shock Absorbers are typically replaced in pairs, axle by axle.
Order total $655.56
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Suspension Shock Absorber options

Overview

Dorman 949-704 is a suspension shock absorber built for vehicles equipped with magnetic ride control. It restores controlled damping with the same advanced technology used in the original design, helping return the ride quality expected from the factory system.

Compatible with 2009-2015 Cadillac CTS, front, with RPO Code FE4 (Special Ride and Handling Suspension) and RPO Code F55 (Continuously Variable Real Time Magnetic Dampening).

Key Features

  • Adjustable shock absorber for precise suspension response.
  • Gas-charged construction for consistent damping performance.
  • Upper screw-on mount and lower thru-hole mount for direct replacement fitment.
  • 8 inches of travel with 27.5-inch compressed and extended length specifications.
  • Designed for magnetic ride control applications.

Detailed Description

This Dorman shock absorber is engineered as a replacement for magnetic ride control systems that have leaked or failed. Part number 949-704 uses the same advanced technology as the original equipment design, making it a practical option when servicing a Cadillac CTS with FE4 or F55 suspension equipment. The adjustable, gas-charged design supports controlled ride behavior while matching the mounting style and dimensions required for the application.

Part number 949-704 cross-references Monroe Shocks & Struts (e.g., 19302773) for the same application.

Fits 2009-2015 Cadillac CTS, front.

What It Is Used For

  • Replacing a leaking or failed magnetic ride control shock absorber.
  • Restoring damping response after ride quality becomes inconsistent.
  • Addressing suspension noise or poor control caused by worn internal components.
  • Returning factory-style suspension behavior on FE4 and F55-equipped vehicles.

Installation Notes and Tips

Verify the vehicle’s RPO codes FE4 and F55 before ordering. Confirm the upper screw-on and lower thru-hole mount styles, along with the listed compressed and extended lengths, before installation. This shock absorber is intended for the front position on the specified Cadillac CTS applications.

Quality Assurance

Dorman supplies replacement parts engineered to match original system requirements for serviceable fit and function. Part number 949-704 is built for magnetic ride control applications and is backed by Dorman’s replacement-part engineering approach.

Related reading

This part fits 7 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2015CadillacCTSFrontw/RPO Code FE4 (Special Ride and Handling Suspension); w/RPO Code F55 (Continuously Variable Real Time Magnetic Dampening)
2014CadillacCTSFrontw/RPO Code FE4 (Special Ride and Handling Suspension); w/RPO Code F55 (Continuously Variable Real Time Magnetic Dampening)
2013CadillacCTSFrontw/RPO Code FE4 (Special Ride and Handling Suspension); w/RPO Code F55 (Continuously Variable Real Time Magnetic Dampening)
2012CadillacCTSFrontw/RPO Code FE4 (Special Ride and Handling Suspension); w/RPO Code F55 (Continuously Variable Real Time Magnetic Dampening)
2011CadillacCTSFrontw/RPO Code FE4 (Special Ride and Handling Suspension); w/RPO Code F55 (Continuously Variable Real Time Magnetic Dampening)
2010CadillacCTSFrontw/RPO Code FE4 (Special Ride and Handling Suspension); w/RPO Code F55 (Continuously Variable Real Time Magnetic Dampening)
2009CadillacCTSFrontw/RPO Code FE4 (Special Ride and Handling Suspension); w/RPO Code F55 (Continuously Variable Real Time Magnetic Dampening)
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
19302773
