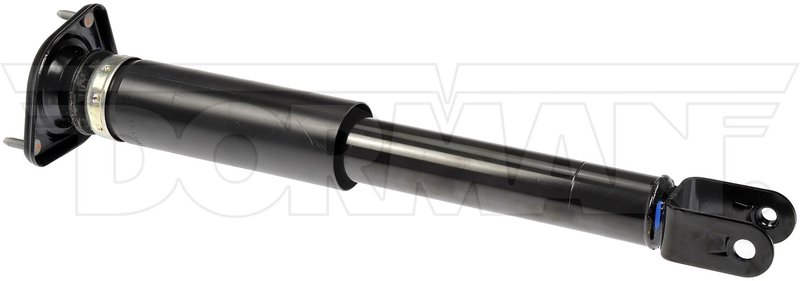

Dorman 949-710 Suspension Shock Absorber - Rear Right

Dorman 949-710 Rear Right Shock Absorber

Dorman 949-710 is a rear right suspension shock absorber for select Cadillac CTS models. It is built to match the original part’s fit and function, with gas-charged performance and durable construction for consistent ride control.

Key Features

• Fits 2009-2015 Cadillac CTS, rear right
• OE-style replacement shock absorber for the specified application
• Gas charged for responsive damping
• Dust shield included
• Lower mount type: thru-hole; upper mount type: bolt
• Shock stroke: 10; body diameter: 2.02
• Package contents: 1 shock absorber
• Part number: 949-710

Detailed Description

This Dorman suspension shock absorber is engineered for the rear right position on 2009-2015 Cadillac CTS models equipped with RPO Code FE4 Special Ride and Handling Suspension or RPO Code F55 Continuously Variable Real Time Magnetic Dampening. The design follows the original part’s fit and function, helping maintain the intended suspension geometry and ride characteristics. Dorman 949-710 also cross-references Monroe Shocks & Struts 19355571 for the same application.

Measured specifications include a compressed length of 24.6, extended length of 24.6, travel length of 18.4, and shock absorber rod end measuring point of 5.09 with a body end measuring point of 2.92. The unit includes a dust shield and does not include a boot or coil over spring. If you are replacing a worn rear shock on a Cadillac CTS, this part number 949-710 provides a direct-fit service option for the listed configuration.

Common Reasons for Replacement

• Rear suspension noise over bumps
• Excessive bouncing or reduced damping control
• Uneven ride quality at the rear of the vehicle
• Oil leakage or visible wear on the existing shock absorber
• Restoring rear right ride control on a Cadillac CTS with FE4 or F55 suspension

Installation Notes and Tips

Verify the vehicle’s RPO code before ordering to confirm the rear right application. This shock absorber uses a bolt upper mount and a thru-hole lower mount, so match the mounting points to the original unit during installation. Inspect related suspension components, including bushings and mounting hardware already on the vehicle, before completing the repair.

Quality Assurance

Dorman designs this shock absorber to match original fit and function on the specified vehicles and builds it for durable, reliable performance. Part number 949-710 is intended for 2009-2015 Cadillac CTS rear right applications with FE4 or F55 suspension codes.
