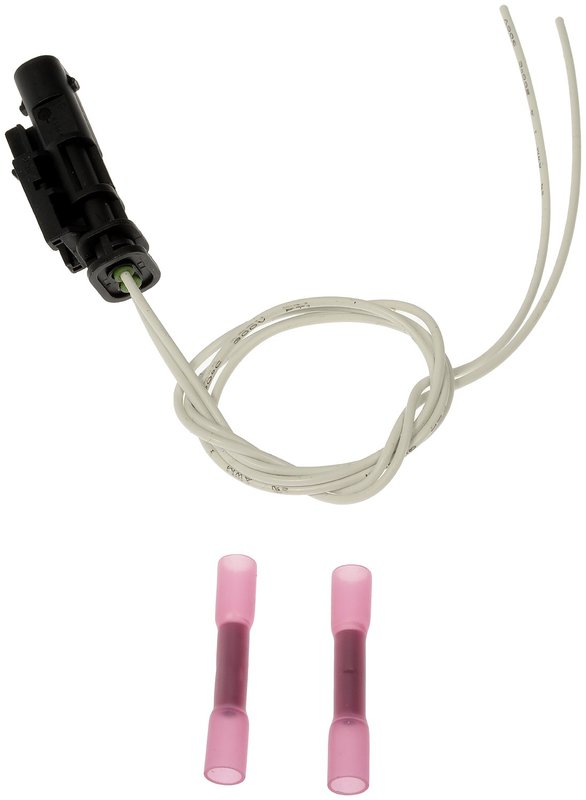

Dorman 949-804 Shock Absorber Control Actuator Connector - Front or Rear

Dorman 949-804 Shock Actuator Connector

Dorman 949-804 is a suspension shock absorber control actuator connector for vehicles equipped with magnetic or variable damping suspension. It replaces a damaged pigtail at the shock absorber connection point to restore electrical continuity and help prevent suspension warning lights.

Key Features

• Female connector with male blade terminals
• 2-terminal oval connector in black
• 16-gauge wire harness with 17.5 in. length
• Splices into the vehicle harness for a direct repair
• Built for magnetic ride and variable damping suspension applications
• Cross-references OE part number 19332631 for the same application

Detailed Description

This Dorman suspension shock absorber control actuator connector is used when the original connector at the magnetic shock absorber becomes damaged during service or replacement. It is a practical repair solution for maintaining proper electrical connection at the suspension actuator, which is critical for systems such as Magnetic Ride Control and Variable Damping Suspension. This part number 949-804 is commonly searched for Cadillac CT6, Cadillac ATS, Cadillac CTS, Chevrolet Camaro, Chevrolet Corvette, Chevrolet Silverado 1500, Chevrolet Silverado 1500 LD, GMC Sierra 1500, and GMC Sierra 1500 Limited applications.

Compatible With 2016-2020 Cadillac CT6, rear with Variable Damping Suspension; 2013-2019 Cadillac ATS, front with RPO Code FE3 Sport Suspension; 2014-2019 Cadillac CTS, front with RPO Code FE3 Sport Suspension; 2016-2019 Chevrolet Camaro, front with Variable Damping Suspension; 2014-2019 Chevrolet Corvette, rear with Magnetic Ride Control; 2019 Chevrolet Silverado 1500 LD, front with RPO Code Z95 MagneRide Suspension; 2019 GMC Sierra 1500 Limited, front with RPO Code Z95 MagneRide Suspension; 2015-2018 Chevrolet Silverado 1500, front with RPO Code Z95 MagneRide Suspension; 2015-2018 GMC Sierra 1500, front with RPO Code Z95 MagneRide Suspension.

What It Helps Fix

• Broken or damaged shock absorber electrical connector
• Intermittent suspension actuator signal loss
• Suspension warning lights caused by connector failure
• Corrosion or terminal damage at the harness connection
• Loss of proper function after magnetic shock absorber replacement

Installation Notes

Splice the pigtail into the vehicle harness and verify terminal orientation before connecting to the shock absorber actuator. Inspect the surrounding harness for heat, corrosion, or broken insulation before installation. This part number 949-804 is a direct-fit repair connector for the listed Cadillac, Chevrolet, and GMC suspension applications.

Quality Assurance

Dorman manufactures replacement electrical connectors for repair applications where the original connector is no longer serviceable. This connector is built to restore the suspension circuit connection on the listed vehicles and support proper system operation after repair.
