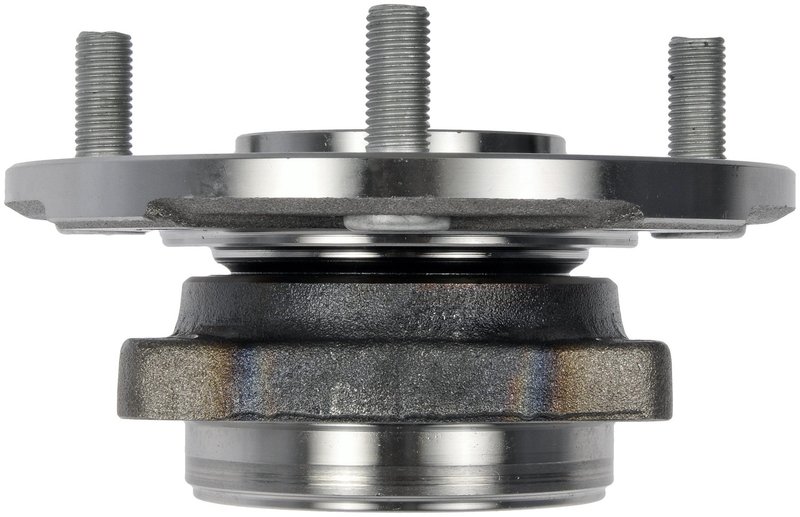

Dorman 950-003 Wheel Bearing and Hub Assembly - Front
| Brand | Dorman 950-003 |
|---|---|
| Position | Front |
| Anti Lock Brake Sensor Included | No |
| Anti Lock Braking System | No |
| Bolt Circle Diameter | 114.3 mm |
| Brake Pilot Diameter | 64.1 |
| Connector Quantity | 0 |
| Flange Bolt Hole Diameter | 10.7 |
| Flange Bolt Hole Quantity | 0 |
| Flange Bolts Included | No |
| Flange Diameter | 152 |
| Flange Included | Yes |
| Flange Offset | 47 |
| Flange Shape | Rectangular |
| Hub Pilot Diameter | 83 |
| Package Contents | 1 Wheel Hub Assembly |
| Spline Quantity | 28 |
| Wheel Pilot Diameter | 57.5 |
| Wheel Stud Quantity | 4 |
| Wheel Stud Size | 12 |
| Wheel Studs Included | Yes |
| Fits | Acura and Honda · 9 vehicles |
OE FIX pre-pressed hub. Critical components arrive assembled for a fast, simple, safe install.
Wheel bearing and hub assembly. A complete hub solution for replacing worn bearing components.
Flange included. Ready with studs already installed for fewer separate parts to handle.
Cross-references 44200SM1008 for the same application. See all 1.
Dorman 950-003 Front Wheel Hub Assembly
Dorman 950-003 is a pre-pressed front wheel bearing and hub assembly built for direct replacement on select Honda and Acura applications. It brings the critical hub components together in one assembly, helping reduce the time and equipment normally needed for a wheel bearing service.
- Pre-pressed hub assembly for a simpler front wheel bearing replacement
- OE FIX design reduces the need for a shop press during installation
- Includes wheel studs and flange already assembled
- 28-spline hub design with 4-wheel-stud configuration
- Flange diameter: 152 mm; bolt circle diameter: 114.3 mm
- Hub pilot diameter: 83 mm; wheel pilot diameter: 57.5 mm; brake pilot diameter: 64.1 mm
- Front application for 1990-1997 Honda Accord and 1997 Acura CL
This Dorman wheel bearing and hub assembly is engineered around the original hub layout for the front axle on 1990-1997 Honda Accord and 1997 Acura CL models. The pre-assembled design helps streamline service by combining the hub, bearing, flange, and studs into one replacement unit, making it a practical choice when servicing a worn front hub on a Honda Accord or Acura CL. Part number 950-003 is also referenced for the same application as 44200SM1008.
Common Problems This Part Can Address
- Front wheel bearing noise or roughness
- Excessive hub play or looseness at the wheel
- Damaged or worn wheel studs
- Service delays caused by press-fit bearing removal and installation
- Hub wear affecting wheel mounting and rotation
Installation Notes and Tips
Verify front axle fitment by year, make, and model before installation. Inspect the knuckle, axle splines, and mating surfaces for wear or damage before pressing or bolting the assembly into place. Because this is a pre-pressed hub assembly, it is suited to a faster front hub replacement process than rebuilding individual bearing components. Confirm wheel stud size, bolt circle diameter, and pilot dimensions against the original part before final assembly.
Quality Assurance
Dorman OE FIX components are built to simplify repairs by addressing common service challenges with a complete replacement design. Part number 950-003 is made for direct replacement use on the listed Honda Accord and Acura CL front applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1997 | Acura | CL | 2.2L | L4 | Front | — |
| 1997 | Honda | Accord | 2.2L | L4 | Front | — |
| 1996 | Honda | Accord | 2.2L | L4 | Front | — |
| 1995 | Honda | Accord | 2.2L | L4 | Front | — |
| 1994 | Honda | Accord | 2.2L | L4 | Front | — |
| 1993 | Honda | Accord | 2.2L | L4 | Front | — |
| 1992 | Honda | Accord | 2.2L | L4 | Front | — |
| 1991 | Honda | Accord | 2.2L | L4 | Front | — |
| 1990 | Honda | Accord | 2.2L | L4 | Front | — |
