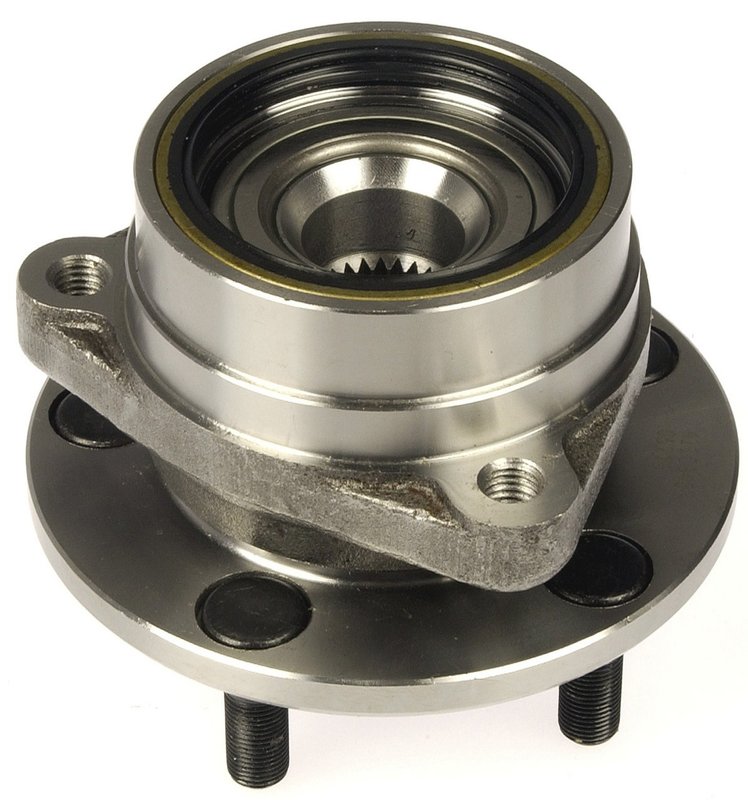

Dorman 951-038 Wheel Bearing and Hub Assembly - Front
| Brand | Dorman 951-038 |
|---|---|
| Position | Front |
| Anti Lock Brake Sensor Included | No |
| Anti Lock Braking System | No |
| Bolt Circle Diameter | 114.15 mm |
| Brake Pilot Diameter | 71.83 |
| Connector Quantity | 0 |
| Flange Bolt Hole Diameter | 12 |
| Flange Bolt Hole Quantity | 3 |
| Flange Bolts Included | No |
| Flange Included | Yes |
| Flange Offset | 45.7 |
| Flange Shape | Triangular |
| Hub Pilot Diameter | 100.04 |
| Package Contents | 1 Wheel Hub Assembly |
| Spline Quantity | 27 |
| Wheel Pilot Diameter | 71.4 |
| Wheel Stud Quantity | 5 |
| Wheel Stud Size | 14 |
| Wheel Studs Included | Yes |
| Fits | Jeep · 19 vehicles |
Complete hub assembly. Includes critical bearing components for a complete repair.
Flange included. Ready for a more complete wheel hub replacement.
Wheel studs included. Helps simplify assembly with key hardware already in place.
Cross-references GMB 720-0033, Raybestos Brakes 713107 and SKF BR930040 for the same application. See all 6.
Dorman 951-038 Wheel Bearing and Hub Assembly
Dorman 951-038 is a replacement wheel bearing and hub assembly for specific Jeep front applications. It combines the hub and critical bearing replacement components into one repair solution for 1984-1989 Jeep Cherokee, 1986-1989 Jeep Comanche, 1984-1989 Jeep Wagoneer, and 1987-1989 Jeep Wrangler front hubs.
Key Features
- Replacement wheel bearing and hub assembly for front axle service
- Flange included for direct hub replacement
- 5 wheel studs included with 14 mm wheel stud size
- 27-spline hub design
- Triangular flange shape with 3 flange bolt holes
- 114.15 mm bolt circle diameter
- Hub pilot diameter: 100.04 mm
- Wheel pilot diameter: 71.4 mm
- Brake pilot diameter: 71.83 mm
- ABS sensor not included; non-ABS application
Detailed Description
This Dorman wheel bearing and hub assembly, part number 951-038, is built for front-end hub repair on Jeep Cherokee, Jeep Comanche, Jeep Wagoneer, and Jeep Wrangler models listed in the fitment data. It is a complete hub-and-bearing replacement assembly that supports a straightforward repair when the original hub shows wear, looseness, or noise. The flange is included, and the assembly uses a 27-spline configuration with a triangular flange and 3-bolt mounting pattern. This part cross-references Timken 513107 and SKF BR930040 for the same application.
What It Is Used For
- Front wheel bearing noise on Jeep Cherokee, Jeep Comanche, Jeep Wagoneer, or Jeep Wrangler
- Wheel play or looseness at the hub
- Uneven hub rotation or rough bearing feel
- Replacement of a worn front hub assembly on 1984-1989 Jeep Cherokee front and 1987-1989 Jeep Wrangler front applications
- Service on 1986-1989 Jeep Comanche front and 1984-1989 Jeep Wagoneer front applications
Installation Notes and Tips
Verify the vehicle’s front hub dimensions, spline count, bolt circle diameter, and flange pattern before installation. This assembly is listed for non-ABS applications and does not include an ABS sensor. Confirm brake and wheel pilot measurements against the original part to ensure proper fitment on the Jeep Cherokee, Jeep Comanche, Jeep Wagoneer, or Jeep Wrangler front hub.
Quality Assurance
Dorman replacement hub assemblies are engineered for specific vehicle applications and built to match the required hub and bearing service points for the listed fitment. Use the confirmed vehicle data and part number 951-038 to verify application before installation.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1989 | Jeep | Cherokee | 4WD | Front | — |
| 1989 | Jeep | Comanche | 4WD | Front | — |
| 1989 | Jeep | Wagoneer | 4WD | Front | — |
| 1989 | Jeep | Wrangler | — | Front | — |
| 1988 | Jeep | Cherokee | 4WD | Front | — |
| 1988 | Jeep | Comanche | 4WD | Front | — |
| 1988 | Jeep | Wagoneer | 4WD | Front | — |
| 1988 | Jeep | Wrangler | — | Front | — |
| 1987 | Jeep | Cherokee | 4WD | Front | — |
| 1987 | Jeep | Comanche | 4WD | Front | — |
| 1987 | Jeep | Wagoneer | 4WD | Front | — |
| 1987 | Jeep | Wrangler | — | Front | — |
| 1986 | Jeep | Cherokee | 4WD | Front | — |
| 1986 | Jeep | Comanche | 4WD | Front | — |
| 1986 | Jeep | Wagoneer | 4WD | Front | — |
| 1985 | Jeep | Cherokee | 4WD | Front | — |
| 1985 | Jeep | Wagoneer | 4WD | Front | — |
| 1984 | Jeep | Cherokee | 4WD | Front | — |
| 1984 | Jeep | Wagoneer | 4WD | Front | — |
