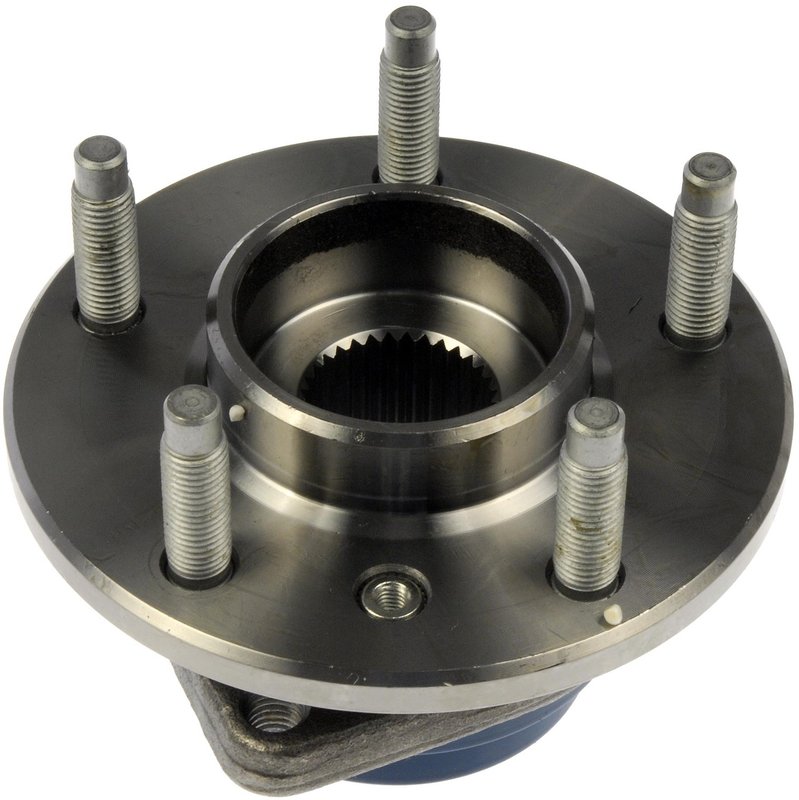

Dorman 951-069 Wheel Bearing and Hub Assembly - Front
| Brand | Dorman 951-069 |
|---|---|
| Position | Front |
| Spline Quantity | 33 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | 12 |
| Wheel Pilot Diameter | 70.1 |
| Brake Pilot Diameter | 70.6 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 89.9 |
| Flange Shape | Triangular |
| Flange Bolts Included | No |
| Anti Lock Braking System | No |
| Anti Lock Brake Sensor Included | No |
| Connector Quantity | 0 |
| Flange Bolt Hole Diameter | 12 |
| Flange Offset | 45 |
| Bolt Circle Diameter | 115 mm |
| Package Contents | 1 wheel hub assembly |
| Fits | Buick, Chevrolet, and Pontiac · 38 vehicles |
Complete repair. Includes the hub and critical bearing components for a full replacement.
Flange included. Triangular design with wheel studs already installed.
Wheel hub assembly for driveline and axle applications.
Cross-references GMB 730-0179, MOOG Hub Assemblies 513203 and Raybestos Brakes 713203 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Dorman 951-069 Front Wheel Hub Assembly
Dorman 951-069 is a replacement wheel bearing and hub assembly for front applications on select Chevrolet, Buick, and Pontiac vehicles. It combines the hub and critical bearing replacement components into one repair solution for common front-end driveline service.
- Front wheel bearing and hub assembly for select applications
- 33-spline design with a 5-lug wheel pattern
- Flange included with triangular flange shape
- Wheel stud size: 12 mm
- Wheel pilot diameter: 70.1 mm; brake pilot diameter: 70.6 mm
- Hub pilot diameter: 89.9 mm
- Bolt circle diameter: 115 mm
- Anti-lock braking system sensor not included
Fitment and Application Details
Compatible with front-wheel applications on select models, including Fits 2000-2008 Chevrolet Impala, front; Fits 2003-2008 Pontiac Grand Prix, front; Fits 2003-2007 Buick Rendezvous, front; Fits 2003-2007 Chevrolet Monte Carlo, front; Fits 2005 Buick Allure, front; Fits 2003-2005 Buick Century, front; Fits 2005 Buick LaCrosse, front; Fits 2003-2005 Pontiac Aztek, front; Fits 2003-2005 Pontiac Montana, front; and Fits 2003-2004 Buick Regal, front. This part cross-references Timken (e.g., HA590085) for the same application.
Detailed Description
This Dorman wheel bearing and hub assembly is built for direct replacement on specific front axle applications where the hub and bearing components are serviced together. The assembly includes the flange and wheel studs, and it uses a 115 mm bolt circle with a 5-stud layout to match the listed vehicle platforms. Dorman 951-069 is a practical service part for restoring proper wheel mounting and hub support on vehicles such as the Chevrolet Impala, Pontiac Grand Prix, and Buick Rendezvous.
What This Part Helps Address
- Wheel hub noise caused by worn bearing components
- Excessive play or looseness at the front wheel
- Hub surface wear that affects wheel mounting
- Service needs on vehicles with a 5-lug, 115 mm bolt circle front hub
- Replacement of a damaged or worn front hub assembly
Installation Notes and Tips
Verify front axle fitment, spline count, bolt circle diameter, and pilot dimensions before installation. Because the ABS sensor is not included, confirm the vehicle’s sensor setup and reuse or replace related components as needed. Always inspect the mating surfaces, fasteners, and brake components during hub service to help ensure proper seating and alignment.
Quality Assurance
Dorman replacement hub assemblies are built to match the listed application requirements and dimensional specifications for service on select vehicles. Confirm part number 951-069 against the vehicle’s year, make, model, and front position before installation.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2008 | Chevrolet | Impala | — | Front | — |
| 2008 | Pontiac | Grand Prix | — | Front | — |
| 2007 | Buick | Rendezvous | — | Front | — |
| 2007 | Chevrolet | Impala | — | Front | — |
| 2007 | Chevrolet | Monte Carlo | — | Front | — |
| 2007 | Pontiac | Grand Prix | — | Front | — |
| 2006 | Buick | Rendezvous | — | Front | — |
| 2006 | Chevrolet | Impala | — | Front | — |
| 2006 | Chevrolet | Monte Carlo | — | Front | — |
| 2006 | Pontiac | Grand Prix | — | Front | — |
| 2005 | Buick | Allure | — | Front | — |
| 2005 | Buick | Century | — | Front | — |
| 2005 | Buick | LaCrosse | — | Front | — |
| 2005 | Buick | Rendezvous | — | Front | — |
| 2005 | Chevrolet | Impala | — | Front | — |
| 2005 | Chevrolet | Monte Carlo | — | Front | — |
| 2005 | Pontiac | Aztek | — | Front | — |
| 2005 | Pontiac | Grand Prix | — | Front | — |
| 2005 | Pontiac | Montana | FWD | Front | — |
| 2004 | Buick | Century | — | Front | — |
| 2004 | Buick | Regal | — | Front | — |
| 2004 | Buick | Rendezvous | — | Front | — |
| 2004 | Chevrolet | Impala | — | Front | — |
| 2004 | Chevrolet | Monte Carlo | — | Front | — |
| 2004 | Pontiac | Aztek | — | Front | — |
| 2004 | Pontiac | Grand Prix | — | Front | — |
| 2004 | Pontiac | Montana | FWD | Front | — |
| 2003 | Buick | Century | — | Front | — |
| 2003 | Buick | Regal | — | Front | — |
| 2003 | Buick | Rendezvous | — | Front | — |
| 2003 | Chevrolet | Impala | — | Front | — |
| 2003 | Chevrolet | Monte Carlo | — | Front | — |
| 2003 | Pontiac | Aztek | — | Front | — |
| 2003 | Pontiac | Grand Prix | — | Front | — |
| 2003 | Pontiac | Montana | FWD | Front | — |
| 2002 | Chevrolet | Impala | — | Front | — |
| 2001 | Chevrolet | Impala | — | Front | — |
| 2000 | Chevrolet | Impala | — | Front | — |
| No rows match your filter. | |||||
