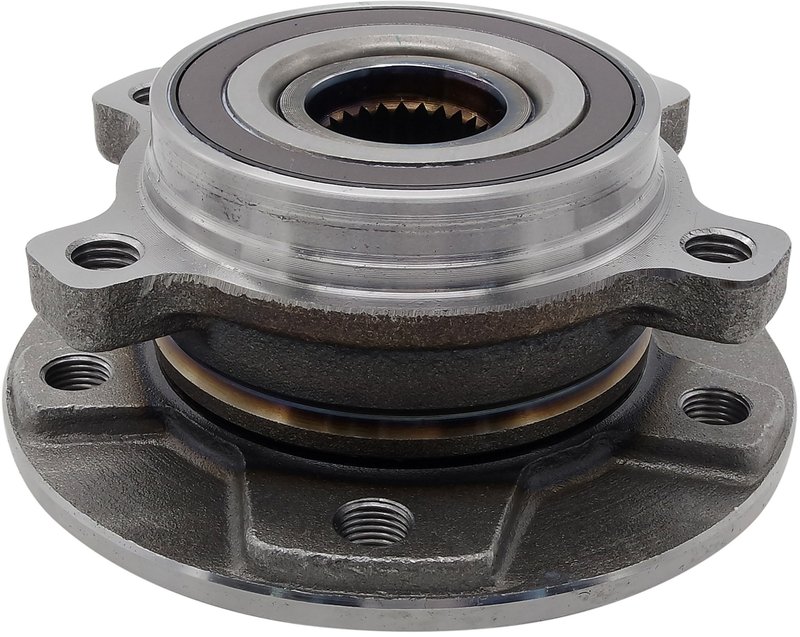

Dorman 951-115 Wheel Bearing and Hub Assembly - Front or Rear

Dorman 951-115 Wheel Hub Assembly

Dorman 951-115 is a replacement wheel bearing and hub assembly for specific front and rear applications on Jeep Renegade, Fiat 500X, and Dodge Hornet. It combines the hub and critical bearing components in one repair part for direct service on the listed vehicles.

Key Features

• Wheel bearing and hub assembly for driveline and axle service
• Steel construction
• Ball bearing design
• 27-spline driven hub configuration
• ABS sensor included with sensor-type anti-lock brake system setup
• 5 wheel studs with M12 x 1.25 thread size
• 4 flange bolt holes and rectangular flange shape
• Wheel pilot diameter: 65 mm; brake pilot diameter: 70 mm
• Bolt circle diameter: 110 mm

Detailed Description

This Dorman wheel bearing and hub assembly is built for direct replacement on the specified Jeep Renegade, Fiat 500X, and Dodge Hornet applications. It is engineered with the hub and bearing replacement components needed for a complete repair, along with ABS sensor integration for vehicles equipped with a sensor-based anti-lock braking system. The steel housing, ball bearing construction, and driven 27-spline design support proper fitment on the listed front and rear positions.

This part cross-references Timken HA590618 and SKF BR931003 for the same application. Use Dorman 951-115 when servicing a 2015-2023 Jeep Renegade front hub, a 2016-2023 Fiat 500X front hub, or a 2023-2025 Dodge Hornet rear hub.

What It Helps Fix

• Wheel bearing noise from a worn hub assembly
• ABS warning light concerns related to hub-mounted sensor issues
• Wheel looseness or play at the hub
• Uneven hub rotation or rough bearing feel
• Hub damage on front or rear service locations listed in fitment

Installation Notes

Verify the vehicle position before installation: Fits 2015-2023 Jeep Renegade, front; Fits 2016-2023 Fiat 500X, front; Fits 2023-2025 Dodge Hornet, rear. Confirm spline count, bolt circle, pilot diameters, and ABS sensor style against the original part before service. Professional installation and proper torque procedures are recommended for hub and bearing replacement.

Quality Assurance

Dorman replacement parts are built for specific vehicle applications and packaged as a direct-service hub assembly for the listed fitments. Part number 951-115 is specified for the confirmed Jeep Renegade, Fiat 500X, and Dodge Hornet applications shown above.
