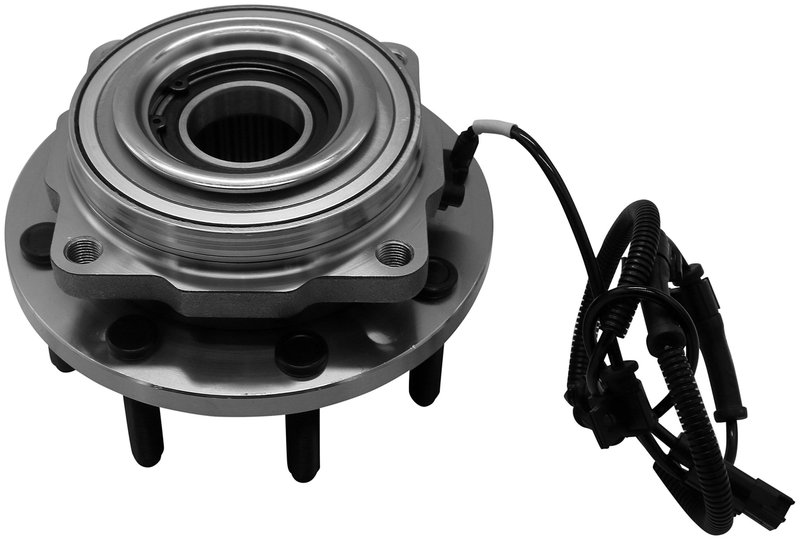

Dorman 951-135 Wheel Bearing and Hub Assembly - Front

Dorman 951-135 Front Wheel Hub Assembly

Dorman 951-135 is a replacement wheel bearing and hub assembly for front applications on select Ford Super Duty trucks. It combines the hub and critical bearing replacement components in one assembly for a complete repair on the listed vehicle applications.

• Front wheel bearing and hub assembly for select Ford F-250 Super Duty and Ford F-350 Super Duty models
• Fits 2011-2016 Ford F-250 Super Duty, front
• Fits 2011-2016 Ford F-350 Super Duty, front, w/Single Rear Wheel (SRW)
• Steel construction
• 32-spline drive configuration
• ABS sensor included with sensor-type anti-lock brake system
• Square flange design with 4 flange bolt holes
• Wheel studs included; M14 x 1.5 wheel stud size
• Wheel pilot diameter: 125; brake pilot diameter: 129
• Flange diameter: 203; flange offset: 46.3; bolt circle diameter: 170 mm

Detailed Application Coverage

This Dorman wheel bearing and hub assembly is built for front axle service on 2011-2016 Ford F-250 Super Duty and 2011-2016 Ford F-350 Super Duty, front with Single Rear Wheel (SRW). It is a direct-fit replacement for the original hub assembly on those applications and is listed under part number 951-135. This part cross-references Timken HA590435 and SKF BR930793 for the same application.

Common Repair Symptoms

• Front wheel bearing noise or growling
• Excessive wheel play or looseness at the hub
• ABS warning light related to the hub sensor circuit
• Uneven hub wear or damaged wheel studs
• Vibration or roughness from the front wheel end

Installation Notes

Verify front axle fitment, wheel pilot diameter, brake pilot diameter, and bolt circle before installation. Confirm the vehicle uses the sensor-type ABS setup and the correct 32-spline driven configuration. Inspect the mating surfaces, torque fasteners to the vehicle service specifications, and check ABS operation after installation. Part number 951-135 should be matched to the exact year, model, and front-position application listed above.

Quality Assurance

Dorman supplies this assembly as a replacement hub and bearing unit with the critical components needed for the repair. The steel construction, integrated ABS sensor, and application-specific dimensions support a service-level replacement for the listed Ford Super Duty front hub applications.
