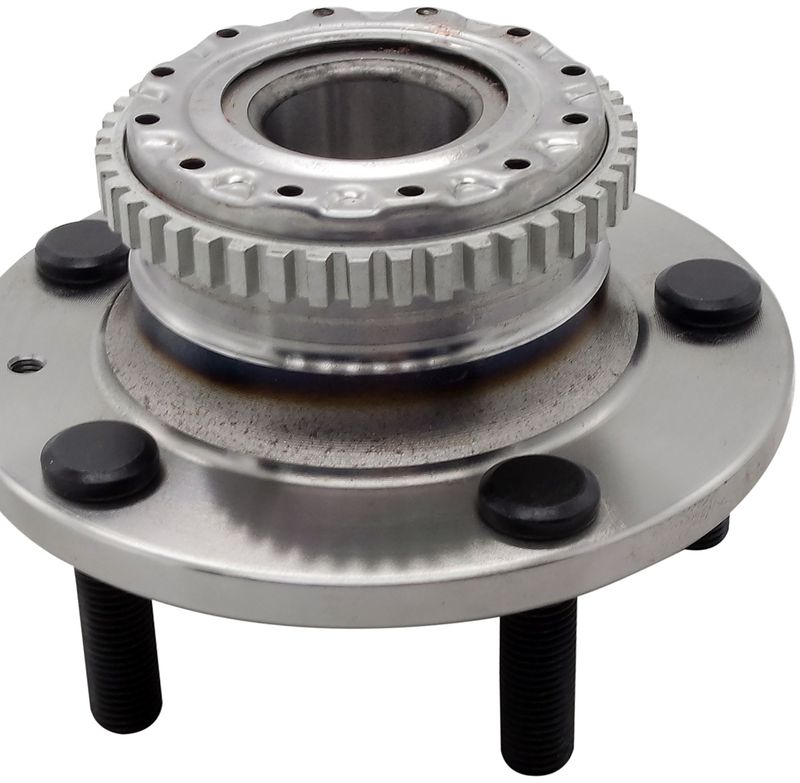

Dorman 951-291 Wheel Bearing and Hub Assembly - Rear
Rear Wheel Bearing and Hub Assembly for 2003 Hyundai Tiburon
Dorman 951-291 is a rear wheel bearing and hub assembly for the 2003 Hyundai Tiburon. It combines the hub and critical bearing replacement components into one repair assembly for the rear position on this vehicle.
- Fits 2003 Hyundai Tiburon, rear
- Wheel bearing and hub assembly with steel construction
- 5 wheel studs with M12 x 1.5 stud size
- Wheel pilot diameter: 67 mm; brake pilot diameter: 76 mm
- Non-driven application with ball bearing design
- ABS tone ring included for vehicles equipped with anti-lock braking system
- Flange not included; flange bolts and mounting hardware not included
Product Details
This Dorman 951-291 rear hub assembly is built for the 2003 Hyundai Tiburon and is intended for direct replacement of the wheel hub and bearing components at the rear axle. The assembly uses a Gen 2 ball bearing design, steel material, and a 114.3 mm bolt circle diameter. It also includes wheel studs and an ABS tone ring, while the anti-lock brake sensor is not included. This part cross-references SKF BR930398 for the same application.
Common Repair Applications
- Rear wheel bearing noise on a 2003 Hyundai Tiburon
- Excessive wheel play or looseness at the rear hub
- ABS warning concerns related to the rear tone ring
- Hub wear affecting wheel mounting and rotation
Installation Notes
Verify rear fitment before installation and confirm the wheel stud size, pilot diameters, and bolt circle diameter match the original setup. Because mounting hardware is not included, reuse or source the required fasteners as needed. Inspect the ABS tone ring and surrounding brake components during service to confirm proper sensor operation after installation.
Quality Assurance
Dorman replacement hub assemblies are engineered for specific vehicle applications and built to replace worn hub and bearing components with the correct fitment details for the 2003 Hyundai Tiburon. Part number 951-291 should be matched to the rear position only.
| Brand | Dorman |
|---|---|
| Part Number | 951-291 |
| Material | Acero |
| Material | Steel |
| 10010 | 85.8 |
| Spline Quantity | 0 |
| Flange Included | No |
| Flange Included | Non |
| Flange Bolt Hole Quantity | 0 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 67 |
| Brake Pilot Diameter | 76 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Oui |
| Wheel Studs Included | Sí |
| Wheel Studs Included | Yes |
| Flange Bolts Included | No |
| Flange Bolts Included | Non |
| Anti Lock Braking System | Oui |
| Anti Lock Braking System | Sí |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Aro dentado |
| Anti Lock Braking System Type | Tone ring |
| Bearing Generation | Gen 2 |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Connector Quantity | 0 |
| Drive Type | No conducido |
| Drive Type | Non-driven |
| Bearing Type | Ball |
| Bearing Type | Rótula |
| Flange Diameter | 139 |
This part fits 1 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2003 | Hyundai | Tiburon | Rear |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
