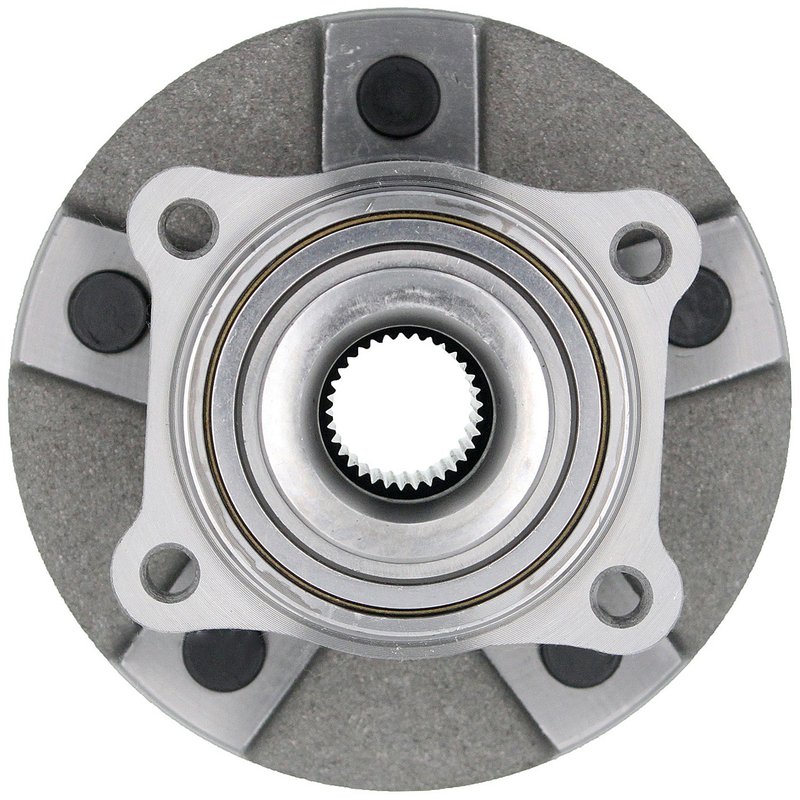

Dorman 951-840 Wheel Bearing and Hub Assembly - Rear
| Brand | Dorman 951-840 |
|---|---|
| Position | Rear |
| Anti Lock Brake Sensor Included | No |
| Anti Lock Braking System | No |
| Bolt Circle Diameter | 115 mm |
| Brake Pilot Diameter | 70.6 |
| Connector Quantity | 0 |
| Flange Bolt Hole Diameter | 10 |
| Flange Bolt Hole Quantity | 4 |
| Flange Bolts Included | No |
| Flange Diameter | 150 |
| Flange Included | Yes |
| Flange Offset | 65 |
| Flange Shape | Rectangular |
| Hub Pilot Diameter | 79 |
| Package Contents | Wheel Bearing and Hub Assembly |
| Spline Quantity | 33 |
| Wheel Pilot Diameter | 70.1 |
| Wheel Stud Quantity | 5 |
| Wheel Stud Size | 12 |
| Wheel Studs Included | Yes |
| Fits | Saturn, Pontiac, and Chevrolet · 8 vehicles |
Complete repair kit. Includes the hub and critical bearing components for a complete repair.
Hub and flange included. Comes with studs installed for a ready-to-assemble wheel hub.
Wheel bearing assembly. A replacement hub assembly for driveline and axle applications.
Cross-references MOOG Hub Assemblies 512230, 15871426 and WE61476 for the same application. See all 3.
Dorman 951-840 Rear Wheel Bearing Hub
Dorman 951-840 is a rear wheel bearing and hub assembly for specific Saturn Vue, Pontiac Torrent, and Chevrolet Equinox applications. It combines the hub and critical bearing replacement components into one repair assembly for direct service on the listed vehicles.
- Rear wheel bearing and hub assembly for confirmed applications
- Includes hub and critical bearing replacement components
- 33-spline design with 5 wheel studs included
- Flange included with 4 flange bolt holes
- Wheel pilot diameter: 70.1 mm; hub pilot diameter: 79 mm
- Bolt circle diameter: 115 mm
- Brake pilot diameter: 70.6 mm
- Flange shape: rectangular; flange offset: 65
Application Details
Compatible With 2002-2007 Saturn Vue, rear; 2006 Pontiac Torrent, rear; and 2005 Chevrolet Equinox, rear. This Dorman 951-840 hub assembly is built for rear axle service where the original wheel bearing or hub has worn, loosened, or developed noise. It cross-references MOOG Hub Assemblies 512230 for the same application.
Common Repair Symptoms
- Rear wheel bearing noise, growling, or rumbling
- Excessive wheel play or looseness at the hub
- Uneven wheel rotation caused by hub wear
- Vibration or roughness from the rear wheel end
- Service needs after hub or bearing component failure
Installation Notes
Verify rear fitment by year, make, and model before installation. Confirm spline count, bolt circle diameter, pilot diameters, and flange dimensions against the original part to ensure proper alignment and wheel-end fit. ABS sensor provisions are not included on this assembly, so match the vehicle’s original rear hub configuration before service. Use the vehicle service procedure for torque values and bearing/hub installation steps.
Quality Assurance
Dorman replacement parts are engineered for specific vehicle applications and built to restore the wheel-end assembly with the required hub and bearing components. Part number 951-840 is listed for rear service on the confirmed Saturn Vue, Pontiac Torrent, and Chevrolet Equinox applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Saturn | Vue | Rear | — |
| 2006 | Pontiac | Torrent | Rear | — |
| 2006 | Saturn | Vue | Rear | — |
| 2005 | Chevrolet | Equinox | Rear | — |
| 2005 | Saturn | Vue | Rear | — |
| 2004 | Saturn | Vue | Rear | — |
| 2003 | Saturn | Vue | Rear | — |
| 2002 | Saturn | Vue | Rear | — |
