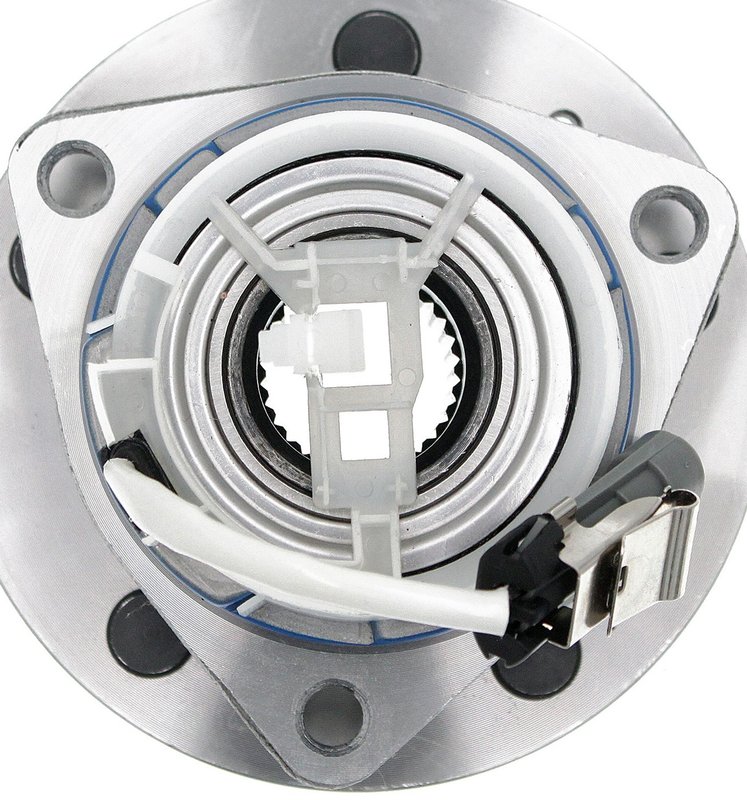

Dorman 951-847 Wheel Bearing and Hub Assembly - Rear
Dorman 951-847 Rear Wheel Bearing Hub
Dorman 951-847 is a replacement wheel bearing and hub assembly for specific rear applications on Cadillac CTS and Cadillac STS models. It combines the hub and critical bearing replacement components into one service part for a complete rear hub repair.
- Rear wheel bearing and hub assembly for select Cadillac applications
- Includes the hub and critical bearing replacement components
- 5 wheel studs with 12 mm stud size
- 30-spline design with a 115 mm bolt circle diameter
- ABS sensor included for vehicles equipped with anti-lock braking systems
- Triangular flange with 145.5 mm flange diameter and 42 mm offset
- Wheel pilot diameter: 70.1 mm; brake pilot diameter: 70.6 mm
Fitment Details
Compatible With rear hub service on 2003-2007 Cadillac CTS and 2005-2011 Cadillac STS, excluding Heavy Duty Brakes on STS applications. This Dorman 951-847 hub assembly is built for direct replacement use on the listed rear positions and matches the specified ABS sensor configuration.
This part cross-references MOOG Hub Assemblies (e.g., 512223) for the same application.
Common Repair Uses
- Rear wheel bearing noise or growling from the hub area
- ABS warning light caused by a failed hub sensor or bearing assembly
- Wheel looseness or play at the rear hub
- Uneven rear wheel rotation caused by worn bearing components
- Hub corrosion or damage affecting wheel mounting and sensor operation
Installation Notes
Verify rear fitment by year, model, and brake configuration before installation. Confirm the 115 mm bolt circle, 5-stud wheel pattern, and ABS sensor setup match the original part. Inspect the mounting flange and axle interface for wear or corrosion during service, and follow factory torque specifications during reassembly.
Quality Assurance
Dorman replacement hub assemblies are engineered for specific vehicle applications and built to replace the original rear wheel bearing and hub unit with the required bearing and hub components in one assembly.
| Brand | Dorman |
|---|---|
| Part Number | 951-847 |
| Spline Quantity | 30 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 2 |
| Wheel Stud Size | 12 |
| Wheel Pilot Diameter | 70.1 |
| Brake Pilot Diameter | 70.6 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Shape | Triangular |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Anti Lock Brake Sensor Included | Yes |
| Connector Quantity | 0 |
| Flange Bolt Hole Diameter | 12 |
| Flange Offset | 42 |
| Flange Diameter | 145.5 |
| Bolt Circle Diameter | 115 mm |
| Package Contents | 1 wheel bearing and hub assembly |
This part fits 14 vehicles. Search below:
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2011 | Cadillac | STS | Rear | Exc. Heavy Duty Brakes | |
| 2010 | Cadillac | STS | Rear | Exc. Heavy Duty Brakes | |
| 2009 | Cadillac | STS | Platinum | Rear | Exc. Heavy Duty Brakes |
| 2009 | Cadillac | STS | Base | Rear | Exc. Heavy Duty Brakes |
| 2008 | Cadillac | STS | Platinum | Rear | Exc. Heavy Duty Brakes |
| 2008 | Cadillac | STS | Base | Rear | Exc. Heavy Duty Brakes |
| 2007 | Cadillac | CTS | Base | Rear | |
| 2007 | Cadillac | STS | Base | Rear | Exc. Heavy Duty Brakes |
| 2006 | Cadillac | CTS | Base | Rear | |
| 2006 | Cadillac | STS | Base | Rear | Exc. Heavy Duty Brakes |
| 2005 | Cadillac | CTS | Base | Rear | |
| 2005 | Cadillac | STS | Rear | Exc. Heavy Duty Brakes | |
| 2004 | Cadillac | CTS | Base | Rear | |
| 2003 | Cadillac | CTS | Rear |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
