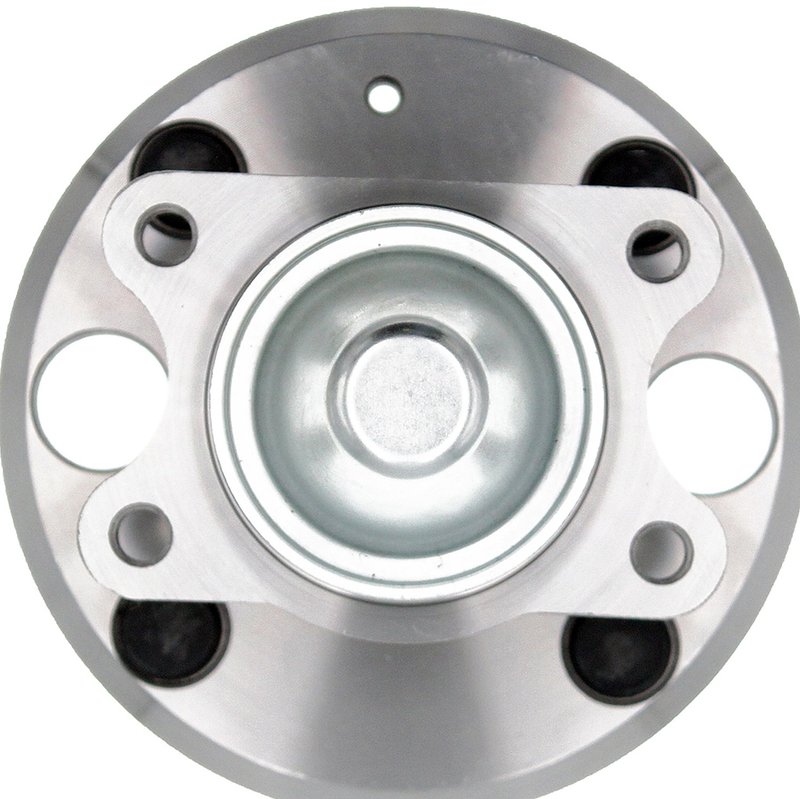

Dorman 951-848 Wheel Bearing and Hub Assembly - Rear

Dorman 951-848 Rear Wheel Bearing Hub Assembly

Dorman 951-848 is a rear wheel bearing and hub assembly for specific Hyundai and Kia applications. It combines the hub and critical bearing replacement components into one repair part for service on the rear axle.

Key Features

• Rear wheel bearing and hub assembly for direct replacement service
• Flange included with a rectangular flange shape
• 4 flange bolt holes with 10 mm flange bolt hole diameter
• 4 wheel studs included; 12 mm wheel stud size
• 114.3 mm bolt circle diameter
• Wheel pilot diameter: 67 mm; brake pilot diameter: 76 mm; hub pilot diameter: 66 mm
• Flange diameter: 148 mm; flange offset: 59 mm
• No ABS sensor provision and no anti-lock brake sensor included

Detailed Description

This Dorman wheel bearing and hub assembly is built for rear service on 1999-2005 Hyundai Sonata, 2001-2005 Kia Optima, and 2005 Kia Magentis vehicles built from 4/22/05. Part number 951-848 is a practical OE-style replacement when the original hub and bearing components need to be serviced together. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Fix

• Rear wheel play or looseness from worn hub bearing components
• Noise from a failing rear wheel bearing
• Uneven wheel mounting caused by hub wear
• Rear-end vibration related to hub or bearing deterioration
• Service issues on Hyundai Sonata, Kia Optima, and Kia Magentis rear hubs

Installation Notes and Tips

Verify rear fitment by year, model, and build date before installation. Confirm the 4-bolt flange pattern, 114.3 mm bolt circle diameter, and pilot dimensions match the original part. Because this assembly does not include an ABS sensor provision, it is intended for applications without rear wheel speed sensor integration. Part number 951-848 should be matched to the vehicle’s rear hub configuration before service.

Quality Assurance

Dorman replacement components are engineered for specific vehicle applications and built to support a complete rear hub and bearing repair. Use the vehicle fitment details and dimensional specifications to confirm correct application before installation.
