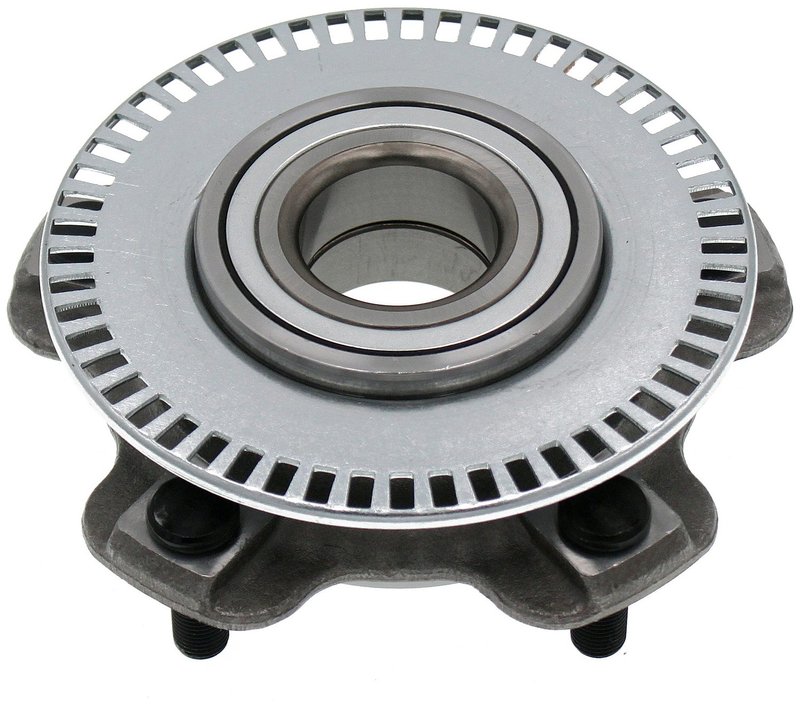

Dorman 951-874 Wheel Bearing and Hub Assembly - Front

Dorman 951-874 Front Wheel Hub Assembly

Dorman 951-874 is a replacement wheel bearing and hub assembly for front applications on select Suzuki models. It combines the hub and critical bearing replacement components in one unit for a complete repair on the specified vehicle applications.

• Front wheel bearing and hub assembly for select Suzuki driveline applications
• Includes the hub and critical bearing replacement components
• ABS tone ring included for vehicles equipped with anti-lock braking systems
• 5 wheel studs included; 12 mm wheel stud size
• Wheel pilot diameter: 105 mm; brake pilot diameter: 108.2 mm
• Hub pilot diameter: 148.5 mm; flange diameter: 169.5 mm
• Bolt circle diameter: 90 mm

Vehicle Fitment

• Fits 2002-2006 Suzuki XL-7, front.
• Fits 2001-2005 Suzuki Grand Vitara, front.
• Fits 2001-2004 Suzuki Vitara, front.

Detailed Description

This Dorman wheel bearing and hub assembly is built for front-end service on Suzuki XL-7, Grand Vitara, and Vitara models listed above. Part number 951-874 is specified with ABS support through a tone ring, while the anti-lock brake sensor is not included. The assembly also uses a 5-stud hub layout with a 90 mm bolt circle and 12 mm wheel studs, making it a direct-match service part for the listed applications. This part cross-references MOOG Hub Assemblies (e.g., 513193) for the same application.

What It Helps Repair

• Wheel bearing noise from a worn front hub assembly
• Excessive front wheel play or looseness
• ABS warning concerns related to a damaged tone ring-equipped hub
• Uneven hub wear on Suzuki XL-7, Grand Vitara, or Vitara front suspension

Installation Notes and Tips

Confirm front-position fitment by year and model before installation. Inspect the mating surfaces, axle interface, and ABS-related components during service. Because the anti-lock brake sensor is not included, reuse or replace the sensor as needed based on the vehicle condition. Verify wheel stud, pilot diameter, and bolt circle measurements against the original part before final assembly.

Quality Assurance

Dorman replacement hub assemblies are engineered for specific vehicle applications and built to restore the original hub and bearing function on the listed Suzuki models.
