Home› Driveline and Axles > Hubs and Related Components› Dorman 951-891 Wheel Bearing and Hub Assembly - Front
Dorman 951-891 Wheel Bearing and Hub Assembly - FrontOE Quality 60-Day Returns
Part #: 951-891

Dorman 951-891 Wheel Bearing and Hub Assembly - Front

Front
28 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$238.61Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Chevrolet and GMC, Express 3500 and Savana 3500
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Wheel Bearing and Hub Assembly options

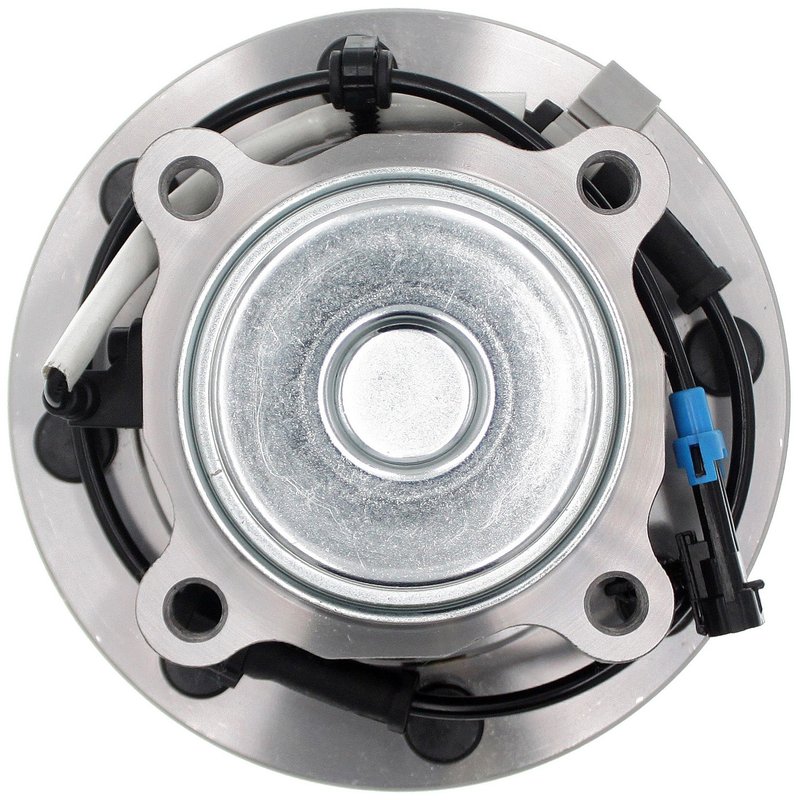

Dorman 951-891 Front Wheel Hub Assembly

Dorman 951-891 is a replacement wheel bearing and hub assembly for front applications on select Chevrolet Express 3500 and GMC Savana 3500 vans. It combines the hub and critical bearing replacement components in one unit for a complete repair on the listed heavy-duty front axle applications.

Key Features

  • Replacement wheel bearing and hub assembly for front use
  • Includes the hub and critical bearing replacement components
  • ABS sensor type design with anti-lock brake sensor included
  • Flange included with square flange shape
  • 8 wheel studs included with 14 mm wheel stud size
  • 1 connector with female connector and male terminals
  • 165 mm bolt circle diameter for listed applications
  • Cross-references Timken HA590353 and QuickSteer 515060 for the same application

Detailed Description

This Dorman wheel bearing and hub assembly, part number 951-891, is built for front installation on 2004-2017 Chevrolet Express 3500 and 2004-2017 GMC Savana 3500 models listed with the specified GVW ratings. It is a direct replacement style hub assembly with ABS sensor provisions, a 4-bolt flange pattern, 199.5 mm flange diameter, 65.1 mm flange offset, 105.8 mm hub pilot diameter, and 116.65 mm wheel pilot diameter. The assembly is intended for heavy-duty van front-end service where hub wear, bearing noise, or ABS-related faults are present.

Vehicle Fitment

  • Fits 2013-2017 Chevrolet Express 3500, front, 14,050 Lb. GVW
  • Fits 2013-2017 GMC Savana 3500, front, 14,050 Lb. GVW
  • Fits 2009-2012 Chevrolet Express 3500, front, 10,000 Lb. GVW; 12,300 Lb. GVW; 13,980 Lb. GVW; 14,200 Lb. GVW
  • Fits 2009-2012 GMC Savana 3500, front, 10,000 Lb. GVW; 12,300 Lb. GVW; 13,980 Lb. GVW; 14,200 Lb. GVW
  • Fits 2005-2008 Chevrolet Express 3500, front, 10,000 Lb. GVW; 12,300 Lb. GVW; 14,050 Lb. GVW
  • Fits 2005-2008 GMC Savana 3500, front, 10,000 Lb. GVW; 12,300 Lb. GVW; 14,050 Lb. GVW
  • Fits 2004 Chevrolet Express 3500, front, 10,000 Lb. GVW; 12,000 Lb. GVW; 12,300 Lb. GVW
  • Fits 2004 GMC Savana 3500, front, 10,000 Lb. GVW; 12,000 Lb. GVW; 12,300 Lb. GVW

What It Helps Fix

  • Front wheel bearing noise or rough rotation
  • Hub play or looseness at the wheel end
  • ABS warning light concerns tied to the hub sensor
  • Uneven wheel-end wear caused by a failing hub assembly
  • Brake or steering feel issues related to worn front hub components

Installation Notes and Tips

Verify GVW rating, front position, bolt circle diameter, and sensor connector details before installation on Chevrolet Express 3500 or GMC Savana 3500 models. Confirm the flange, pilot diameters, and ABS sensor configuration match the original hub assembly before service. Part number 951-891 should be checked against the vehicle’s existing hub and brake interface before final installation.

Quality Assurance

Dorman supplies this replacement hub assembly as a complete repair component for the listed applications, with the hub and critical bearing replacement parts included in the assembly. Part number 951-891 is also referenced by Timken HA590353 and QuickSteer 515060 for the same fitment group.

BrandDorman
Part Number951-891
Spline Quantity0
Flange IncludedYes
Flange Bolt Hole Quantity4
Wheel Stud Size14
Wheel Pilot Diameter116.65
Brake Pilot Diameter117.8
Wheel Stud Quantity8
Wheel Studs IncludedYes
Hub Pilot Diameter105.8
Flange ShapeSquare
Flange Bolts IncludedNo
Anti Lock Braking SystemYes
Anti Lock Braking System TypeSensor
Anti Lock Brake Sensor IncludedYes
Connector Quantity1
Connector GenderFemale
Terminal GenderMale
Flange Bolt Hole Diameter140
Flange Offset65.1
Flange Diameter199.5
Connector Terminal Quantity2
Bolt Circle Diameter165 mm
Package Contents1 wheel hub assembly

This part fits 28 vehicles. Search below:

YearMakeModelPositionNotes
2017ChevroletExpress 3500Front14,050 Lb. GVW
2017GMCSavana 3500Front14,050 Lb. GVW
2016ChevroletExpress 3500Front14,050 Lb. GVW
2016GMCSavana 3500Front14,050 Lb. GVW
2015ChevroletExpress 3500Front14,050 Lb. GVW
2015GMCSavana 3500Front14,050 Lb. GVW
2014ChevroletExpress 3500Front14,050 Lb. GVW
2014GMCSavana 3500Front14,050 Lb. GVW
2013ChevroletExpress 3500Front14,050 Lb. GVW
2013GMCSavana 3500Front14,050 Lb. GVW
2012ChevroletExpress 3500Front10,000 Lb. GVW; 12,300 Lb. GVW; 13,980 Lb. GVW; 14,200 Lb. GVW
2012GMCSavana 3500Front10,000 Lb. GVW; 12,300 Lb. GVW; 13,980 Lb. GVW; 14,200 Lb. GVW
2011ChevroletExpress 3500Front10,000 Lb. GVW; 12,300 Lb. GVW; 13,980 Lb. GVW; 14,200 Lb. GVW
2011GMCSavana 3500Front10,000 Lb. GVW; 12,300 Lb. GVW; 13,980 Lb. GVW; 14,200 Lb. GVW
2010ChevroletExpress 3500Front10,000 Lb. GVW; 12,300 Lb. GVW; 13,980 Lb. GVW; 14,200 Lb. GVW
2010GMCSavana 3500Front10,000 Lb. GVW; 12,300 Lb. GVW; 13,980 Lb. GVW; 14,200 Lb. GVW
2009ChevroletExpress 3500Front10,000 Lb. GVW; 12,300 Lb. GVW; 13,980 Lb. GVW; 14,200 Lb. GVW
2009GMCSavana 3500Front10,000 Lb. GVW; 12,300 Lb. GVW; 13,980 Lb. GVW; 14,200 Lb. GVW
2008ChevroletExpress 3500Front10,000 Lb. GVW; 12,300 Lb. GVW; 14,050 Lb. GVW
2008GMCSavana 3500Front10,000 Lb. GVW; 12,300 Lb. GVW; 14,050 Lb. GVW
2007ChevroletExpress 3500Front10,000 Lb. GVW; 12,300 Lb. GVW; 14,050 Lb. GVW
2007GMCSavana 3500Front10,000 Lb. GVW; 12,300 Lb. GVW; 14,050 Lb. GVW
2006ChevroletExpress 3500Front10,000 Lb. GVW; 12,300 Lb. GVW; 14,050 Lb. GVW
2006GMCSavana 3500Front10,000 Lb. GVW; 12,300 Lb. GVW; 14,050 Lb. GVW
2005ChevroletExpress 3500Front10,000 Lb. GVW; 12,300 Lb. GVW; 14,050 Lb. GVW
2005GMCSavana 3500Front10,000 Lb. GVW; 12,300 Lb. GVW; 14,050 Lb. GVW
2004ChevroletExpress 3500Front10,000 Lb. GVW; 12,000 Lb. GVW; 12,300 Lb. GVW
2004GMCSavana 3500Front10,000 Lb. GVW; 12,000 Lb. GVW; 12,300 Lb. GVW

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

51506084327583HA590353WE61310

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
