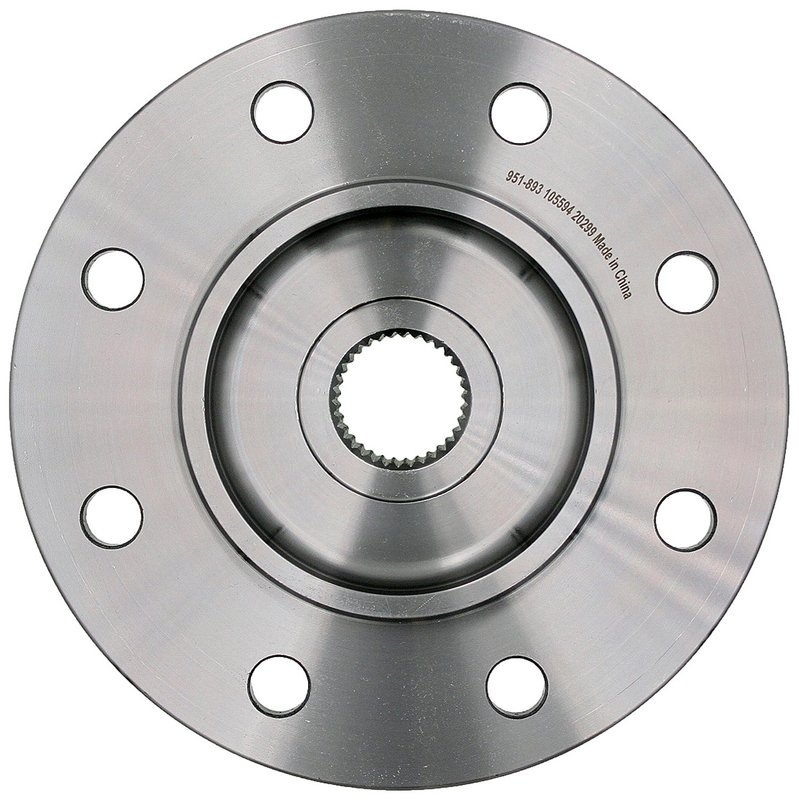

Dorman 951-893 Wheel Bearing and Hub Assembly - Front

Dorman 951-893 Front Wheel Hub Assembly

Dorman 951-893 is a replacement wheel bearing and hub assembly for specific front applications on the 1994-1997 Dodge Ram 3500. It combines the hub and critical bearing replacement components into one repair assembly for a direct service solution on the front axle.

• Fits 1994-1997 Dodge Ram 3500, front
• 33-spline hub design
• Flange included with square flange shape
• 8 wheel studs, 15.3 wheel stud size
• 165 mm bolt circle diameter
• Hub pilot diameter: 113.9 mm
• Wheel pilot diameter and brake pilot diameter: 116.6 mm
• Front hub assembly for non-ABS applications

Detailed Product Overview

This Dorman wheel bearing and hub assembly is built for the front of the Dodge Ram 3500 and is intended for vehicles that use a 33-spline hub with the listed flange and pilot dimensions. The assembly is specified with an 8-stud pattern, 165 mm bolt circle diameter, and a square flange profile to match the original application requirements. If you are replacing a worn front hub on a Dodge Ram 3500, part number 951-893 provides the core hub and bearing components needed for the repair.

This part cross-references Timken HA590018 and MOOG 515070 for the same application. It also cross-references 5010018AA and WE61196.

What This Part Helps Address

• Front wheel bearing noise or rough rotation
• Excessive wheel play from hub wear
• Vibration or looseness at the front wheel end
• Hub replacement needs on 1994-1997 Dodge Ram 3500 front axle service
• Mismatch from a damaged or worn 33-spline hub assembly

Installation Notes

Verify spline count, flange dimensions, bolt circle diameter, and pilot measurements before installation. This assembly is listed for front use and does not include an ABS sensor. Confirm the vehicle’s brake and hub configuration matches the application before service. Part number 951-893 should be installed on the specified Dodge Ram 3500 front position only.

Quality Assurance

Dorman replacement hub assemblies are cataloged for specific vehicle applications and built around the dimensional requirements listed for the part. For 1994-1997 Dodge Ram 3500 front service, 951-893 provides a direct-fit repair option based on the confirmed fitment and published specifications.
