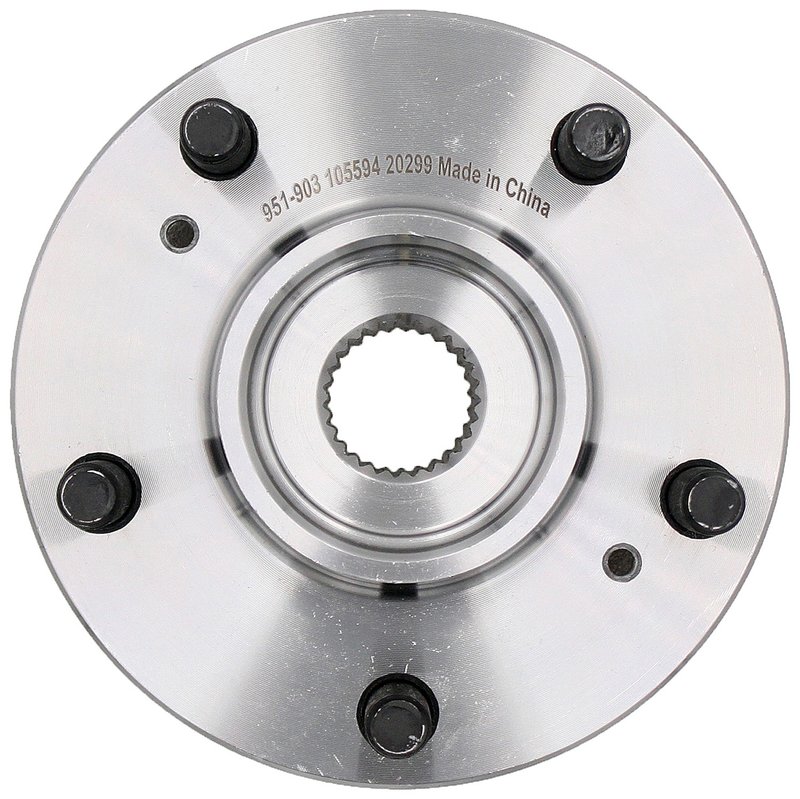

Dorman 951-903 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Mitsubishi Applications

Dorman 951-903 is a replacement wheel bearing and hub assembly for specific front-wheel applications on Mitsubishi Eclipse, Galant, and Endeavor models. It combines the hub and critical bearing replacement components into one repair solution for front-end service.

• Front wheel bearing and hub assembly for select Mitsubishi vehicles
• Includes the hub and critical bearing replacement components for a complete repair
• 5 wheel studs included; 12 mm wheel stud size
• 27-spline design with circular flange
• Bolt circle diameter: 114.3 mm
• Hub pilot diameter: 87 mm; wheel pilot diameter: 67 mm; brake pilot diameter: 69 mm
• Flange diameter: 141.8 mm; flange offset: 40.5 mm
• ABS sensor not included

Detailed Product Overview

Built for direct replacement service, Dorman 951-903 is a front wheel bearing and hub assembly for 2006-2012 Mitsubishi Eclipse, 2004-2012 Mitsubishi Galant, and 2004-2011 Mitsubishi Endeavor. The assembly is specified with a 27-spline hub, 5 wheel studs, a 114.3 mm bolt circle diameter, and a circular flange to match the listed applications. This part cross-references Timken HA590108 and MOOG 513219 for the same application. Use Dorman 951-903 when servicing a Mitsubishi Eclipse front hub, Mitsubishi Galant front hub, or Mitsubishi Endeavor front hub where the listed dimensions and fitment match.

Common Repair Uses

• Wheel bearing noise from the front hub area
• Excessive wheel play or looseness at the hub
• Vibration or rough rotation from a worn bearing assembly
• Hub wear on Mitsubishi Eclipse, Galant, or Endeavor front suspension service
• Replacement after hub or bearing damage during brake or driveline repair

Installation Notes and Tips

Confirm front position fitment and verify spline count, bolt circle diameter, flange dimensions, and pilot diameters before installation. This assembly does not include an ABS sensor, and flange bolts are not included. Always inspect the mating surfaces, axle interface, and surrounding suspension components during service to help ensure proper hub seating and wheel alignment.

Quality Assurance

Dorman replacement hub assemblies are built for specific vehicle applications and packaged as a direct-fit repair component. Verify the part number 951-903 against the vehicle’s front hub specifications before installation.
