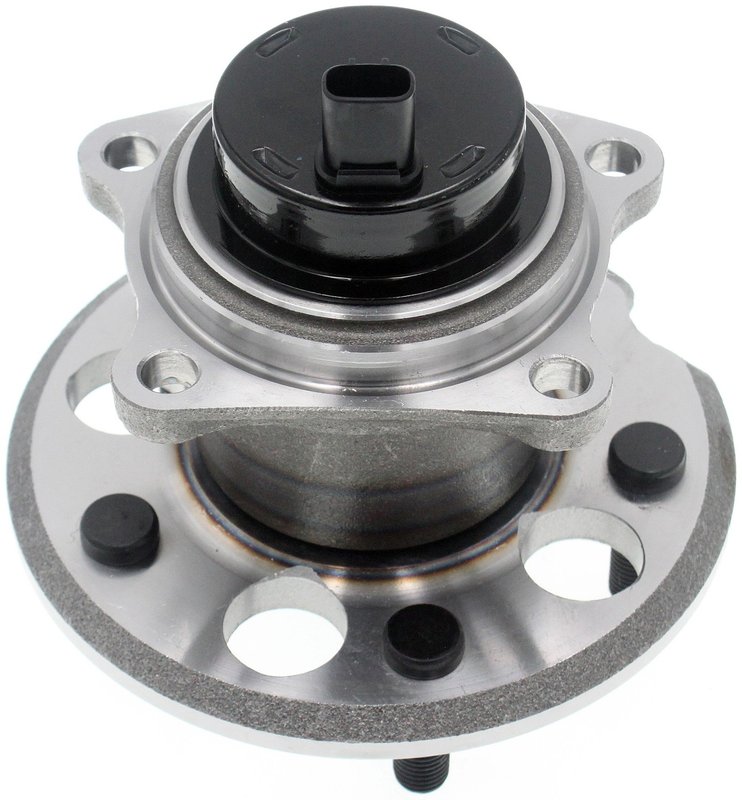

Dorman 951-934 Wheel Bearing and Hub Assembly - Rear

Dorman 951-934 Rear Hub Bearing Assembly

Dorman 951-934 is a replacement wheel bearing and hub assembly for specific rear applications on the 2004-2010 Toyota Sienna. It combines the hub and critical bearing replacement components in one assembly for a complete repair on the listed vehicle fitment.

Key Features

• Replacement wheel bearing and hub assembly for rear service
• Fits 2004-2010 Toyota Sienna, rear
• Includes ABS sensor for vehicles equipped with anti-lock braking system sensor input
• Steel construction
• Hub flange included with 5 wheel studs and M12 x 1.5 wheel stud size
• Square flange design with 4 flange bolt holes
• Wheel pilot diameter: 60 mm; brake pilot diameter: 62 mm
• Flange diameter: 106 mm; flange offset: 69 mm; bolt circle diameter: 114.3 mm

Product Details

This Dorman wheel bearing and hub assembly is built for rear fitment on the Toyota Sienna from 2004 through 2010. It is a direct replacement style part that brings together the hub, bearing components, and ABS sensor required for the specified application. Part number 951-934 is also referenced for interchange with OE-style numbers used on the same application, including 4245008020 and PT512280, and it cross-references MOOG Hub Assemblies 512280 for the same application.

Common Repair Symptoms

• Rear wheel noise or rumbling from a worn hub bearing
• ABS warning light caused by a failed wheel speed sensor
• Wheel looseness or vibration from hub wear
• Uneven braking feedback related to hub or sensor issues
• Corrosion or damage at the rear hub mounting area

Installation Notes

Verify rear fitment before ordering: Fits 2004-2010 Toyota Sienna, rear. Confirm the flange, bolt circle, wheel stud, and ABS sensor connector details against the original part before installation. Part number 951-934 is intended for the listed vehicle application and should be matched to the vehicle’s rear hub configuration.

Quality Assurance

Dorman supplies replacement driveline and chassis components for specific vehicle applications, and this assembly is built to replace the original hub and bearing service parts on the listed Toyota Sienna fitment.
