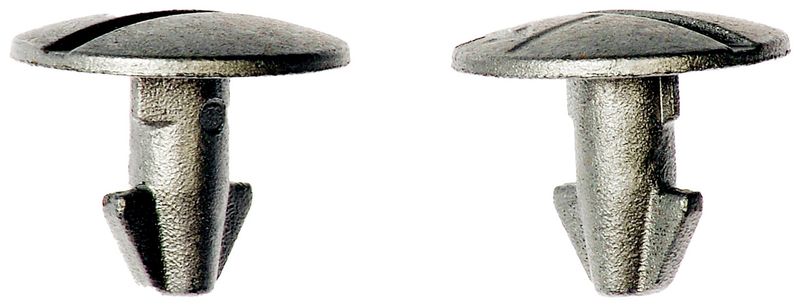

Dorman 961-046D Engine Splash Shield Retainer - Lower
| Brand | Dorman 961-046D |
|---|---|
| Position | Lower |
| Material | Cinc |
| Material | Zinc |
| Head Diameter | 20 |
| Color | Plateado |
| Color | Silver |
| Inside Diameter | 6 |
| Thickness | 2.8 |
| Finish | Dacromet |
| Outside Diameter | 10.7 |
| Type | Splash shield pin screw |
| Type | Tornillo de pasador del protector contra salpicaduras |
| Center Groove Diameter | 6 |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard |
| Shaft Diameter | 6 |
| SAE or Metric | Metric |
| SAE or Metric | Métrico |
| ACQ Rated | No |
| ACQ Rated | Non |
| Callout Size | 6 mm |
| Contenidos del paquete | 2 tornillos de pasador del protector contra salpicaduras |
| Fastener Length | 13.74 mm |
| Overall Length | 16.75 mm |
| Package Contents | 2 splash shield pin screws |
| Tamaño nominal | 6mm |
| Fits | Acura and Honda · 33 vehicles |
Standard replacement. Matches the original retainer’s function and versatility.
Zinc construction. Built from quality materials for long service life.
Dacromet finish. Adds corrosion resistance for dependable performance.
Cross-references Gates 22943 and 90674TY2A01 for the same application. See all 2.
Dorman 961-046D Engine Splash Shield Retainer
Dorman 961-046D is a metric engine splash shield pin screw made from zinc with a silver Dacromet finish for corrosion resistance. It restores the fastening function of the original retainer on select Acura and Honda lower splash shield applications.
Key Features
- Engine splash shield retainer in standard replacement grade
- Metric 6 mm callout size with 6 mm shaft diameter
- Zinc construction with Dacromet finish
- Silver finish for a clean OE-style appearance
- Head diameter: 20 mm; overall length: 16.75 mm
- Designed for lower splash shield mounting points
Detailed Description
This Dorman splash shield pin screw is built to match the function and versatility of the original equipment retainer, helping secure the lower engine splash shield in place. The 961-046D uses a 6 mm metric design with a 13.74 mm fastener length and 10.7 mm outside diameter, making it a practical OE-style replacement for worn, missing, or damaged retainers. It is a direct-fit hardware solution for select Acura ILX, RLX, and TLX models, as well as Honda Accord, Civic, and CR-V applications with lower-position splash shield mounting.
This part cross-references Gates 22943 for the same application.
Vehicle Fitment
- Fits 2016-2020 Acura ILX, lower
- Fits 2014-2020 Acura RLX, lower
- Fits 2015-2020 Acura TLX, lower
- Fits 2014-2020 Honda Accord, lower
- Fits 2017-2020 Honda Civic, lower
- Fits 2017-2020 Honda CR-V, lower
Common Uses
- Replacing a missing lower engine splash shield fastener
- Restoring secure attachment after a broken pin screw
- Addressing loose underbody shield panels
- Repairing damaged splash shield mounting points
- Maintaining proper lower shield retention on Acura and Honda vehicles
Installation Notes
Verify the 6 mm metric size and lower mounting location before installation. Inspect the splash shield hole and surrounding panel for wear or deformation, and replace any damaged mounting hardware as needed. Confirm fitment by matching the vehicle year, make, model, and lower position listed for Acura ILX, RLX, TLX, Honda Accord, Civic, and CR-V.
Quality Assurance
Dorman manufactures this retainer as a standard replacement part using quality materials for long service life and OE-style function. Part number 961-046D is engineered for dependable splash shield retention in the listed applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | Acura | ILX | Lower | Package Quantity: 2 |
| 2020 | Acura | RLX | Lower | Package Quantity: 2 |
| 2020 | Acura | TLX | Lower | Package Quantity: 2 |
| 2020 | Honda | Accord | Lower | Package Quantity: 2 |
| 2020 | Honda | Civic | Lower | Package Quantity: 2 |
| 2020 | Honda | CR-V | Lower | Package Quantity: 2 |
| 2019 | Acura | ILX | Lower | Package Quantity: 2 |
| 2019 | Acura | RLX | Lower | Package Quantity: 2 |
| 2019 | Acura | TLX | Lower | Package Quantity: 2 |
| 2019 | Honda | Accord | Lower | Package Quantity: 2 |
| 2019 | Honda | Civic | Lower | Package Quantity: 2 |
| 2019 | Honda | CR-V | Lower | Package Quantity: 2 |
| 2018 | Acura | ILX | Lower | Package Quantity: 2 |
| 2018 | Acura | RLX | Lower | Package Quantity: 2 |
| 2018 | Acura | TLX | Lower | Package Quantity: 2 |
| 2018 | Honda | Accord | Lower | Package Quantity: 2 |
| 2018 | Honda | Civic | Lower | Package Quantity: 2 |
| 2018 | Honda | CR-V | Lower | Package Quantity: 2 |
| 2017 | Acura | ILX | Lower | Package Quantity: 2 |
| 2017 | Acura | RLX | Lower | Package Quantity: 2 |
| 2017 | Acura | TLX | Lower | Package Quantity: 2 |
| 2017 | Honda | Accord | Lower | Package Quantity: 2 |
| 2017 | Honda | Civic | Lower | Package Quantity: 2 |
| 2017 | Honda | CR-V | Lower | Package Quantity: 2 |
| 2016 | Acura | ILX | Lower | Package Quantity: 2 |
| 2016 | Acura | RLX | Lower | Package Quantity: 2 |
| 2016 | Acura | TLX | Lower | Package Quantity: 2 |
| 2016 | Honda | Accord | Lower | Package Quantity: 2 |
| 2015 | Acura | RLX | Lower | Package Quantity: 2 |
| 2015 | Acura | TLX | Lower | Package Quantity: 2 |
| 2015 | Honda | Accord | Lower | Package Quantity: 2 |
| 2014 | Acura | RLX | Lower | Package Quantity: 2 |
| 2014 | Honda | Accord | Lower | Package Quantity: 2 |
