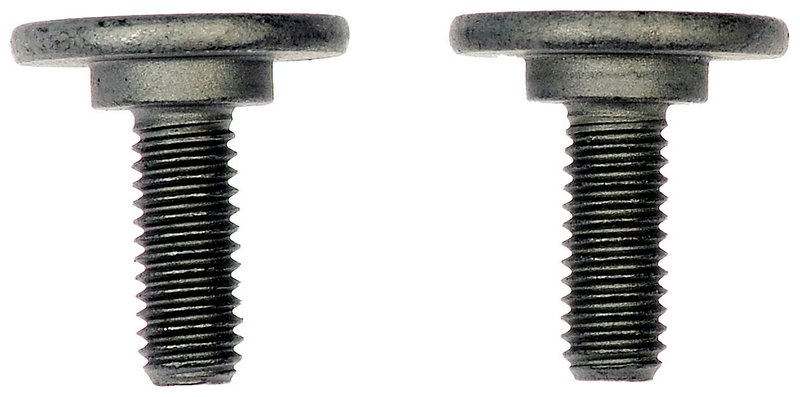

Dorman 961-049D Engine Splash Shield Retainer - Lower
| Brand | Dorman 961-049D |
|---|---|
| Position | Lower |
| Material | Acero |
| Material | Steel |
| Head Diameter | 18 |
| Thread Direction | Clockwise |
| Thread Direction | En sentido horario |
| Head Shape | Redondo |
| Head Shape | Round |
| Color | Plateado |
| Color | Silver |
| Shank Length | 2 |
| Finish | Geomet |
| Type | Retenedor del guardabarros |
| Type | Splash shield retainer |
| Heat Hardened | No |
| Heat Hardened | Non |
| Specialty | No |
| Specialty | Non |
| Self Drilling | No |
| Self Drilling | Non |
| Self Tapping | No |
| Self Tapping | Non |
| Thread Length | 14.95 |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard |
| Thread Type | Media |
| Thread Type | Medium |
| SAE or Metric | Metric |
| SAE or Metric | Métrico |
| Thread Size | M6-1.0 |
| Head Drive Type | Phillips |
| Fits | Honda · 12 vehicles |
Steel construction. Provides a durable standard replacement for fastening jobs.
Geomet finish. Helps resist corrosion for long-lasting performance.
Phillips drive. Allows easy installation with common tools.
Cross-references 90105TBAA00 for the same application. See all 1.
Engine Splash Shield Retainer for Honda
Dorman 961-049D is a metric Phillips-drive engine splash shield retainer made from steel with a silver Geomet finish. It uses an M6-1.0 thread and a round head design to secure lower underbody shielding on select Honda applications, including the Civic and CR-V.
Key Features
- Part number: 961-049D
- Steel construction with Geomet finish
- Metric M6-1.0 thread size
- Phillips drive with round head
- Standard replacement-grade fastener
- Fits lower splash shield mounting locations
- Compatible with Honda Civic and Honda CR-V applications
Product Details
This Dorman engine splash shield retainer is built for lower body hardware applications where a secure threaded fastener is needed to hold the splash shield in place. The M6-1.0 x 15 mm callout, 15 mm fastener length, and medium thread profile support a direct-fit style replacement for select Honda underbody mounting points. If you are replacing a worn or missing lower shield fastener on a Honda Civic or Honda CR-V, 961-049D provides the correct metric thread format and Phillips drive style for the application.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Fix
- Loose or hanging lower engine splash shields
- Missing or damaged underbody retainer hardware
- Rattling caused by unsecured shield panels
- Improper fastening after splash shield service
- Corroded or stripped metric shield screws
Installation Notes and Tips
Verify thread size, length, and head style before installation. This retainer uses a clockwise thread direction and Phillips drive, so use the correct driver to avoid stripping the head. Confirm the lower mounting location and compare the original fastener to the Dorman 961-049D before installation on the vehicle.
Quality Assurance
Dorman supplies a broad range of automotive fastening hardware in multiple sizes and thread styles, and this retainer follows standard replacement specifications for the listed Honda applications. Fits 2016-2021 Honda Civic, lower. Fits 2017-2022 Honda CR-V, lower.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Honda | CR-V | Lower | Package Quantity: 2 |
| 2021 | Honda | Civic | Lower | Package Quantity: 2 |
| 2021 | Honda | CR-V | Lower | Package Quantity: 2 |
| 2020 | Honda | Civic | Lower | Package Quantity: 2 |
| 2020 | Honda | CR-V | Lower | Package Quantity: 2 |
| 2019 | Honda | Civic | Lower | Package Quantity: 2 |
| 2019 | Honda | CR-V | Lower | Package Quantity: 2 |
| 2018 | Honda | Civic | Lower | Package Quantity: 2 |
| 2018 | Honda | CR-V | Lower | Package Quantity: 2 |
| 2017 | Honda | Civic | Lower | Package Quantity: 2 |
| 2017 | Honda | CR-V | Lower | Package Quantity: 2 |
| 2016 | Honda | Civic | Lower | Package Quantity: 2 |
| No rows match your filter. | ||||
