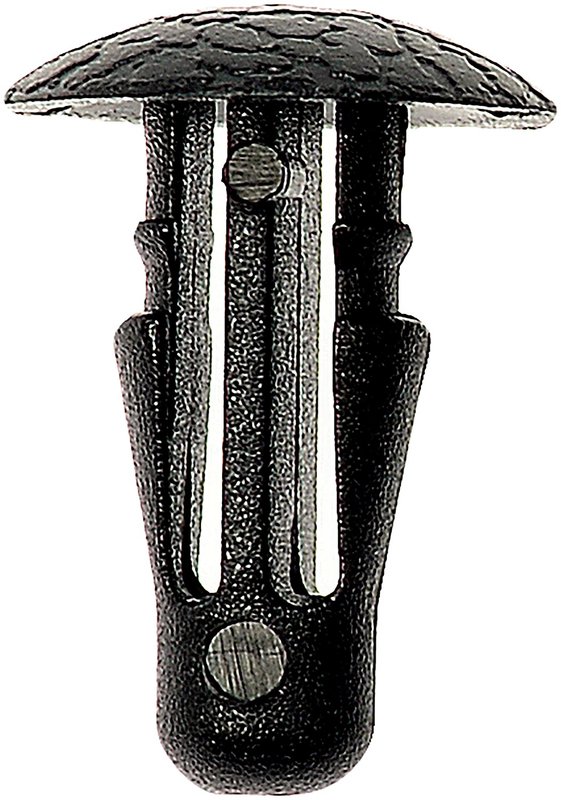

Dorman 963-116D Radiator Support Baffle Clip

Dorman 963-116D Radiator Support Baffle Clip

The Dorman 963-116D radiator support baffle clip is a nylon retainer built to match the function and versatility of the original equipment clip. It is used in radiator seal and support baffle applications on select Nissan models, including Pathfinder, Pulsar NX, Sentra, 200SX, Maxima, Pickup, 280ZX, and 810.

Key Features

• Constructed from nylon for dependable retention in cooling-system trim and support applications
• Black finish for a factory-style appearance
• Head diameter: 11 mm; outside diameter: 10.9 mm; shaft diameter: 5.89 mm
• Center groove diameter: 4.75 mm; overall length: 14.92 mm
• Direct replacement-style clip for radiator support baffle and radiator seal locations
• Part number 963-116D for easy identification during service and ordering

Detailed Description

Built from quality materials, this Dorman 963-116D retainer is made to perform the same basic fastening function as the original clip used on select Nissan cooling-system assemblies. The nylon construction helps provide consistent fitment where radiator seals, baffles, and related support pieces need secure retention. This part cross-references Remy (e.g., 12900, 14355) for the same application.

Compatible With 1987-1995 Nissan Pathfinder, left, lower, right, and upper radiator seal locations; 1987-1990 Nissan Pulsar NX, front and rear; 1987-1990 Nissan Sentra, front; 1980-1988 Nissan 200SX, front and rear; 1984-1985 Nissan Pickup, upper with air conditioning; 1981-1984 Nissan Maxima, front; 1980-1983 Nissan 200SX, front side door; 1979-1983 Nissan 280ZX, front, rear, and front side door; and 1981 Nissan 810, front. For Nissan Pathfinder and Nissan 280ZX service work, the 963-116D helps restore proper clip retention at the radiator support area.

What It Helps Address

• Loose or missing radiator support baffle clips
• Improperly retained radiator seals
• Broken nylon retainers from age or heat exposure
• Fitment issues when replacing worn factory-style clips
• Rattling or shifting support trim around the radiator area

Installation Notes and Tips

Verify the clip dimensions against the original retainer before installation, especially the shaft diameter, head diameter, and overall length. Confirm the vehicle position and application listed for your Nissan Pathfinder, 200SX, or other supported model before service. Inspect the mounting hole and surrounding panel for wear or damage so the new clip seats correctly.

Quality Assurance

Dorman manufactures this retainer from quality materials to provide the same function and versatility as the original equipment clip, supporting long service life in radiator seal and baffle applications.
