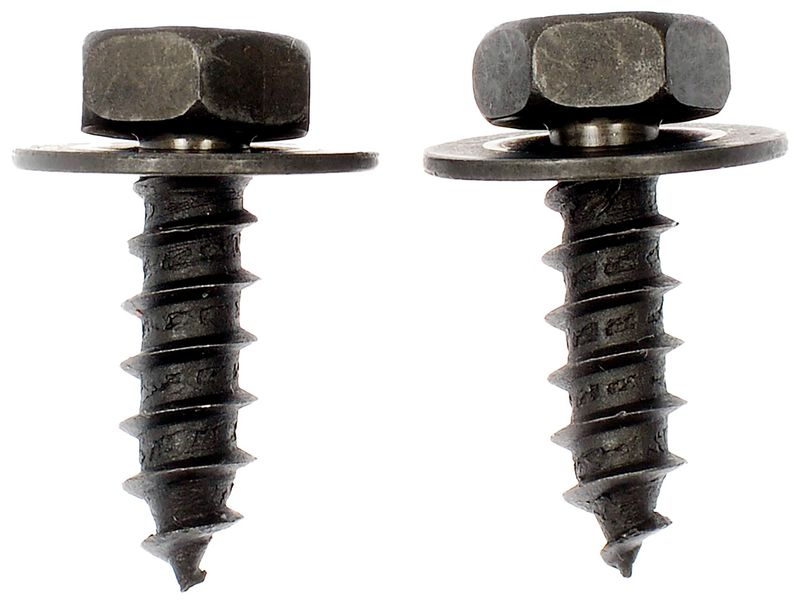

Dorman 963-147D Splash Shield Retainer - Front or Lower Front
| Brand | Dorman 963-147D |
|---|---|
| Position | Front and Lower Front |
| Material | Acero |
| Material | Steel |
| Head Diameter | 9.84 |
| Thread Direction | Clockwise |
| Thread Direction | En sentido horario |
| Head Shape | Hex |
| Head Shape | Hexagonal |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Shank Length | 2 |
| Finish | Black phosphate |
| Finish | Fosfato negro |
| Type | Lámina metálica |
| Type | Sheet metal |
| Heat Hardened | No |
| Heat Hardened | Non |
| Specialty | Oui |
| Specialty | Sí |
| Specialty | Yes |
| Self Drilling | No |
| Self Drilling | Non |
| Self Tapping | Oui |
| Self Tapping | Sí |
| Self Tapping | Yes |
| Thread Length | 20 |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard |
| Thread Type | Coarse |
| Thread Type | Grueso |
| Fits | Scion and Toyota · 12 vehicles |
Steel construction. Black phosphate finish helps resist corrosion.
Hex drive. Provides secure engagement for easier fastening.
Standard replacement. A sheet metal screw for general automotive fastening jobs.
Cross-references 25078 and 9015960498 for the same application. See all 2.
Dorman 963-147D Splash Shield Retainer
Dorman 963-147D is a metric steel splash shield retainer built for body hardware applications where a secure, corrosion-resistant fastener is needed. With a black phosphate finish, hex head, and coarse thread design, it is suited for retaining underbody and splash shield components on select Toyota and Scion applications.
Key Features
- Steel construction for automotive fastening applications
- Black phosphate finish for added surface protection
- Hex head and hex drive for straightforward tool engagement
- Metric M6 -1.0 thread size with coarse thread type
- Self-tapping sheet metal screw design
- Thread direction: clockwise
- Standard replacement hardware from Dorman
Product Details
This Dorman splash shield retainer is engineered as a body hardware fastener for securing splash shields and related panels. The M6 -1.0 metric sizing, 6 mm diameter, 20 mm thread length, and 2 mm shank length provide the dimensional profile needed for select lower front and front mounting points. Dorman 963-147D is listed for 2006-2014 Toyota RAV4, lower front, and 2004-2006 Scion xA, front. If you are searching for a Toyota RAV4 splash shield retainer or a Scion xA body fastener by part number, 963-147D is the reference to use.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Uses
- Loose or missing splash shield mounting points
- Damaged underbody fasteners on Toyota RAV4 lower front panels
- Front panel retention issues on Scion xA
- Corroded or stripped sheet metal screw hardware
- Replacement of worn body fasteners during panel service
Installation Notes
Verify thread size, head style, and mounting location before installation. Use the correct hex tool to avoid rounding the head, and confirm the fastener seats fully in the sheet metal or panel attachment point. For fitment-specific service, confirm the application matches 2006-2014 Toyota RAV4 lower front or 2004-2006 Scion xA front before ordering Dorman 963-147D.
Quality Assurance
Dorman supplies a broad range of automotive screws and fastening hardware in multiple sizes and thread styles, and this part follows that standard replacement approach for body hardware service.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2014 | Toyota | RAV4 | EV | Lower Front | Package Quantity: 2 |
| 2013 | Toyota | RAV4 | EV | Lower Front | Package Quantity: 2 |
| 2012 | Toyota | RAV4 | — | Lower Front | Package Quantity: 2 |
| 2011 | Toyota | RAV4 | — | Lower Front | Package Quantity: 2 |
| 2010 | Toyota | RAV4 | — | Lower Front | Package Quantity: 2 |
| 2009 | Toyota | RAV4 | — | Lower Front | Package Quantity: 2 |
| 2008 | Toyota | RAV4 | — | Lower Front | Package Quantity: 2 |
| 2007 | Toyota | RAV4 | — | Lower Front | Package Quantity: 2 |
| 2006 | Scion | xA | — | Front | Packaging Type: Clamshell |
| 2006 | Toyota | RAV4 | — | Lower Front | Package Quantity: 2 |
| 2005 | Scion | xA | — | Front | Packaging Type: Clamshell |
| 2004 | Scion | xA | — | Front | Packaging Type: Clamshell |
