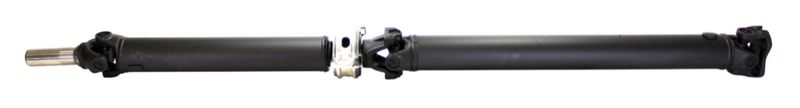

Dorman 966-539 Drive Shaft - Rear
| Brand | Dorman 966-539 |
|---|---|
| Position | Rear |
| Compressed Length | 80.375 |
| 10919 | Oui |
| 10919 | Sí |
| 10919 | Yes |
| 10920 | Oui |
| 10920 | Sí |
| 10920 | Yes |
| Wall Thickness | 0.083 |
| 11432 | 2 |
| End 1 Type | Slip yoke |
| End 1 Type | Yugo deslizante |
| End 2 Type | Bolt on |
| End 2 Type | Con perno |
| Shaft Material | Acero |
| Shaft Material | Steel |
| Pre-Greased | Oui |
| Pre-Greased | Sí |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Grease Fitting Included | Non |
| Universal Joints Included | Oui |
| Universal Joints Included | Sí |
| Universal Joints Included | Yes |
| Inboard Spline Quantity | 23 |
| CV Joints Included | No |
| CV Joints Included | Non |
| Axle Nut Included | No |
| Axle Nut Included | Non |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Fits | Toyota · 2 vehicles |
Complete assembly. Pre-balanced replacement with new yokes, tubes, CV joints, and universal joints.
Steel construction. 3 in. shaft diameter with 0.083 in. wall thickness for standard replacement service.
Ready to install. Pre-greased and phased at 90 degrees for streamlined driveline service.
Cross-references 371000W010 and 3711034010 for the same application. See all 2.
Overview
This Dorman drive shaft assembly is a direct-fit replacement for the rear driveline on compatible Toyota T100 applications. It is pre-balanced and built with new yokes, tubes, CV joints, and universal joints to simplify replacement and restore driveline function.
Key Features
- Complete drive shaft assembly for standard replacement service
- Pre-balanced for smoother operation after installation
- Steel shaft construction with 0.083 in. wall thickness
- Slip yoke and bolt-on end configuration
- Pre-greased and supplied with universal joints
- 80.375 in. overall length with phased construction
Detailed Description
Built for rear driveline service, this Dorman drive shaft assembly is engineered as a complete replacement unit rather than a rebuildable component. The steel shaft uses a 3 in. diameter and 23-spline inboard connection, with a slip yoke at one end and a bolt-on connection at the other. The assembly is pre-greased, phased at 90 degrees, and supplied with new yokes, tubes, CV joints, and universal joints for a ready-to-install solution. This part number 966-539 is listed for 1993-1994 Toyota T100 rear applications, and it cross-references Toyota 371000W010 and 3711034010 for the same application.
Common Uses
- Replacing a worn or damaged rear drive shaft
- Correcting vibration caused by driveline wear or imbalance
- Restoring torque transfer through the driveline
- Addressing noise from worn joints or shaft components
Installation Notes
Verify shaft length, end types, spline count, and flange configuration before installation. This assembly is specified at 80.375 in. overall length and is not adjustable, so matching the original driveline dimensions is important. Confirm the rear application and inspect related driveline mounting points, seals, and hardware condition during service.
Quality Assurance
Dorman supplies this drive shaft as a standard replacement assembly with new major components already installed. Part number 966-539 is built for direct replacement service on the listed Toyota T100 applications.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 1994 | Toyota | T100 | RWD | Manual | 3.0L | V6 | Rear | — |
| 1993 | Toyota | T100 | RWD | Manual | 3.0L | V6 | Rear | — |
