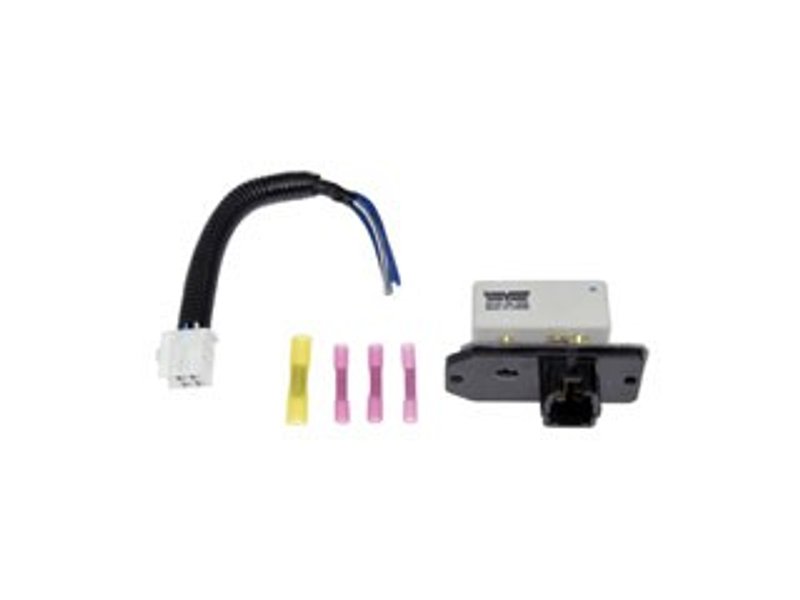

Dorman 973-461 HVAC Blower Motor Resistor Kit
| Brand | Dorman 973-461 |
|---|---|
| Connector Gender | Female |
| Connector Quantity | 1 |
| Gasket or Seal Included | No |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Package Contents | 1 Blower Motor Resistor; 1 Wire Harness |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Wire Quantity | 4 |
| Wiring Harness Included | Yes |
| Wiring Harness Length | 6 |
| Fits | Toyota · 5 vehicles |
Resistor kit. Includes a resistor and harness pigtail for a complete electrical repair.
Harness included. Comes with a wire harness to replace a damaged original connection.
Blade terminals. Uses blade-style terminals for a secure electrical connection.
Cross-references 3A1193, 8713802010 and JA1305 for the same application. See all 5.
Dorman 973-461 HVAC Blower Motor Resistor Kit
Restore proper blower motor speed control in your Toyota Corolla with this Dorman HVAC blower motor resistor kit. It includes the resistor and a replacement harness pigtail for vehicles where the original connector has overheated or corroded.
Compatible with 1998-2002 Toyota Corolla applications, this Dorman 973-461 kit addresses common electrical connection issues at the blower resistor circuit and supports reliable HVAC fan operation.
Key Features
- Direct replacement HVAC blower motor resistor kit for select Toyota Corolla models
- Includes a resistor and wire harness pigtail for connector repair
- 4-wire, 4-terminal design with blade terminals
- Female connector with male terminals for proper electrical mating
- 6-inch wiring harness length for service replacement
- 2 mounting holes for OE-style installation points
- Part number 973-461 for easy identification
Detailed Description
This Dorman blower motor resistor kit is built for 1998-2002 Toyota Corolla HVAC systems that need restoration after heat damage, corrosion, or connector wear. The resistor controls blower fan speeds, while the included harness pigtail helps repair damaged wiring at the connection point. If you are searching for a Toyota Corolla blower motor resistor kit, HVAC resistor connector repair, or Dorman 973-461 for 1998-2002 Corolla, this part matches the application details provided.
This part cross-references 3A1193 and 8713802010 for the same application.
What It Helps Fix
- Blower motor only working on certain speeds
- No cabin airflow from the HVAC fan
- Intermittent blower operation caused by a damaged resistor circuit
- Overheated or corroded original connector at the resistor
- Electrical resistance issues that affect fan speed control
Installation Notes and Tips
Inspect the blower resistor connector and surrounding wiring before installation. Replace any heat-damaged terminals or brittle insulation, and confirm the mounting points and terminal layout match the original part. Verify the HVAC system operates through all fan speeds after installation.
Quality Assurance
Dorman manufactures replacement electrical and HVAC components for vehicle-specific repair applications. Part number 973-461 is built as a service solution for select Toyota Corolla models where the original resistor or connector has failed.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2002 | Toyota | Corolla | N/A | — |
| 2001 | Toyota | Corolla | N/A | — |
| 2000 | Toyota | Corolla | N/A | — |
| 1999 | Toyota | Corolla | N/A | — |
| 1998 | Toyota | Corolla | N/A | — |
