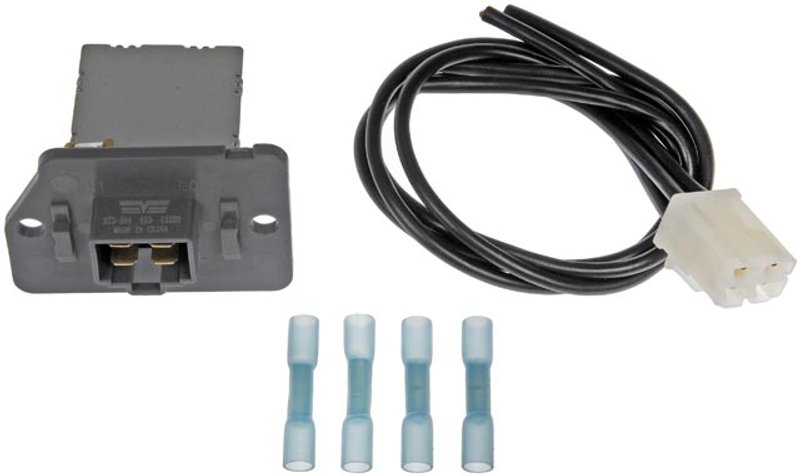

Dorman 973-504 HVAC Blower Motor Resistor Kit
Overview of Dorman HVAC Blower Motor Resistor Kit 973-504
The Dorman HVAC Blower Motor Resistor Kit 973-504 is designed to restore proper blower motor function in select Hyundai models. This kit includes a blower motor resistor and a wiring harness, engineered to ensure reliable electrical connections and consistent HVAC performance.
- Includes 1 blower motor resistor and 1 wiring harness
- Wiring harness length: 6 inches for optimal fit
- Blade terminal type with 4 male terminals
- Single female connector for secure connection
- Two mounting holes for stable installation
- Wiring harness included for direct replacement
- No mounting hardware or gasket included
Detailed Product Description
The Dorman 973-504 blower motor resistor kit is specifically designed for HVAC electrical systems in Hyundai vehicles such as the Elantra, Santa Fe, Sonata, Tiburon, and Tucson. The kit features a 6-inch wiring harness with four wires and a single female connector that mates with male blade terminals, ensuring a precise and secure electrical connection. The resistor itself mounts using two holes, providing a stable and vibration-resistant fit within the HVAC system. This kit replaces worn or faulty blower motor resistors to help maintain consistent fan speeds and proper climate control operation.
Compatible Hyundai Models and Common Applications
- Hyundai Elantra blower motor resistor replacement
- Hyundai Santa Fe HVAC blower motor repair
- Hyundai Sonata blower motor resistor kit installation
- Hyundai Tiburon blower motor electrical connector replacement
- Hyundai Tucson blower motor resistor troubleshooting
Installation Notes and Tips
- Ensure the vehicle ignition is off before installation
- Disconnect the battery to prevent electrical shorts
- Use the included wiring harness for a direct plug-and-play fit
- Secure the resistor using the two mounting holes to prevent movement
- Verify connector polarity: female connector mates with male terminals
Quality Assurance and Warranty Information
Dorman parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The 973-504 blower motor resistor kit undergoes rigorous quality control to ensure durability and reliable performance in Hyundai HVAC systems. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in materials and workmanship.
| Brand | Dorman |
| Part Number | 973-504 |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Gasket or Seal Included | No |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Package Contents | 1 Blower Motor Resistor; 1 Wire Harness |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Wire Quantity | 4 |
| Wiring Harness Included | Yes |
| Wiring Harness Length | 6 |
This part fits 24 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Hyundai | Tucson | N/A | HCC Code (Halla Climate Control) |
| 2008 | Hyundai | Tiburon | N/A | Compatible with vehicles equipped with manual air conditioning controls. |
| 2008 | Hyundai | Tucson | N/A | HCC Code (Halla Climate Control) |
| 2007 | Hyundai | Tiburon | N/A | Compatible with vehicles equipped with manual air conditioning controls. |
| 2007 | Hyundai | Tucson | N/A | HCC Code (Halla Climate Control) |
| 2006 | Hyundai | Elantra | N/A | Fits vehicles up to 10/31/06. |
| 2006 | Hyundai | Santa Fe | N/A | Exc. Automatic Climate Control |
| 2006 | Hyundai | Tiburon | N/A | Compatible with vehicles equipped with manual air conditioning controls. |
| 2006 | Hyundai | Tucson | N/A | HCC Code (Halla Climate Control) |
| 2005 | Hyundai | Elantra | N/A | Exc. Automatic Climate Control |
| 2005 | Hyundai | Santa Fe | N/A | Exc. Automatic Climate Control |
| 2005 | Hyundai | Sonata | N/A | Exc. Automatic Climate Control |
| 2005 | Hyundai | Tiburon | N/A | Compatible with vehicles equipped with manual air conditioning controls. |
| 2005 | Hyundai | Tucson | N/A | HCC Code (Halla Climate Control) |
| 2004 | Hyundai | Elantra | N/A | Exc. Automatic Climate Control |
| 2004 | Hyundai | Santa Fe | N/A | Exc. Automatic Climate Control |
| 2004 | Hyundai | Tiburon | N/A | Compatible with vehicles equipped with manual air conditioning controls. |
| 2003 | Hyundai | Elantra | N/A | Exc. Automatic Climate Control |
| 2003 | Hyundai | Santa Fe | N/A | Exc. Automatic Climate Control |
| 2003 | Hyundai | Tiburon | N/A | Compatible with vehicles equipped with manual air conditioning controls. |
| 2002 | Hyundai | Elantra | N/A | Exc. Automatic Climate Control |
| 2002 | Hyundai | Santa Fe | N/A | Exc. Automatic Climate Control |
| 2001 | Hyundai | Elantra | N/A | Exc. Automatic Climate Control |
| 2001 | Hyundai | Santa Fe | N/A | Exc. Automatic Climate Control |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
