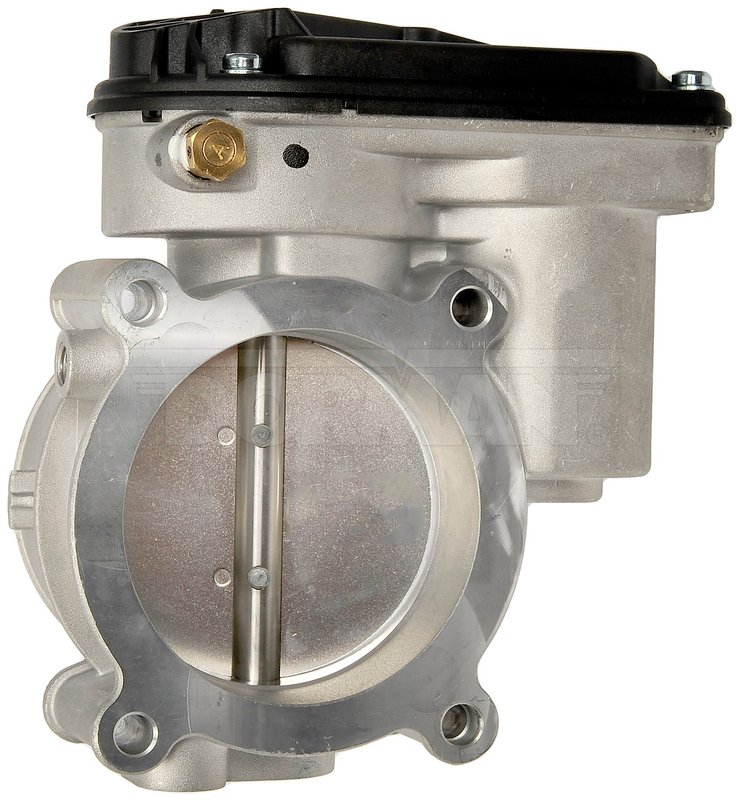

Dorman 977-328 Fuel Injection Throttle Body

OE FIX Throttle Body for Ford and Lincoln

Dorman 977-328 is a fuel injection throttle body built for select Ford and Lincoln applications with an integrated throttle position sensor. It addresses a common OE failure point by using an exclusive shaft seal to help block moisture and oil intrusion in the internal electronics.

Key Features

• Fuel injection throttle body with throttle position sensor included
• Gray finish with aluminum housing for a direct replacement-style appearance
• Male/pins connector with female socket electrical connection
• 6-terminal design for the listed applications
• OE FIX design focused on reducing repeat electronic throttle body failures
• Fits select Ford Edge, Explorer, F-150, Mustang, Transit, Taurus, Flex, and Lincoln MKX, MKS, MKZ, MKT, and Continental applications

Detailed Description

This Dorman 977-328 throttle body is engineered for drivers replacing a failed electronic throttle body on select Ford and Lincoln vehicles. The OE FIX design uses a shaft seal to help protect the internal electronics from moisture and oil contamination, a known cause of throttle body failure. It is a practical replacement for vehicles such as the Ford Edge, Ford Explorer, Ford F-150, Ford Mustang, and Lincoln MKX where throttle response and idle control depend on accurate airflow management.

This part cross-references Hitachi Automotive ETB0044 for the same application.

Common Problems It Can Help Solve

• Rough or unstable idle caused by throttle body electronic faults
• Throttle response issues from a worn or contaminated throttle body
• Check engine light conditions related to throttle position or airflow control
• Driveability problems linked to moisture or oil intrusion in the throttle body electronics
• Replacement needs after original equipment throttle body failure

Installation Notes and Tips

Verify connector style, terminal count, and engine application before installation. This throttle body is not adjustable and is not throttle body mounted. Installation hardware is not included, so reuse or source the required fasteners as needed. After installation, follow the vehicle manufacturer’s relearn or idle calibration procedure if required.

Quality Assurance

Dorman designs OE FIX replacement parts to address known failure points in original components. Part number 977-328 is built as a direct replacement-style throttle body for the listed Ford and Lincoln fitments, including 2011-2018 Ford Edge, 2011-2018 Ford Explorer, 2011-2017 Ford F-150, 2011-2017 Ford Mustang, 2013-2019 Ford Taurus, 2013-2019 Ford Flex, 2013-2016 Lincoln MKS, 2013-2016 Lincoln MKZ, 2011-2018 Lincoln MKX, 2013-2019 Lincoln MKT, 2015-2018 Ford Transit, 2015-2018 Ford Transit-150, 2015-2018 Ford Transit-250, 2015-2018 Ford Transit-350, 2015-2018 Ford Transit-350 HD, and 2017-2020 Lincoln Continental.
